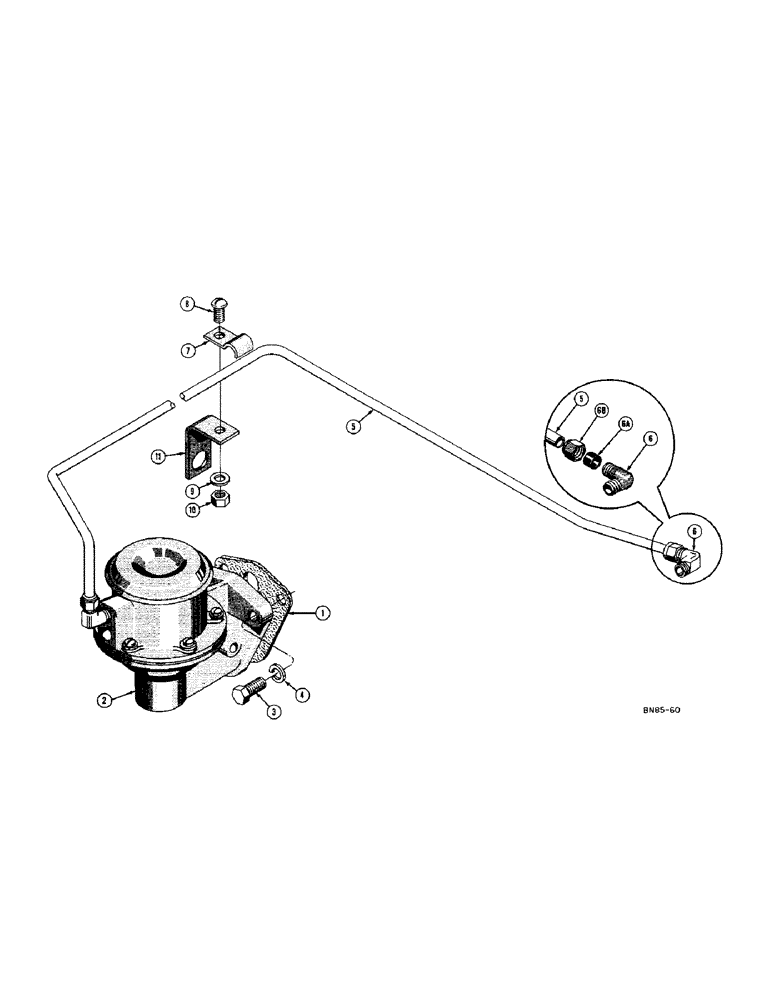

Запчасти Case 420C (028) - FUEL PUMP - GAS (02) - FUEL SYSTEM

1

G10050

GASKET - fuel pump to block (Use G46902)

1шт.

G46902

GASKET

- fuel, Serial Range: pump-block

1шт.

2

G45778

PUMP

- fuel

1шт.

3

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

G46289

LINE

- fuel, fuel, Serial Range: pump-carburetor

1шт.

6

222-619

ELBOW,90 Degree, 1/2"-24 x 1/8" NPT, Comp

- male, 90 degrees (5/16" JIC x 1/8" NPT)

2шт.

6a

222-653

SLEEVE,5/16" Tube, Comp

- 222-619 elbow

1шт.

6b

222-663

NUT,1/2"-24, 45 Degree Fl, Comp

NUT - 222-619 elbow

1шт.

7

G11359

CLAMP - fuel line

1шт.

8

169-76

SCREW - fillister head (#8 - 32 NC x 7/16")

1шт.

9

195-10

WASHER,#8

- plain (3/16" I.D. x 7/16" O.D. x 1/16" thick)

1шт.

10

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- Keps (#8 - 32 NC)

1шт.

11

G11358

BRACKET - mounting, fuel line clamp

1шт.
