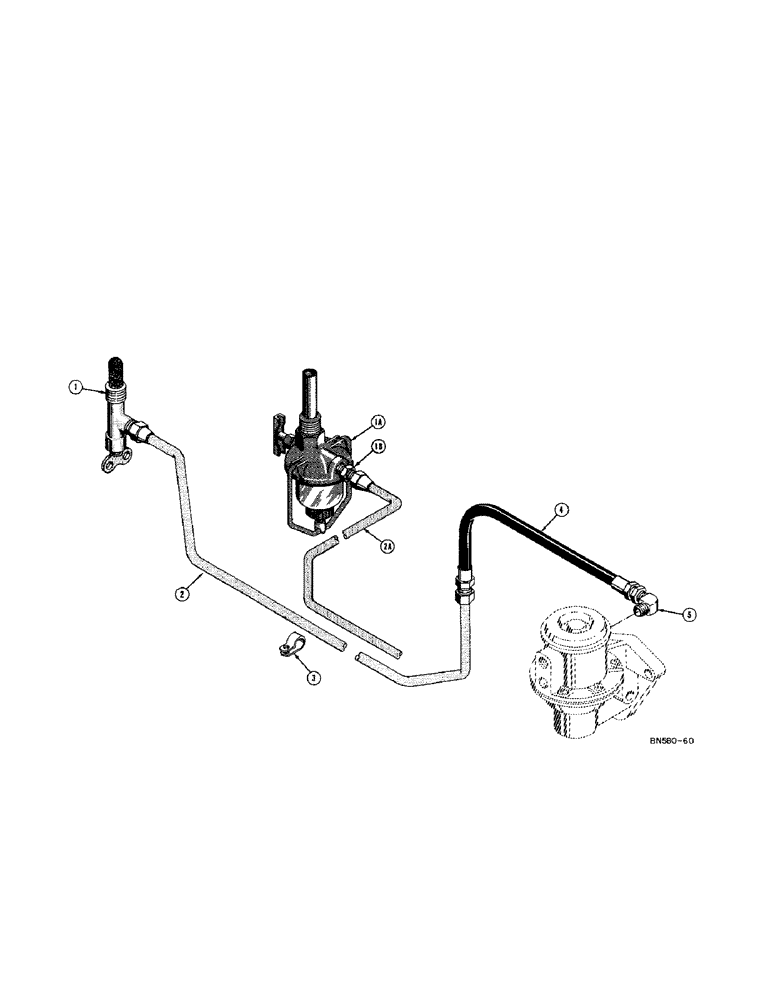

Запчасти Case 420C (028[1]) - FUEL LINES - GAS (02) - FUEL SYSTEM

1

O1972AB1

VALVE - fuel shut off (Used up to serial #3016354) See 33487

1шт.

1a

33487

STRAINER ELEMENT

STRAINER - fuel (See Figure 064 for breakdown) Used on serial #3016354 and after (See 01972ab1)

1шт.

1b

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - male (5/16" JIC x 1/8" NPT) Used on serial #3016354 and after

1шт.

2

D25469

TUBE - fuel line, tank to hose (Used up to serial #3016354) See D28153

1шт.

2a

D28153

TUBE - fuel line, tank to hose (Used on serial #3016354 and after) See D25469

1шт.

3

49832

CLAMP

- hose

1шт.

4

D25471

HOSE ASSY.

HOSE - fuel line, tube to fuel pump (1/4" I.D. x 12-1/2")

1шт.

5

222-1024

ELBOW,90 Degree, 1/2"-20 Inv Fl x 1/8" NPT

- male, 90 degrees (Fuel pump inlet) (5/16" JIC x 1/8" NPT)

1шт.
