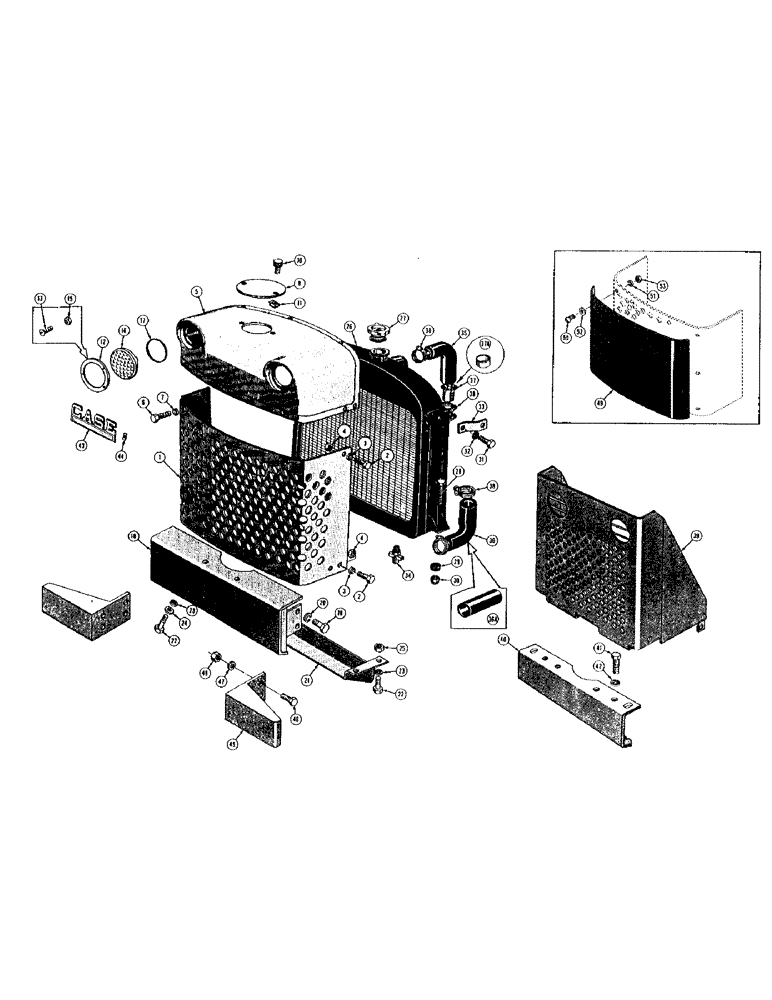

Запчасти Case 420C (094) - RADIATOR, THERMOSTAT, GRILLE CAP, AND GRILLE (01) - ENGINE

1

D26527

GRILLE - radiator

1шт.

2

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

6шт.

3

92-6

LOCK WASHER,3/8"

6шт.

4

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

6шт.

5

D21966

CAP - grille

1шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

8

RESERVED

1шт.

9

D21310

COVER - access, radiator cap

1шт.

10

G16716

X

SCREW - knurled head

2шт.

11

131-102

SPRING NUT,Ret, 1/4"-20

Tinnerman Ret, 1/4"-20

2шт.

12

A11275

RING

- headlight retaining

2шт.

13

173-249

SCREW

RHMS - zinc plated (#6 - 32 NC x 3/4")

6шт.

14

RESERVED

1шт.

15

129-15

NUT,#6-32

6шт.

16

A11280

LAMP

LIGHT - head, 12 volt (Mfr's #4411)

2шт.

17

A11276

GASKET

- headlight

2шт.

18

D27138

BUMPER - front

1шт.

19

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

20

92-8

LOCK WASHER,1/2"

4шт.

21

36979

SPACER

SUPPORT - bumper

1шт.

22

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

8шт.

23

92-8

LOCK WASHER,1/2"

8шт.

24

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

4шт.

25

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

6шт.

26

D21839

RADIATOR - gas models only

1шт.

27

D25826

CAP

- pressure, radiator (7PSI)

1шт.

26

D26522

RADIATOR - diesel models only

1шт.

27

D25826

CAP

- pressure, radiator (7PSI)

1шт.

28

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

29

D23003

SHOCK ABSORBER

WASHER - vibration

2шт.

30

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

2шт.

31

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

(Gas models only) Hex, 3/8"-16 x 5/8", G5, Full Thd

2шт.

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

(Diesel models only) not shown Hex, 3/8"-16 x 1 3/4", G5

2шт.

32

92-6

LOCK WASHER,3/8"

2шт.

D22988

WASHER

- vibration (Diesel models only) not shown

2шт.

33

D27033

SUPPORT - radiator (Gas models only)

2шт.

D27991

SUPPORT - radiator (Diesel models only) not shown

2шт.

34

217-92

COCK

DRAIN COCK - radiator

1шт.

35

D21961

HOSE,1.75" ID x 5.13", SAE 20R4

RADIATOR HOSE, , Inlet (Gas Models Only) 1.75" ID x 5.13", SAE 20R4

1шт.

D26526

HOSE,2.13" ID x 4.81", SAE 20R4

RADIATOR HOSE, , Inlet, Upper (Diesel Models Only) (Not Shown) 2.13" ID x 4.81", SAE 20R4

1шт.

36

D21960

HOSE,1.75" ID x 4.56", SAE 20R4

RADIATOR HOSE, , Outlet (Gas Models Only) 1.75" ID x 4.56", SAE 20R4

1шт.

36a

D26525

HOSE

- radiator outlet (Diesel models only)

1шт.

37

G11065

CASE

THERMOSTAT - diesel models only (See G37089 timing gear cover, thermostat, and water outlet assembly, Figure 054, to acquire part number of thermostat on models with replacement timing gear cover installed)

1шт.

G10235

THERMOSTAT

- gas models only (Use G11005)

1шт.

G11005

CASE

THERMOSTAT - gas models only

1шт.

37a

G49625

SUPPORT

SLEEVE - thermostat retaining (Diesel models only)

1шт.

38

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

(5 required on gas models, 6 required on diesel models) #36, 1.81/2.75 Type F Worm

5-6шт.

39

D27231

GUARD - brush (Not applicable on loader models) optional equipment

1шт.

40

D23232

BUMPER - front, used with brush guard (Not applicable on models with crankcase guards and front weights) optional equipment

1шт.

D23230

PLATE - mounting, brush guard (Forestry model) not shown

1шт.

41

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

42

92-8

LOCK WASHER,1/2"

4шт.

43

A11320

PLATE

NAME PLATE - Case

1шт.

44

A11319

X

CLIP - retainer, name plate

2шт.

205-4

X

PLUG - button (7/32" dia.) not shown

2шт.

45

D23396

EXTENSION - bumper (Optional equipment)

2шт.

46

14-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

HHCS - 1/2" - 13 NC x 1-1/2"

8шт.

47

92-8

LOCK WASHER,1/2"

8шт.

48

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

8шт.

49

D11170M

SCREEN - grille (Optional equipment)

1шт.

50

75-49

RHMS - 1/4" - 20 NC x 1/2"

8шт.

51

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

52

95-4

WASHER,1/4"

- standard wrot (5/16" I.D. x 3/4" O.D. x 1/16" thick)

8шт.

53

25-104

NUT,1/4"-20, G5

8шт.
