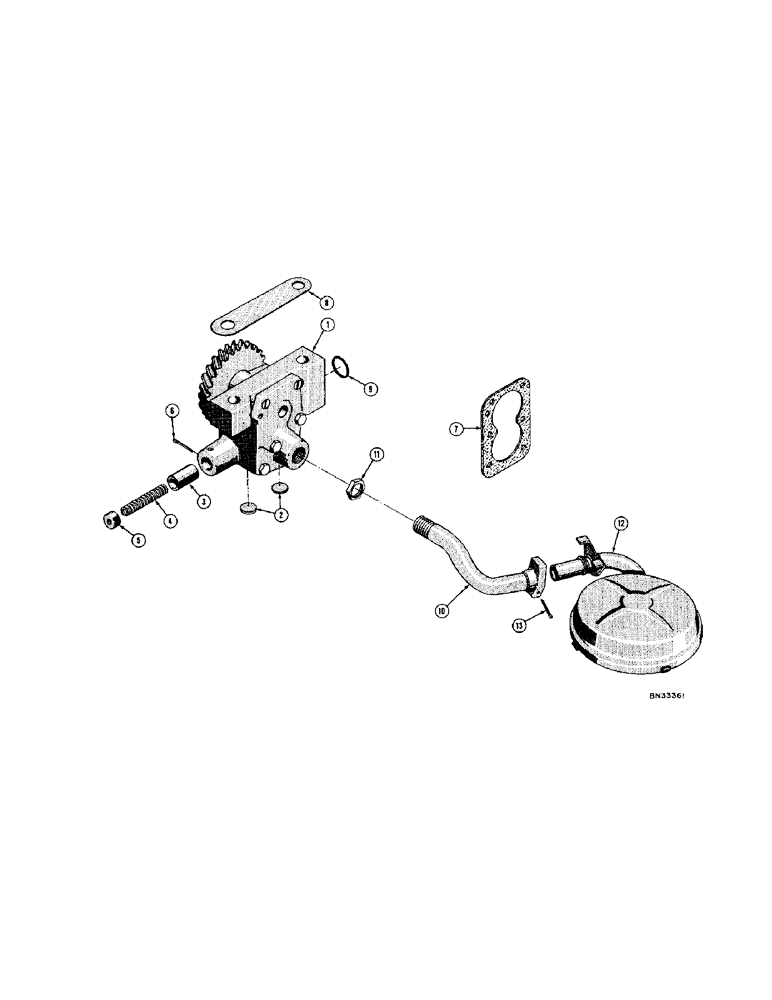

Запчасти Case 420C (062) - ENGINE OIL PUMP - DIESEL (01) - ENGINE

1

G11836

SPARE PART PUMP - oil, engine (Includes ref. #2 thru #7) Use G37070

1шт.

1

G37070

X

PUMP - oil, engine (See G11836)

1шт.

1

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

1

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

2

VT3356

SPARE PART PLUG - oil pump body (1/2" dia. Hubbard)

2шт.

3

VT3298

X

VALVE - relief, oil pressure

1шт.

4

G48500

SPRING

SPRING - relief valve

1шт.

5

VT3221

X

RETAINER - relief valve spring

1шт.

6

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

7

G46852

GASKET

GASKET - pump body

1шт.

8

G11337

SHIM,.002" Thk

SHIM, , Pump to bearing cap .002" Thk

1шт.

G11338

SHIM,.005" Thk

SHIM, , Pump to bearing cap .005" Thk

1шт.

9

O8416AB

X

SEAL - "O"ring, port hole

1шт.

10

G45766

PIPE, EXHAUST SYSTEM

PIPE, EXHAUST PIPE -, Serial Range: float-pump

1шт.

11

223-207

LOCK NUT

NUT - lock (3/8" P.T. Conduit)

1шт.

12

G45060

FLOAT

FLOAT - oil pan

1шт.

13

132-50

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.
