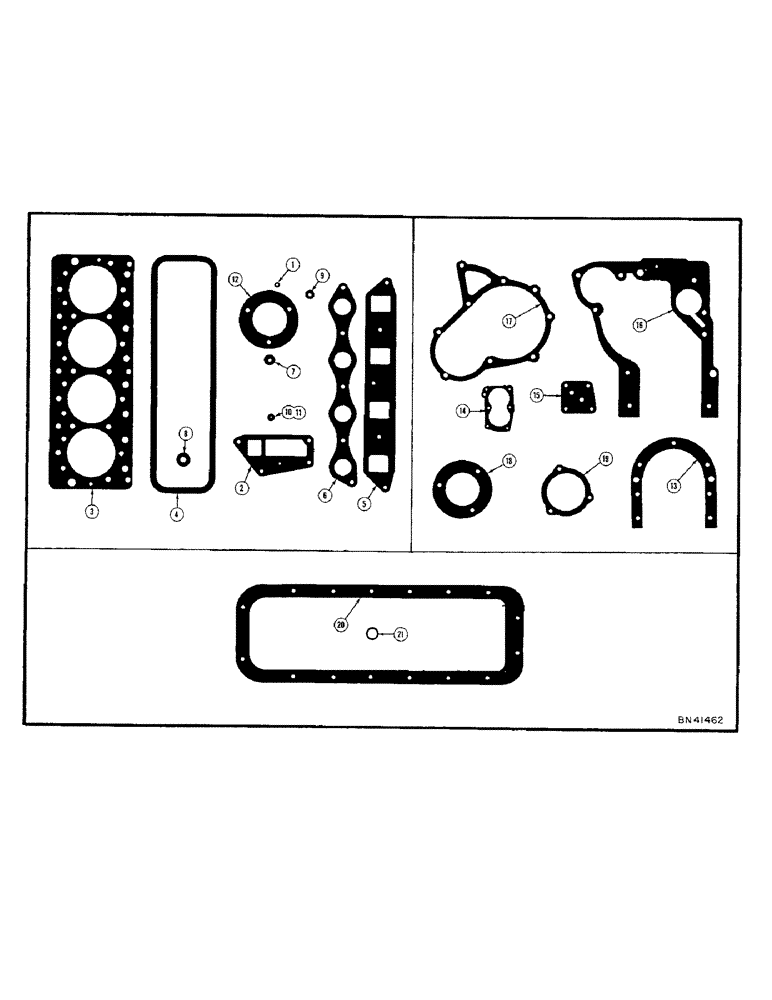

Запчасти Case 420C (058[1]) - SERVICE GASKET SETS - DIESEL (01) - ENGINE

G11949

X

SET - gasket, valve grind (use G37093)

1шт.

G37093

X

SET - gasket, valve grind

1шт.

1

G46851

SEAL

GASKET - valve stem

8шт.

2

G46858

GASKET

- water inlet

1шт.

3

G46865

X

GASKET - head (G11949 set) Use A35196

1шт.

A35196

X

GASKET - head (G37093 set)

1шт.

4

G46866

GASKET

- valve cover

1шт.

5

G46871

GASKET

- intake manifold

1шт.

6

G46872

MANIFOLD GASKET

- exhaust manifold

1шт.

7

G49068

GASKET

- seat, injector nozzle

4шт.

8

G46867

GROMMET

- cylinder head cover stud

2шт.

9

G49407

WASHER,9.63mm ID x 12.83mm OD x 1.65mm Thk

WASHER - connector, fuel line

8шт.

10

222-101

SLEEVE,3/16" Tube

- fuel line (3/16" O.D. tube)

4шт.

11

222-103

SLEEVE,5/16" Tube

Fuel line 5/16" Tube

4шт.

12

G46875

GASKET

- water pump

1шт.

G11950

GASKET

SET - gasket, cylinder block

1шт.

13

G46802

GASKET

- crankshaft rear oil seal retainer

1шт.

14

G46852

GASKET

- oil pump body

1шт.

15

G46854

GASKET

- oil filter

1шт.

16

G46857

GASKET

- timing gear cover

1шт.

17

G46859

GASKET

- pump drive cover to timing gear cover

1шт.

18

G46875

GASKET

- water pump

1шт.

19

VT3691

X

GASKET - generator bracket support

1шт.

G11951

X

SET - gasket, oil pan (G11901 and G37078 oil pans only - when stock is exhausted, order A35299)

1шт.

A35299

KIT

SET - gasket, oil pan (G11901, G37078 and A35292 oil pans - See G11951)

1шт.

20

G46864

GASKET - oil pan (G11951 gasket set) See A35273

1шт.

20

A35273

GASKET

- oil pan (A35299 gasket set) See G46864

1шт.

21

VT4520

X

GASKET - drain plug

1шт.
