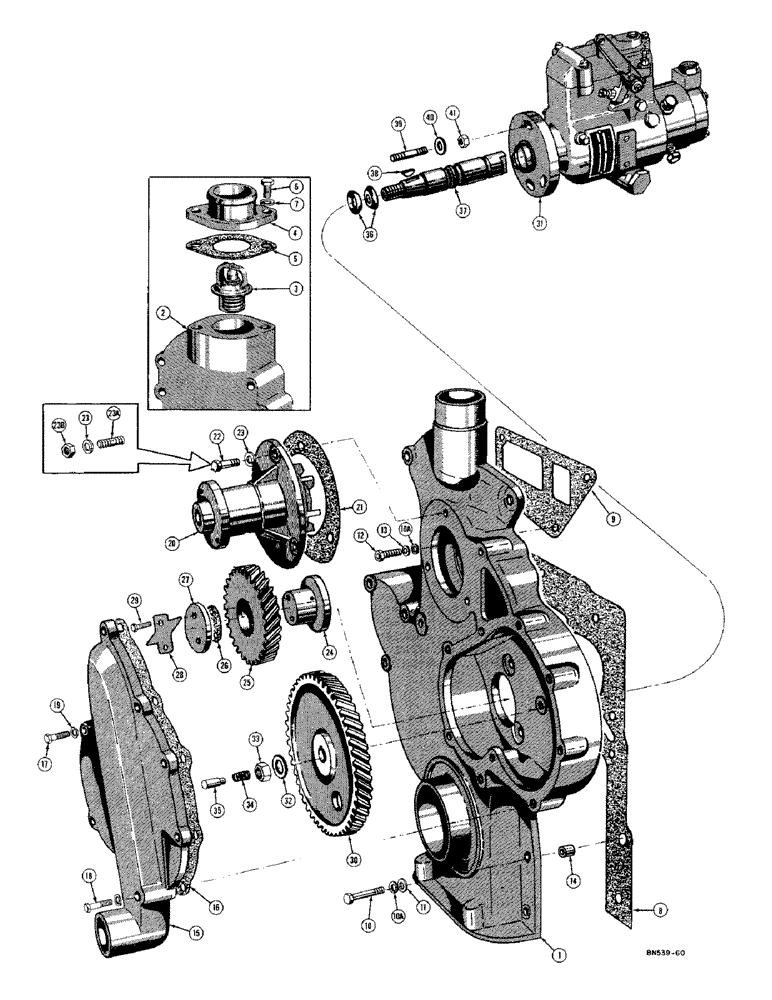

Запчасти Case 420C (054) - TIMING GEAR COVER AND FUEL INJECTION PUMP DRIVE - DIESEL (01) - ENGINE

1

G2074

SPARE PART COVER - timing gear, original equipment (Use G37089)

1шт.

G37089

SPARE PART TIMING GEAR COVER, THERMOSTAT, AND WATER OUTLET ASSEMBLY - replacement (See G2074)

1шт.

2

G2143

SPARE PART COVER - timing gear (See G2074)

1шт.

VT3373

SPARE PART SEAL - oil, crankshaft (Front) not shown (See Figure 046)

1шт.

VT3380

SPARE PART SEAL - dust, fan pulley (Not shown) See Figure 046

1шт.

G11204

STUD

STUD - fuel injection pump to timing gear cover (See ref. #39)

3шт.

3

G45788

SPARE PART THERMOSTAT

1шт.

The thermostat listed above is used with G37089 timing gear cover, thermostat and water outlet assembly only. For the part number of the thermostat used when G2074 timing gear cover is used, refer to Figure 094, Ref. 37.

1шт.

4

G2144

FITTING

OUTLET - water

1шт.

5

G46907

GASKET

GASKET - water outlet

1шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

7

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

2шт.

8

G46857

GASKET

GASKET - timing gear, Serial Range: cover-block

1шт.

9

G46858

GASKET

GASKET - timing gear, Serial Range: cover-head

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - 3/8" - 16 NC x 1-1/2"

1шт.

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

195-22

WASHER

WASHER - plain (3/8" I.D. x 3/4" O.D. x 5/64" thick)

2шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4" (2 used with G2074 cover; 3 used with G2143 cover

2-3шт.

10a

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

10шт.

11

195-25

WASHER,3/8"

WASHER - plain (13/32" I.D. x 13/16" O.D. x 5/64" thick) 13-614 cap screw

2шт.

12

G49083

BOLT

BOLT - drilled, timing gear, Serial Range: cover-head

1шт.

13

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

14

VT4535

X

RING - dowel, Serial Range: cover-block

2шт.

15

G2077

COVER ASSY

COVER - pump drive

1шт.

16

H46859

GASKET - pump drive cover to timing gear cover

1шт.

17

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, Hex, 3/8"-16 x 1", G5, Full Thd

8шт.

18

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

1шт.

19

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

9шт.

20

G11939

PUMP

PUMP - water (See Figure 058 for breakdown)

1шт.

20

A146584GV

WATER PUMP

Value, Water Pump Assy.

1шт.

20

A146584R

REMAN-WATER PUMP

Reman For New P/N G11939, Pump

1шт.

20

A146584C

CORE-WATER PUMP

Return Part Number

1шт.

20

A48363

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

20

A48323

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

21

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

22

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, (Original equipment - for service use VT4512 stud and 25-106 nut) Hex, 3/8"-16 x 3/4", G5, Full Thd

3шт.

23

92-6

LOCK WASHER,3/8"

LOCK WASHER, 3/8"

3шт.

23a

VT4512

X

STUD - water pump to timing gear cover (3/8" - 16 NC x 1-1/4") service replacement (See 13-612, ref. #22)

3шт.

23b

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8 - 16 NC) VT4512 stud

3шт.

24

G11726

HUB

HUB - idler gear, fuel injection pump

1шт.

25

G11852

GEAR

GEAR - idler, injection pump

1шт.

26

G11728

SHIM,.005" Thk

SHIM, , Idler gear .005" Thk

1шт.

G11729

SHIM,.006" Thk

SHIM, , Idler gear .006" Thk

1шт.

G11730

SHIM,.007" Thk

SHIM, , Idler gear .007" Thk

1шт.

G11731

SHIM,.009" Thk

SHIM, , Idler gear .009" Thk

1шт.

27

G11732

PLATE

PLATE - thrust, idler gear

1шт.

28

G11746

PLATE

PLATE - lock, idler gear

1шт.

29

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

BOLT, Hex, 3/8"-16 x 2", G5

2шт.

30

G2076

GEAR

GEAR - injection pump drive

1шт.

31

G37055

SPARE PART PUMP - fuel injection (See Figure 068 for breakdown)

1шт.

32

G49081

WASHER

WASHER - pump drive shaft nut

1шт.

33

25-159

JAM NUT,Jam, 9/16"-18, G5

NUT - hex., jam (9/16" - 18 NF)

1шт.

34

G48502

SPRING

SPRING - thrust, pump drive shaft

1шт.

35

G47128

PLUNGER

PLUNGER - thrust, pump drive shaft

1шт.

36

G46862

X

SEAL - pump drive shaft (Use R14711)

2шт.

R14711

SEAL

SEAL - pump drive shaft (See G46862)

2шт.

37

G47113

SHAFT

SHAFT - pump drive

1шт.

38

126-12

WOODRUFF KEY,#6, 5/32" x 5/8"

WOODRUFF KEY, #6, 5/32" x 5/8"

1шт.

39

G11207

BOLT

STUD - injection pump to timing gear cover (3/8" x 1-7/16")

3шт.

40

VT3695

X

WASHER - clipped, pump mounting stud

3шт.

41

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC)

3шт.
