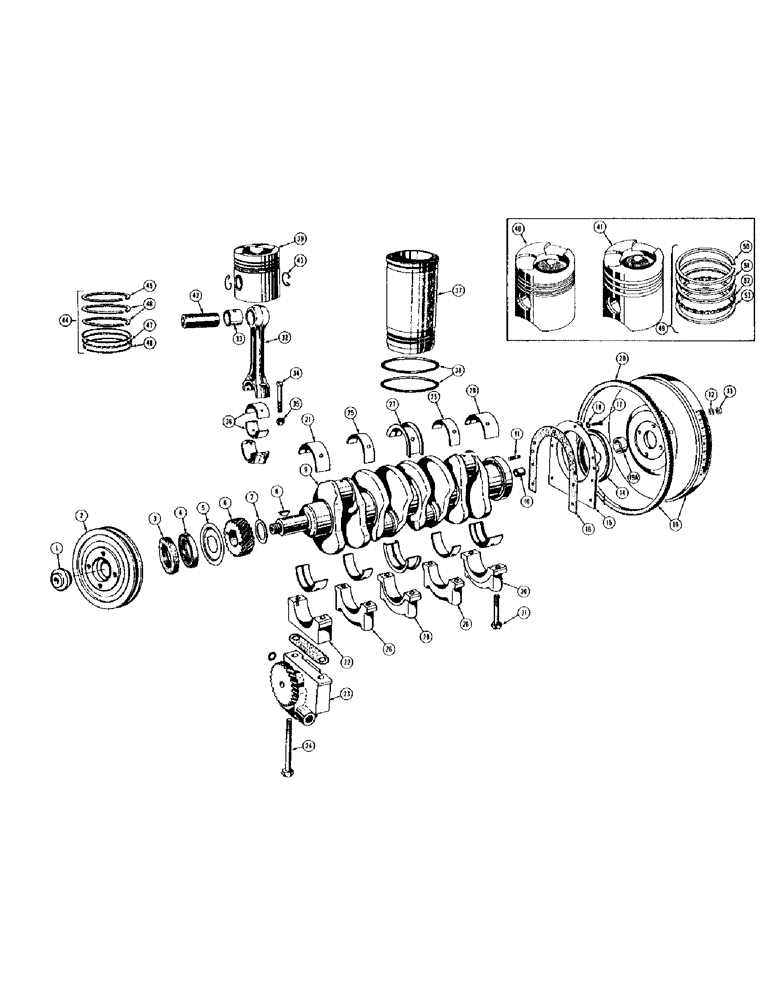

Запчасти Case 420C (046) - FLYWHEEL, CRANKSHAFT, AND PISTONS - DIESEL (01) - ENGINE

1

G11263

NUT

NUT - crankshaft pulley (When stock is exhausted, order A35673)

1шт.

A35673

NUT

NUT - crankshaft pulley (Not shown)

1шт.

VT3366

X

COLLAR - starting jaw (Used with G11263 nut only) not shown

1шт.

2

G11342

X

PULLEY - fan and generator drive

1шт.

3

VT3380

SPARE PART SEAL - dust, fan pulley

1шт.

4

VT3373

SPARE PART SEAL - oil, crankshaft (Front)

1шт.

5

VT3220

X

SLINGER - oil, crankshaft front bearing

1шт.

6

VT3225

X

GEAR - crankshaft (24T)

1шт.

7

VT3377

X

SPACER - thrust, crankshaft

1шт.

8

VT3397

SPARE PART KEY - pulley and gear to crankshaft (1/4" x 1-1/16") Use 126-216

2шт.

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - pulley and gear to crankshaft (1/4" x 1-1/16")

2шт.

9

G11889

CRANKSHAFT

CRANKSHAFT - engine

1шт.

10

VT3370

X

BUSHING BUSHING - pilot, crankshaft

1шт.

11

VT4513

X

STUD - flywheel to crankshaft (7/16" x 1-3/4")

4шт.

12

92-7

LOCK WASHER,7/16"

LOCK WASHER, 7/16"

4шт.

13

25-117

NUT,7/16"-20, G5

NUT - hex. (7/16" - 20 NF)

4шт.

14

G13811

RUBBER SEAL

SEAL - oil, crankshaft rear (Single lip) when stock is exhausted, order G13824

1шт.

G13824

RUBBER SEAL

SEAL - oil, crankshaft rear (Double lip) See G13811

1шт.

15

G2017

RETAINER

RETAINER - rear oil seal, crankshaft

1шт.

16

G46802

GASKET

GASKET - retainer, rear oil seal

1шт.

17

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

BOLT, Hex, 1/4"-20 x 1", G5

3шт.

18

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

7шт.

19

G11904

FLYWHEEL

1шт.

19a

VT3093

X

BEARING - pilot, clutch shaft

1шт.

20

G11710

GEAR

GEAR - ring, flywheel (135T)

1шт.

21

G11940

X

LINER - crankshaft front bearing, top and bottom half (Standard)

1шт.

G37005

KIT

LINER - crankshaft front bearing, top and bottom half (.002" undersize)

1шт.

G37006

X

LINER - crankshaft front bearing, top and bottom half (.010" undersize)

1шт.

G37007

KIT

LINER - crankshaft front bearing, top and bottom half (.020" undersize)

1шт.

G37008

X

LINER - crankshaft front bearing, top and bottom half (.030" undersize)

1шт.

22

G2126

CAP

CAP - bearing, crankshaft front

1шт.

23

G11836

SPARE PART PUMP - oil, engine (See Figure 062) Use G37070

1шт.

G37070

X

PUMP - oil, engine (See Figure 062)

1шт.

AR38372

REMAN-ENG OIL PUMP

REMAN-ENGINE OIL PUMP Remanufactured Oil Pump; For N.A. only

1шт.

AC38372

CORE-ENGINE OIL PUMP

CORE-ENGINE OIL PUMP Return number - For N.A. only

1шт.

24

G49077

BOLT

BOLT - place, oil pump and front bearing cap (1/2" x 5-1/8")

2шт.

25

G11942

JOURNAL

LINER - crankshaft intermediate bearing, top and bottom half (Standard)

2шт.

G37013

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.002" undersize)

2шт.

G37014

X

LINER - crankshaft intermediate bearing, top and bottom half (.010" undersize)

2шт.

G37015

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.020" undersize)

2шт.

G37016

KIT

LINER - crankshaft intermediate bearing, top and bottom half (.030" undersize)

2шт.

26

G2128

CAP

CAP - bearing, crankshaft intermediate

2шт.

27

G11941

SLEEVE CYLINDER

LINER - crankshaft center bearing, top and bottom half (Standard)

1шт.

G37009

KIT

LINER - crankshaft center bearing, top and bottom half (.002" undersize)

1шт.

G37010

X

LINER - crankshaft center bearing, top and bottom half (.010" undersize)

1шт.

G37011

KIT

LINER - crankshaft center bearing, top and bottom half (.020" undersize)

1шт.

G37012

KIT

LINER - crankshaft center bearing, top and bottom half ).030" undersize)

1шт.

28

G2127

CAP

CAP - bearing, crankshaft center

1шт.

29

G11943

X

LINER - crankshaft rear bearing, top and bottom half (Standard)

1шт.

G37017

KIT

LINER - crankshaft rear bearing, top and bottom half (.002" undersize)

1шт.

G37018

X

LINER - crankshaft rear bearing, top and bottom half (.010" undersize)

1шт.

G37019

X

LINER - crankshaft rear bearing, top and bottom half (.020" undersize)

1шт.

G37020

KIT

LINER - crankshaft rear bearing, top and bottom half (.030" undersize)

1шт.

30

G2129

CAP

CAP - bearing, crankshaft rear

1шт.

31

G49078

SPARE PART BOLT - place, bearing cap (1/2" x 4-1/2")

8шт.

32

G11847

ROD

ROD - connecting

4шт.

33

G49659

BEARING,30.94mm ID x 33.47mm OD x 31.75mm W

BUSHING - wrist pin (Use G11953)

1шт.

34

G49064

STEP BOLT

BOLT - connecting rod cap

2шт.

35

G49060

NUT

NUT - connecting rod cap bolt (3/8" - 24 NF)

2шт.

G11953

BUSHING

SET - bushing, wrist pin (Set of 4)

1шт.

36

G11944

BUSHING

LINER - connecting rod bearing, top and bottom half (Standard)

4шт.

G37021

X

LINER - connecting rod bearing, top and bottom half (.002" undersize)

4шт.

G37022

X

LINER - connecting rod bearing, top and bottom half (.010" undersize)

4шт.

G37023

X

LINER - connecting rod bearing, top and bottom half (.020" undersize)

4шт.

G37024

X

LINER - connecting rod bearing, top and bottom half (.030" undersize)

4шт.

G37042

SPARE PART SET - sleeves and pistons, matched set of 4 (Includes pistons, sleeves, "O"rings, piston rings, wrist pins, and retaining rings) Use G37064

1шт.

37

G2110

SLEEVE

SLEEVE - cylinder (3-3/16" bore)

4шт.

38

G46888

O-RING,3.737" ID x 3.943" OD

SEAL - "O"ring, cyliner sleeve

8шт.

39

G2065

PISTON - 3-3/16" bore, 4 groove (Used before engine serial no. 613TO6072) Use G37064 set of 4 pistons and sleeves if all G2065 pistons are being replaced (See G2137)

4шт.

When replacing individual piston in engines before engine S/N 613TO6072, use G2065. In engines S/N 613TO6072 and after, use G37063 set.

1шт.

40

G2135

PISTON - 3-3/16" bore, 4 groove (Used on engine serial no. 613TO6072 and after) Use G37063

4шт.

When replacing individual piston in engines before engine S/N 613TO6072, use G2065. In engines S/N 613TO6072 and after, use G37063 set.

1шт.

41

G2137

X

4шт.

When replacing individual piston in engines before engine S/N 613TO6072, use G2065. In engines S/N 613TO6072 and after, use G37063 set.

1шт.

G11954

X

SET - wrist pin

1шт.

42

G49607

X

PIN - wrist (Use G11954)

4шт.

43

G46702

RING, LOCKING

RING, LOCK RING - retaining, wrist pin

8шт.

44

G11938

SET OF RINGS

SET - piston ring, chrome (4 groove piston) See G37075

1шт.

45

G4813

SPARE PART RING - top, 4 groove piston

4шт.

46

G4812

SPARE PART RING - compression, 4 groove piston

8шт.

47

G47133

SPACER - oil ring rail, 4 groove piston

4шт.

48

G47134

SPARE PART RAIL - oil ring, 4 groove piston

8шт.

49

G37075

RING

SET - piston ring, chrome (3 groove piston) See G11938

1шт.

50

G4819

RING

RING - top, 3 groove piston

4шт.

51

G4817

RING

RING - compression, 3 groove piston

4шт.

52

G47174

SPRING

SPACER - oil ring rail, 3 groove piston

4шт.

53

G47155

RAIL

RAIL - oil ring, 3 groove piston

8шт.

G37064

SPARE PART SET - sleeves and pistons, matched set of 4 (Includes 3 groove pistons, sleeves, "O"rings, piston rings, wrist pins and retaining rings) See G37042 and G37063

1шт.

G37063

X

SET - sleeve and piston (Includes 1-3 groove piston with rings and matched sleeve) Use for individual piston replacement in engines serial no. 613TO6072 and after only (See G37064)

4шт.
