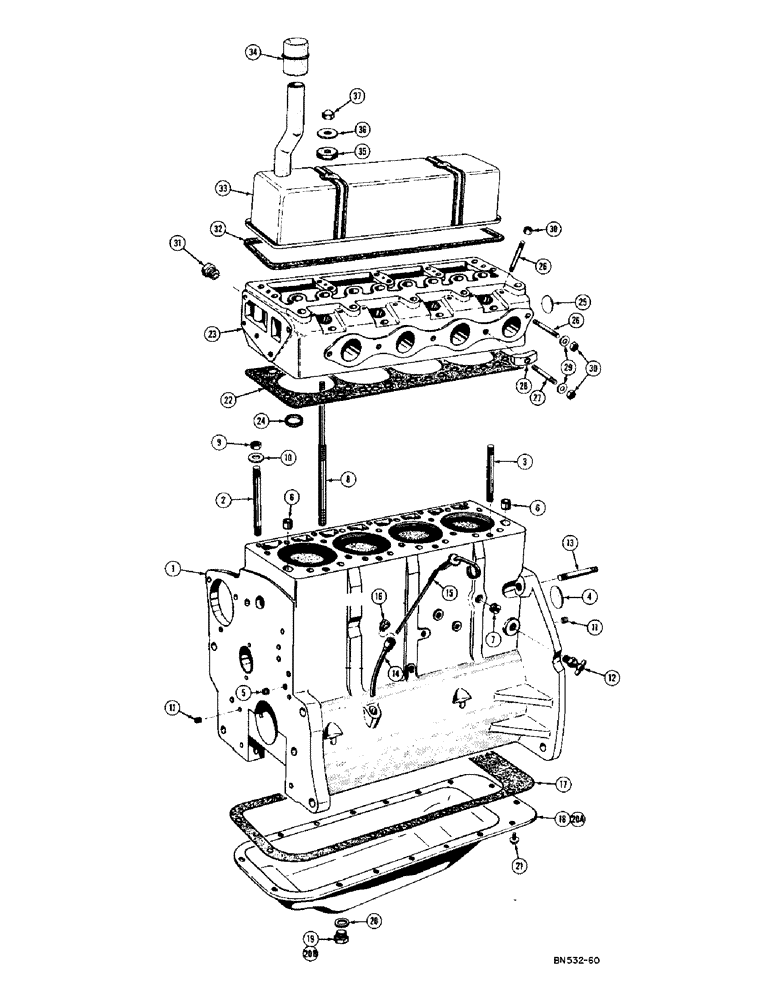

Запчасти Case 420C (042) - ENGINE BLOCK AND RELATED PARTS - DIESEL (01) - ENGINE

1

G10509

1шт.

SHORT BLOCK ASSEMBLY - includes stripped block, cylinder liners, packings, pistons, rings, crankshaft, gear cover assembly, camshaft, front end plate, timing gears, filler blocks, studs, nuts, screws, washers, plugs, lockwires, head, oil pump, and connecting rods (See G11933)

1шт.

G11933

STRIPPED BLOCK ASSEMBLY - includes block, Hubbard plugs, bearing caps, screws, pins, washers, studs, oil gauge, rod support, plug spacers, main bearings, lockwires, copper washers, camshaft bearings, and gaskets (See G10509)

1шт.

G2129

CAP

- bearing, crankshaft front (Not shown, See Figure 046)

1шт.

G2127

CAP

- bearing, crankshaft center (Not shown, See Figure 046

1шт.

G2128

CAP

- bearing, crankshaft intermediate (Not shown, See Figure 046)

2шт.

G2129

CAP

- bearing, crankshaft rear (Not shown, See Figure 046)

1шт.

G49077

BOLT

- place, oil pump and front bearing cap (1/2" x 5-1/8") not shown, See Figure 046

2шт.

G49078

BOLT - place, bearing cap (1/2" x 4-1/2") not shown, See Figure 046

8шт.

G11936

BUSHING - camshaft (Set of 5) not shown, See Figure 052

1шт.

2

G49507

X

STUD - cylinder head, original equipment (1/2" x 5-5/8") for service use A35371

11шт.

A35371

BOLT

- cylinder head, replacement (1/2" x 5") See G49507 (Not shown)

11шт.

G49512

STUD - cylinder head, original equipment (1/2" x 6") for service use A35372 bolt

2шт.

A35372

BOLT (SPREADER)

BOLT - cylinder head, replacement (1/2" x 5-1/2") See G49512 (Not shown)

2шт.

3

G49506

STUD - cylinder head, original equipment (1/2" x 4") for service use A35370 bolt

4шт.

A35370

BOLT

BOLT - cylinder head, replacement (1/2" x 3-1/4") See G49506 (Not shown)

4шт.

4

VT3398

X

PLUG - rear, Hubbard (2-1/8" dia.)

1шт.

5

G49070

PLUG

- drilled pipe, front of block (1/4" NPT))

1шт.

6

G49608

RING

- dowel, top of block

2шт.

7

221-32

PLUG,Sq Soc, 3/8"-18 NPTF

- pipe, countersunk square head (3/8" NPT)

1шт.

8

G49511

STUD

- valve cover

2шт.

9

VT3361

X

NUT - cylinder head stud

19шт.

10

G49404

WASHER

- cylinder head stud

19шт.

11

VT3395

X

PLUG - pipe, hex., socket head (1/4" NPT)

2шт.

12

VT2784

X

DRAIN COCK - engine block (When stock is exhausted, order 217-103)

1шт.

217-103

COCK, DRAIN

DRAIN COCK - engine block (See VT2784)

1шт.

13

VT3531

X

STUD - engine to clutch housing (5/8" x 3")

2шт.

14

G45139

BRACKET

SUPPORT - dipstick

1шт.

15

G37037

DIPSTICK

- oil level

1шт.

16

G46892

OIL SEAL

- rubber, dipstick

1шт.

17

G46864

GASKET - oil pan (G11901 and G37078 oil pans only - when stock is exhausted, order A35273)

1шт.

A35273

GASKET

- oil pan (G11901, G37078 and A35292 oil pans - See G46864)

1шт.

18

G11901

PAN - oil (Original equipment on engines up to serial #613TO8011) Use A35292

1шт.

19

VT4521

X

PLUG - drain, oil pan (7/8" NF thread)

1шт.

20

VT4520

X

GASKET - VT4521 drain plug

1шт.

20a

G37078

PAN - oil (Original equipment on engines serial #613TO8011 and after) Use A35292

1шт.

20b

G45786

PLUG

- drain, oil pan (3/8" NPT) includes gasket

1шт.

20a

A35292

X

PAN - oil (Replacement) See G11901 and G37078

1шт.

20b

G45786

PLUG

- drain, oil pan (3/8" NPT) includes gasket

1шт.

21

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - attaching, oil pan (5/16" - 18 NC x 7/8")

18шт.

22

G46865

X

GASKET - head to block (Early production) Use A35196

1шт.

G46906

X

GASKET - head to block (Late production) Use A35196

1шт.

A35196

X

GASKET -, Serial Range: head-block

1шт.

23

G11908

HEAD - cylinder

1шт.

G49083

BOLT

- special, drilled (Not shown, See Figure 054)

1шт.

193-77

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, (Not shown, See Figure 054) Int Tooth, 1/2"

1шт.

G11724

LINER

- nozzle holder (Not shown, See Figure 064)

4шт.

G11945

GUIDE

S - intake valve stems (Set of 4) not shown, See Figure 052

1шт.

G11946

GUIDE

S - exhaust valve stem (Set of 4) not shown, See Figure 052

1шт.

24

G11986

KIT

INSERTS - exhaust valve seat (Set of 4)

1шт.

25

VT3479

X

PLUG - Welch (1-3/4" dia.)

1шт.

26

VT4510

X

STUD - nozzle holder and manifold (3/8" x 1-3/4")

12шт.

27

G11254

X

STUD - manifold to head (3/8" x 2-7/16") Use A35175

6шт.

A35175

STUD

- manifold to head (See G11254 and G11739)

6шт.

28

G11739

X

CLAMP - manifold, original equipment (For service use A35028 clamp and A35175 stud)

6шт.

A35028

CLAMP

- manifold, replacement (See G11739)

6шт.

29

195-25

WASHER,3/8"

- plain, exhaust manifold (13-32" I.D. x 13/16" O.D. x 5/64" thick)

7шт.

92-6

LOCK WASHER,3/8"

not shown 3/8"

5шт.

30

VT3362

X

NUT - hex. brass, exhaust manifold (3/8" - 16 NC) for service use 131-903

7шт.

131-903

NUT,3/8"-16

NUT - Seez-Pruf, exhaust manifold (3/8" - 16 NC) See VT3362

7шт.

25-106

NUT,3/8"-16, G5

- hex., intake manifold (3/8" - 16 NC) not shown

5шт.

31

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

32

G46866

GASKET

- valve, Serial Range: cover-head

1шт.

33

G11997

COVER - valve

1шт.

34

VT3545

X

CAP - oil filler and breather

1шт.

35

G46867

GROMMET

- rubber, valve cover stud

2шт.

36

G49400

WASHER

- valve cover stud (13/32" I.D. x 1-5/2" O.D. x 9/64" thick)

2шт.

37

129-520

NUT,Crown, 3/8"-16

- cap, valve cover stud (3/8" - 16 NC) Use 25-106

2шт.

25-106

NUT,3/8"-16, G5

- hex., valve cover stud (3/8" - 16 NC) See 129-520

2шт.
