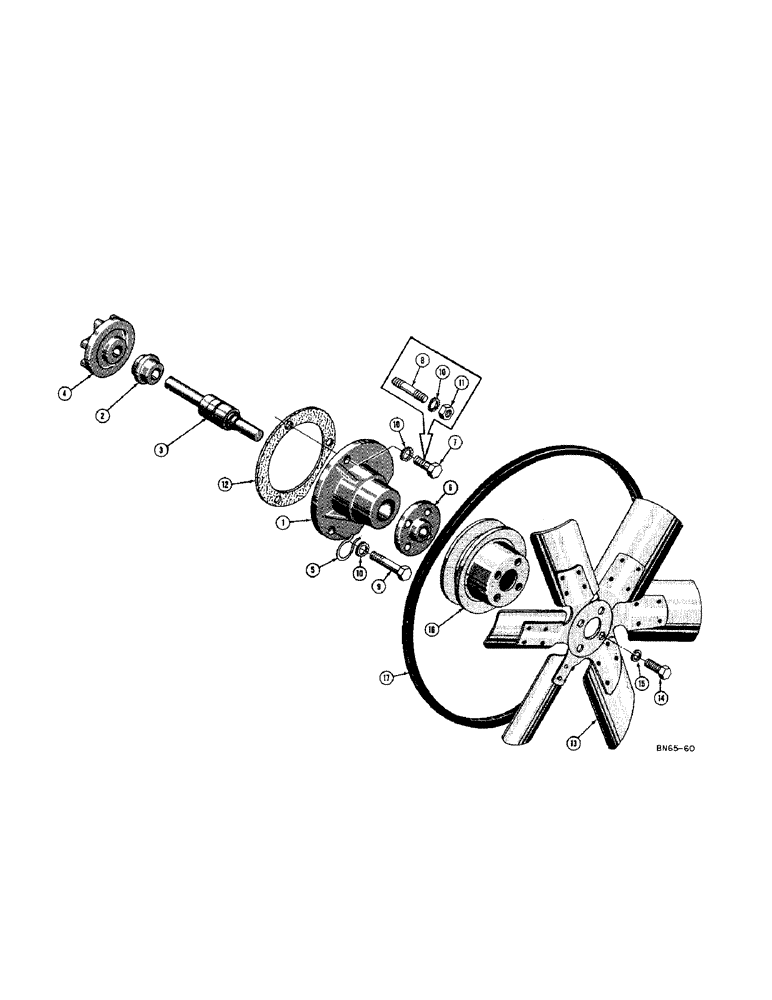

Запчасти Case 420C (020) - WATER PUMP, FAN, FAN BELT, AND PULLEY - GAS (01) - ENGINE

G11956

WATER PUMP

PUMP - water

1шт.

A48364

REMAN-WATER PUMP

Remanufactured WATER PUMP

1шт.

A48325

CORE-WATER PUMP

Return Number, WATER PUMP

1шт.

1

VTA905

X

BODY - water pump (Use G11956)

1шт.

2

O9799AB

SPARE PART SEAL - driveshaft (Use G11956)

1шт.

3

VTA904

X

SHAFT - pump drive (Use G11956)

1шт.

4

VT342

SPARE PART IMPELLER - water pump (Use G11956)

1шт.

5

VT4594

X

RING - retaining

1шт.

6

VT4533

SPARE PART HUB - fan (Use G11956)

1шт.

7

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

BOLT, , Water pump to timing gear cover, when replacing 13-612 cap screw on L.H. side of water pump, use VT4512 stud Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

8

VT4512

X

STUD - water pump to timing gear cover, L.H. side (3/8" - 16 NC x 1") See 13-612

1шт.

9

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to block (3/8" - 16 NC x 2-3/4")

1шт.

10

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

11

25-106

NUT,3/8"-16, G5

NUT - hex. (3/8" - 16 NC) VT4512 stud

1шт.

12

G46875

GASKET

GASKET - water pump to timing gear cover

1шт.

13

D27436

FAN

FAN - suction

1шт.

D27437

FAN

FAN - pusher (Loader models only) not shown

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, , Fan and pulley to hub Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

15

92-5

LOCK WASHER,5/16"

LOCK WASHER, 5/16"

4шт.

16

G11339

PULLEY

PULLEY - water pump and fan drive

1шт.

17

G46238

BELT,0.55" W x 17.78" L

Fan, Water Pump, and Generator Drive

1шт.
