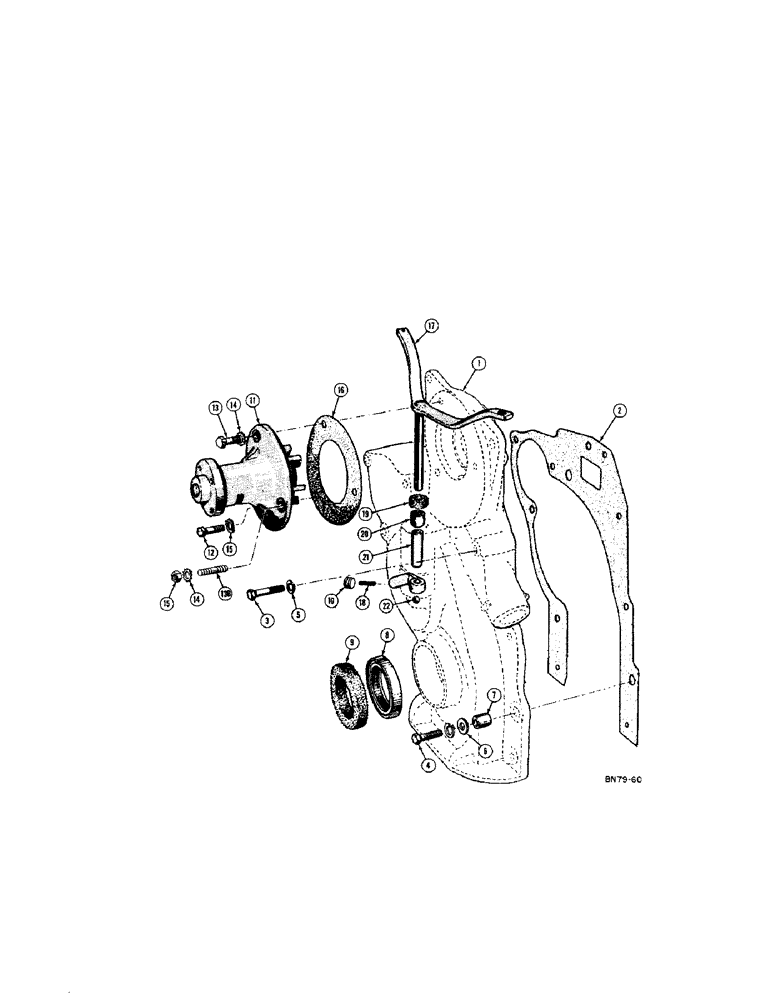

Запчасти Case 420C (020[1]) - TIMING GEAR COVER - GAS (01) - ENGINE

1

VT334

COVER - timing gear (Original equipment) when stock is exhausted, order 1 - Z35825 cover and 2 - A35822 needle bearings

1шт.

A35825

COVER - timing gear (See VT334)

1шт.

2

VT3248

X

GASKET - timing gear cover

1шт.

3

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

Timing gear cover to block Hex, 3/8"-16 x 2", G5

1шт.

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

Timing gear cover to block Hex, 3/8"-16 x 2 1/4", G5

1шт.

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 2-3/4")

1шт.

4

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Timing gear cover to block Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

HHCS - timing gear cover to block (3/8" - 16 NC x 1-1/2")

2шт.

5

92-6

LOCK WASHER,3/8"

8шт.

6

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

2шт.

7

VT4535

X

DOWEL - ring, timing gear, Serial Range: cover-block

2шт.

8

VT3373

SEAL - oil, crankshaft front

1шт.

9

VT3380

SEAL - dust, drive pulley

1шт.

10

VT3352

X

PLUG - pipe, timing gear cover (1/8" NPT slotted head)

1шт.

11

G11956

WATER PUMP

PUMP - water (See above for breakdown)

1шт.

12

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - water pump to timing gear cover (3/8" - 16 NC x 2-3/4")

1шт.

13

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Water pump to timing gear cover, when replacing 13-612 cap screw on L.H. side of water pump, use VT4512 stud Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

VT4512

X

STUD - water pump to timing gear cover, L.H. side (3/8" - 16 NC x 1") See 13-612 (Not shown)

1шт.

14

193-30

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

3шт.

15

25-1406

NUT - hex. (3/8" - 16 NC) VT4512 stud (Not shown)

1шт.

16

G46875

GASKET

- water pump to timing gear cover

1шт.

17

VTA850

X

LEVER - governor (Includes arm)

1шт.

18

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, 1/8" x 3/4", Slotted

1шт.

19

VT3259

X

SEAL - dust, governor shaft

1шт.

20

VT3351

X

BEARING - governor shaft (Used with VT334 cover only) See A35822

1шт.

A35822

NEEDLE BEARING,Needle, 9.52mm ID x 14.29mm OD x 12.7mm W

BEARING - needle, governor shaft (Used with A35825 cover) See VT3351 (Not shown)

2шт.

21

VT3288

X

SPACER - thrust, governor shaft

1шт.

22

A7456

X

BALL - thrust, governor shaft (3/16" dia.) Use 211-5

1шт.

211-5

BALL,3/16" Dia

- thrust, governor shaft (.) 3/16" Dia

1шт.
