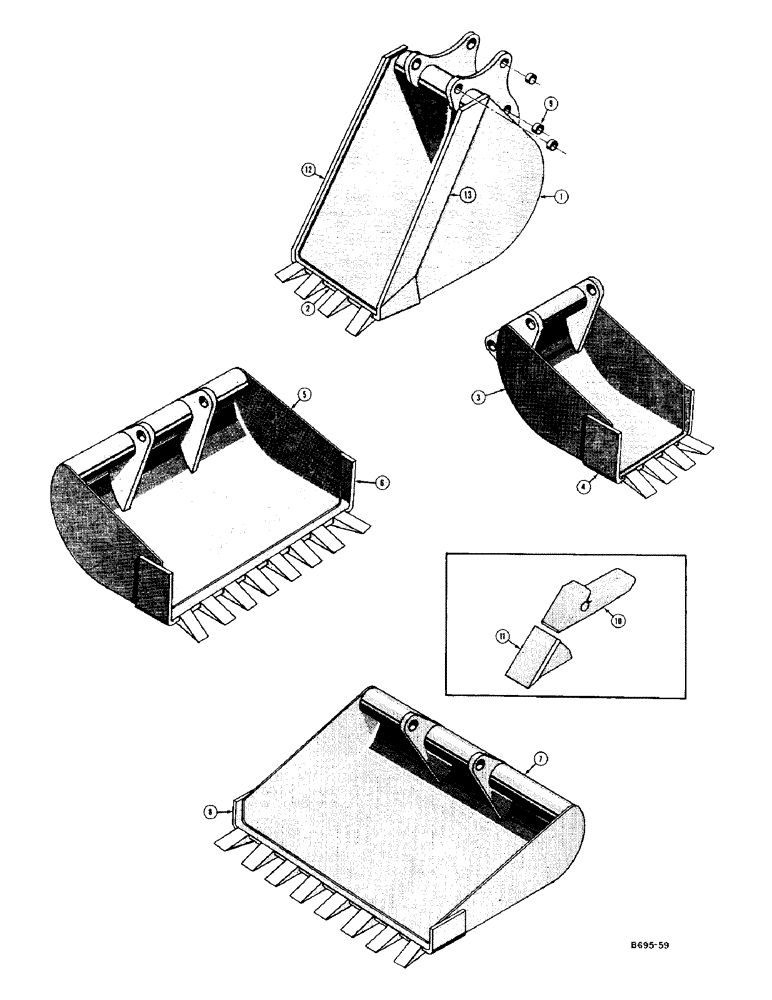

Запчасти Case 420C (272) - BACKHOE BUCKETS (OPTIONAL EQUIPMENT), TRENCHING BUCKETS (MACHINERY ITEMS) (19) - BUCKETS

1

D29356M

BUCKET - trenching, 12"

1шт.

2

D23227

EDGE

- cutting, center

1шт.

1

D23359M

BUCKET - trenching, 18"

1шт.

2

D23226

EDGE - cutting, center

1шт.

1

D23360M

BUCKET - trenching, 24"

1шт.

2

35277

KNIFE

EDGE - cutting, center

1шт.

1

D24644M

BUCKET - trenching, 30"

1шт.

2

35294

EDGE - cutting, center

1шт.

1

D29119M

BUCKET - trenching, 36"

1шт.

2

D29121

PLUG

EDGE - cutting, center

1шт.

3

D25213M

BUCKET - bellhole, 12"

1шт.

4

D23107

EDGE - cutting

1шт.

3

37698M

BUCKET - bellhole, 16", machinery items

1шт.

4

37696

EDGE - cutting, bellhole buckets machinery items

1шт.

3

37446M

BUCKET - bellhole, 30", machinery items

1шт.

4

37448

EDGE - cutting, bellhole buckets machinery items

1шт.

5

D20461M

BUCKET - bellhole and graveyard, 36", combination machinery items

1шт.

6

D20453

EDGE - cutting, combination bellhole & graveyard machinery items

1шт.

7

37910M

BUCKET - graveyard, 38", machinery item

1шт.

8

37908

EDGE - cutting, graveyard bucket machinery item

1шт.

9

D25038

X

BUSHING - bucket (1-1/2" O.D.) Use 30634, parts

4-6шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket (1-1/2" O.D.) Use D29497, parts

4-6шт.

D29497

BUSHING - bucket (1-5/8" O.D.) See 30634, parts

4-6шт.

D32391

BUSHING

- bucket (1-7/8" O.D.) See 30634 and 29497, parts

4-6шт.

10

D26368

SUPPORT

SHANK - tooth, parts

3-8шт.

11

D27748

TOOTH

POINT - tooth, parts

3-8шт.

12

D29423

EDGE, CUTTING

EDGE - cutting, L.H. (12" trenching bucket only) See D21605, parts

1шт.

D21605

EDGE, CUTTING

EDGE - cutting, L.H. (Trenching buckets only) See D29423,parts

1шт.

13

D29424

EDGE, CUTTING

EDGE - cutting, R.H. (12" trenching bucket only) See D21606, parts

1шт.

D21606

EDGE, CUTTING

EDGE - cutting, R.H. (Trenching buckets only) See D29424, parts

1шт.
