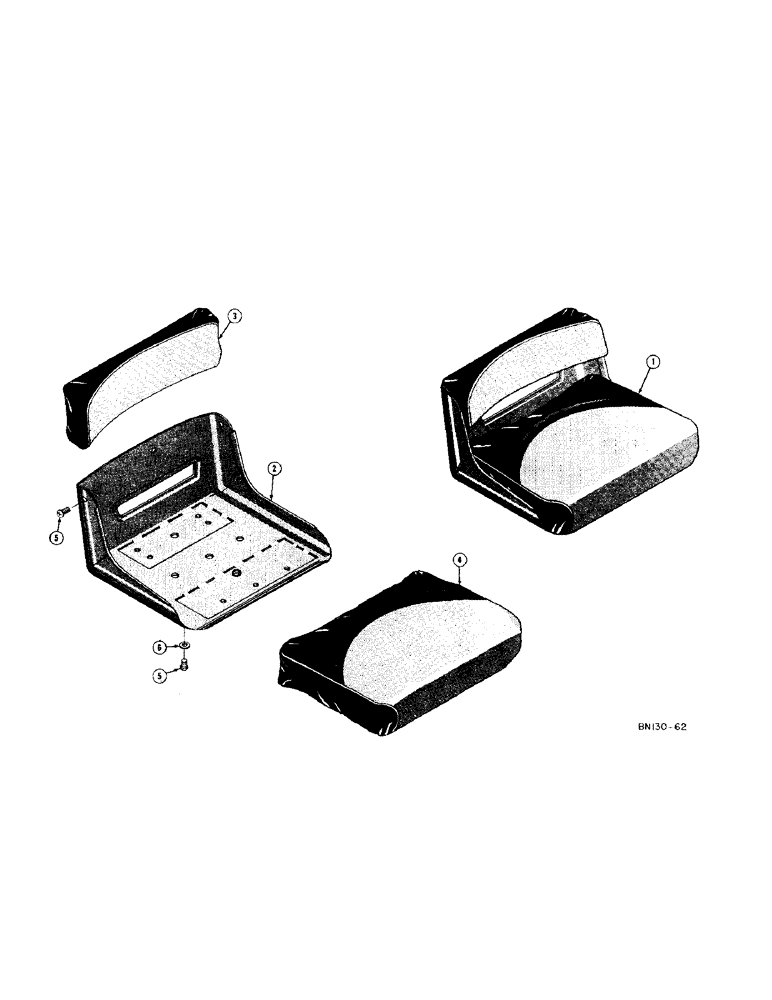

Запчасти Case 420C (264[1]) - BACKHOE SEAT (18) - ATTACHMENT ACCESSORIES

1

D28501

SEAT - backhoe (Use D29157)

1шт.

1

D29157

X

SEAT - backhoe (See D23119 and D28501)

1шт.

2

NSS

NOT SOLD SEPARAT

FRAME - backhoe seat

1шт.

3

D28821

X

BACKREST - seat

1шт.

4

D28822

X

CUSHION - seat

1шт.

5

173-213

SCREW,Phil Rnd Hd, 1/4" - 20 x 1/2"

- Philips head (1/4" - 20 NC x 1/2")

5шт.

6

195-518

WASHER,1/4", SAE

- plain (9/32" I.D. x 5/8" O.D. x 1/16" thick)

2шт.
