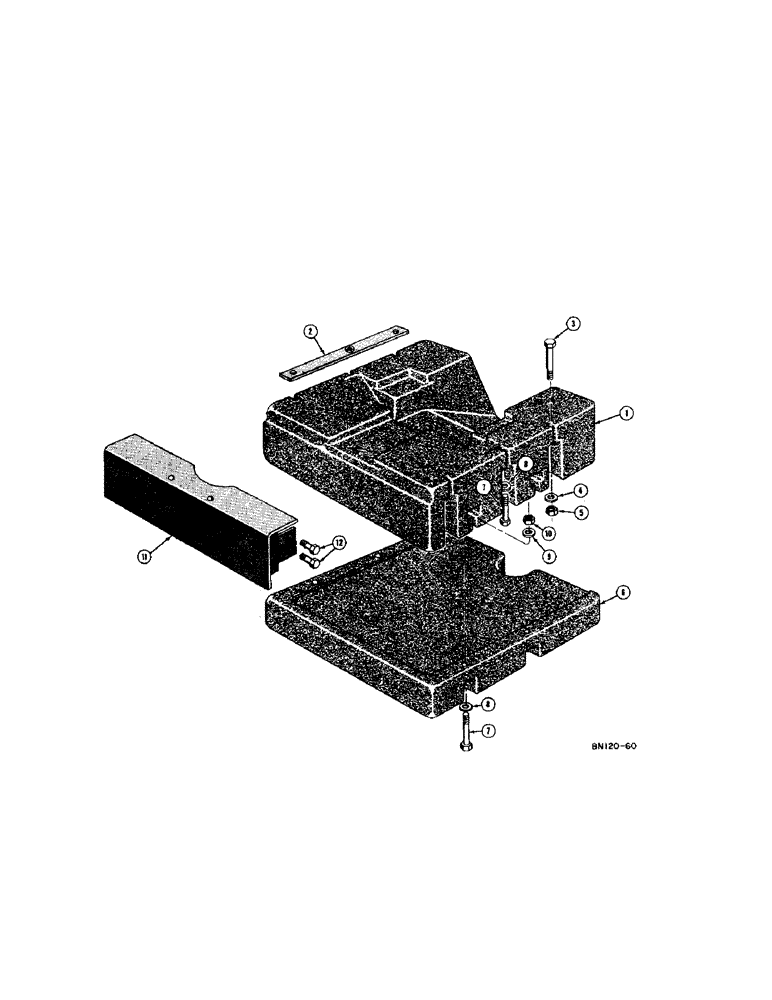

Запчасти Case 420C (262[1]) - FRONT COUNTERWEIGHTS FOR BACKHOE (18) - ATTACHMENT ACCESSORIES

1

D26394

COUNTERWEIGHT - front, upper

1шт.

2

D26755

STRIP - reinforcing

2шт.

3

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

6шт.

4

D25752

WASHER - special (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

6шт.

5

131-354

LOCK NUT,1/2"-13, GA

NUT - lock (1/2" - 13 NC)

6шт.

6

D26405

WEIGHT

COUNTERWEIGHT - front, lower

1шт.

7

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

4шт.

8

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

4шт.

9

D26752

WASHER

- special (17/32" I.D. x 1-3/8" O.D. x 1/4" thick)

4шт.

10

131-354

LOCK NUT,1/2"-13, GA

NUT - hex. (1/2" - 13 NC)

4шт.

11

D26239

BUMPER - front

1шт.

12

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.
