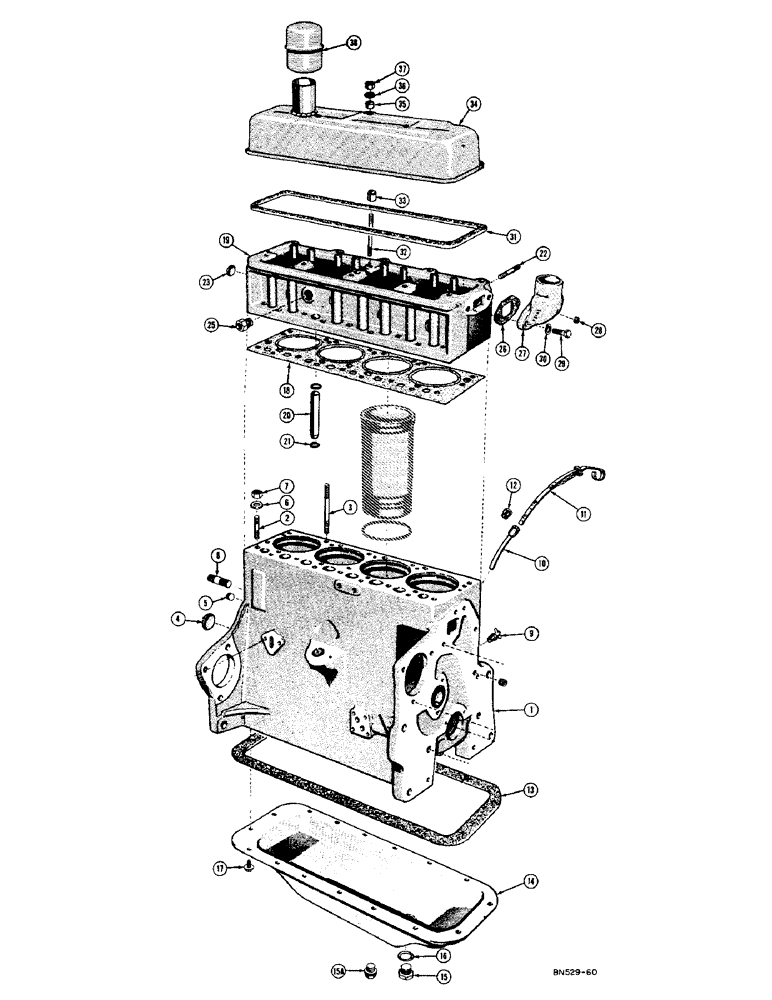

Запчасти Case 420C (010) - ENGINE BLOCK AND RELATED PARTS - GAS (01) - ENGINE

1

G10506

X

1шт.

SHORT BLOCK ASSEMBLY - includes stripped block, cylinder liners, packings, pistons, rings, crankshaft, gear cover assembly, camshaft, front end plate, timing gears, filler blocks, studs, nuts, screws, washers, plugs, lockwires, head, oil pump, and connecting rods (See G11911)

1шт.

G11911

X

STRIPPED BLOCK - includes block, Hubbard plugs, bearing caps, screws, pins, washers, studs, oil gauge, rod support, plug spacers, main bearings, lockwires, copper washers, camshaft bearings, and gaskets (See G10506)

1шт.

G2035

CAP

- crankshaft front bearing (Not shown - See Figure 014)

1шт.

G2036

CAP

- crankshaft center bearing (Not shown - See Figure 014)

1шт.

G2037

CAP

- crankshaft rear bearing (Not shown - See Figure 014)

1шт.

G49037

BOLT

- place, center and rear bearing cap (Not shown - See Figure 014)

4шт.

G49059

BOLT

- place, oil pump and front bearing cap (Not shown - See Figure 014)

2шт.

VTA2621

X

BUSHING - camshaft (Set of 3) not shown - See Figure 018

1шт.

2

VT4503

X

STUD - cylinder head (1/2" x 2")

9шт.

3

VT4515

X

STUD - cylinder head (1/2" x 5-7/8")

5шт.

4

VT3398

X

PLUG - crankshaft rear bearing (2-1/8" dia. Hubbard)

1шт.

5

VT3395

X

PLUG - pipe, oil gallery (1/4" NPT socket head)

3шт.

6

VT4529

WASHER

- cylinder head studs (When stock is exhausted, order G49404)

14шт.

G49404

WASHER

- cylinder head studs (See VT4529)

14шт.

7

VT3361

X

NUT - cylinder head studs

14шт.

8

VT3531

X

STUD - block to clutch housing (5/8" x 3")

2шт.

9

VT2784

X

DRAIN COCK - water, engine block (Use 217-103)

1шт.

217-103

COCK, DRAIN

DRAIN COCK - water, engine block

1шт.

10

G45139

BRACKET

SUPPORT - dipstick

1шт.

11

G37037

DIPSTICK

- oil level

1шт.

12

G46892

OIL SEAL

- rubber, dipstick

1шт.

13

G10020

X

GASKET - oil pan (G11868 oil pan only - when stock is exhausted, order A35271)

1шт.

A35271

OIL PAN GASKET SET

- oil pan (G11868 and A35279 oil pans - see G10020)

1шт.

14

G11868

PAN - oil (Original equipment) for service order, A35289

1шт.

15

VT4521

X

PLUG - drain, oil pan (7/8" NF thread) See G45786

1шт.

15a

G45786

PLUG

- drain, oil pan (3/8") NPT) Includes gasket (See VT4521)

1шт.

16

VT4520

X

GASKET - drain plug with 7/8" NF thread only

1шт.

14

A35279

PAN - oil (Service replacement) See G11868

1шт.

15a

G45786

PLUG

- drain, oil pan

1шт.

17

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - attaching, oil pan (5/16" - 18 NC x 3/4")

16шт.

18

G10672

CYLINDER HEAD GASKET

- cylinder head

1шт.

19

G11909

HEAD - cylinder

1шт.

VTA911

X

GUIDES - valve stem (Set of 4) not shown - See Figure 018

8шт.

20

G11360

TUBE,0.687" OD x 3.687" L

- push rod (3-11/16" long)

8шт.

21

G46896

X

SEAL - "O"ring, push rod, tube

16шт.

22

VT4510

X

STUD - manifold to head (3/8" x 1-3/4")

7шт.

23

VT5058

PLUG - safety freeze (1-1/8" dia. Hubbard)

1шт.

24

RESERVED

1шт.

25

D26015

FITTING

ADAPTER - temperature gauge heat bulb

1шт.

26

VT3228

X

GASKET - water outlet elbow

1шт.

27

G11087

ELBOW - water outlet

1шт.

28

221-3

DRAIN PLUG,Sq Hd, 3/8"-18 NPTF

PLUG - pipe, square head (3/8" NPT)

1шт.

29

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

30

92-6

LOCK WASHER,3/8"

2шт.

31

VT3246

GASKET - valve cover

1шт.

32

G49504

STUD

- valve cover (3/8" x 4-5/8" with 1" thread)

1шт.

G49505

STUD

- valve cover (3/8" x 4-5/8" with 2" thread)

2шт.

33

VT3142

X

SPACER - valve cover (3/8" I.D. x 1-19/32" long)

2шт.

34

G13997

COVER - valve

1шт.

35

VT4564

X

SPACER - valve cover (3/8" I.D. x 17/32" long)

2шт.

36

195-25

WASHER,3/8"

- plain (13/32" I.D. x 13/16" O.D. x 5/64" thick)

3шт.

37

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

38

VT3545

X

CAP - oil filler and breather

1шт.
