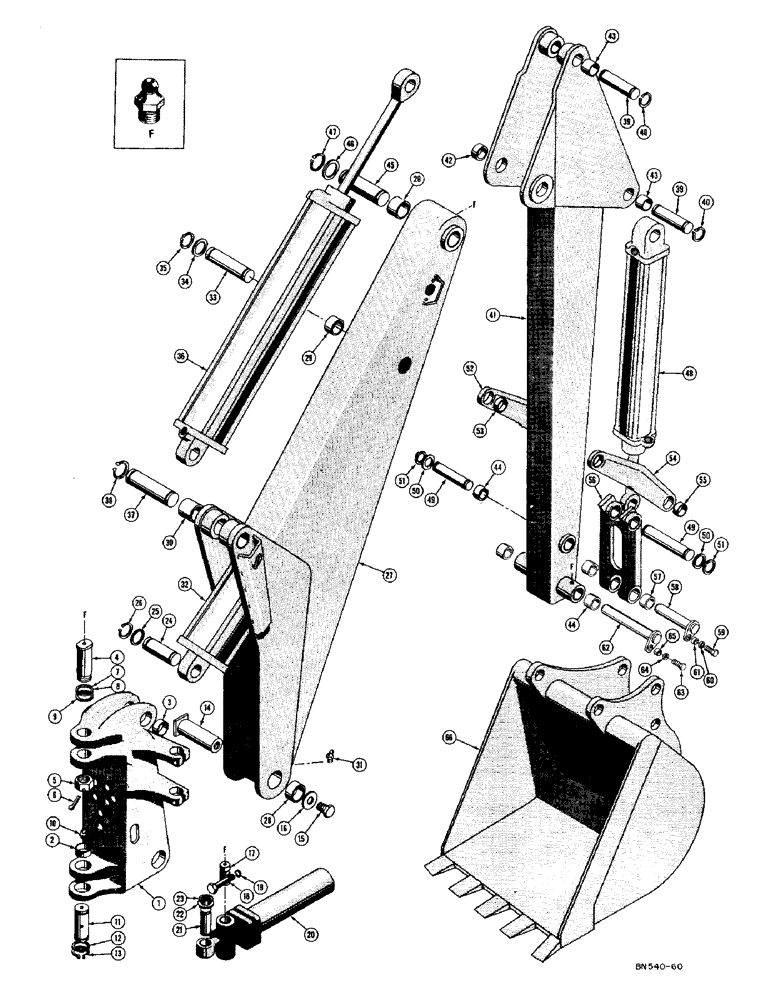

Запчасти Case 420C (268) - TOWER, BOOM, DIPPER ARM, AND BUCKETS (09) - BOOMS

1

D25040

TOWER - swing, backhoe

1шт.

2

D23203

BUSHING

- lower swing pivot

2шт.

3

D25000

BUSHING

- boom cylinder pivot

2шт.

4

D23909

BOLT - mounting, upper tower pivot to mounting frame

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

5

129-134

X,1 1/2"-12, G5

NUT - hex. slotted (1-1/2" - 12 NF)

1шт.

6

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

1шт.

7

D26305

SPACER

- bearing, upper (3/8" thick)

1шт.

8

D26991

BEARING

SPACER - bearing, upper (1/4" thick)

1шт.

9

D23907

SPACER

- bearing, lower (5/16" thick)

1шт.

10

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

11

D23519

AXLE PIN

PIN - mounting, lower tower pivot to mounting frame

1шт.

12

D25509

WASHER

- special, D23519 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

13

D26919

SNAP RING,#200, Ext

Ring, Snap, , D23519 pin #200, Ext

2шт.

14

D25987

X

PIN - mounting, Serial Range: boom-tower

1шт.

15

113-900

BOLT,Locking, 1" - 8 x 2", Gr 5

- Nylock self locking (1" - 8 NC x 2")

1шт.

16

D25991

WASHER - special (1-1/32" I.D. x 1/2" thick)

1шт.

17

D25514

PIN - mounting, swing, Serial Range: cylinder-tower

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

4шт.

18

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

HHCS - 5/8" - 11 NC x 2-3/4"

4шт.

19

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

20

D25025

CYLINDER - swing, hydraulic (Early production - use D27750) See Figure 302 for breakbown

2шт.

20

D27750

CYLINDER ASSY.

CYLINDER - swing, hydraulic (Late production - see D25025) See Figure 302 for breakdown

2шт.

21

D25075

PIN

- pivot, swing cylinder to mounting frame

2шт.

22

LT483S

WASHER - special (1-17/64" I.D. x 2-1/8" O.D. x 7/64" thick) Use D28266

4шт.

D28266

WASHER

- special (1-17/64" I.D. x 2-1/8" O.D. x 7/64" thick) See LT483S

4шт.

23

D26918

SNAP RING,#125, Ext

Ring, Snap, , D25075 pin #125, Ext

4шт.

24

D23523

PIN

- pivot, boom, Serial Range: cylinder-tower

1шт.

25

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- flat (1-13/32" I.D x 2-3/4" O.D x 9/64" thick)

2шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23523 pin #175, Ext

2шт.

27

D23428

BOOM - backhoe

1шт.

28

36121

BUSHING

- tower pivot, also dipper arm pivot

4шт.

29

D25258

BUSHING

- boom cylinder pivot

2шт.

30

D25029

BUSHING

- crowd cylinder pivot

2шт.

31

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

32

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (With tie rods) Early production - when stock is exhausted, order D27751 cylinder and 218-5065 connector (See Figure 304 for breakdown)

1шт.

32

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Without tie rods) Late production see D27156 (See Figure 304 for breakdown)

1шт.

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

CONNECTOR - male (3/4" JIC) Cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector (Not shown)

1шт.

33

D23522

AXLE PIN

PIN - retaining, boom, Serial Range: cylinder-boom

1шт.

34

195-2165

WASHER,1 13/16" x 2 3/4" x .134"

- flat (1-13/32" I.D. x 2-3/4" O.D. x 9/64" thick)

2шт.

35

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23522 pin #175, Ext

2шт.

36

D27489

CYLINDER - crowd, hydraulic (With tie rods) Early production - when stock is exhausted, order D27752 cylinder and 218-5065 connector (See Figure 306 for breakdown)

1шт.

36

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) Late production see D27489 (See Figure 306 for breakdown)

1шт.

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC) Cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5065 connector (Not shown)

1шт.

37

D23521

AXLE PIN

PIN - retaining, crowd, Serial Range: cylinder-boom

1шт.

38

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23521 pin #175, Ext

2шт.

39

D23441

AXLE PIN

PIN - pivot, crowd cylinder to dipper arm (Also bucket cylinder to dipper arm)

2шт.

40

D25280

SNAP RING,#175, Ext

Ring, Snap, , D23441 pin #175, Ext

4шт.

41

D23458

ARM - dipper, original equipment (When stock is exhausted, order D31704) Includes 2 - D23203 bushings, 4 - D25029 bushings, and 4 - D23444 bushings (See D29512)

1шт.

41

D29512

ARM - dipper, replacement (Use D31704) See D23458

1шт.

42

D23203

BUSHING

- boom pivot

2шт.

43

D25029

BUSHING

- crowd cylinder pivot; also bucket cylinder pivot

4шт.

44

D23444

BUSHING

- bucket pivot; also bucket linkage pivot

4шт.

41

D31704

ARM - dipper, replacement (See D23458 and D29512)

1шт.

42

D23203

BUSHING

- boom pivot

2шт.

43

D25029

BUSHING

- crowd cylinder pivot; also bucket cylinder pivot

4шт.

44

D31708

BUSHING

- bucket pivot; also bucket linkage pivot

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

45

D23517

PIN

- pivot, dipper, Serial Range: arm-boom

1шт.

46

D25509

WASHER

- special, D23517 pin (2-1/64" I.D. x 3" O.D. x 7/64" thick)

2шт.

47

D26919

SNAP RING,#200, Ext

Ring, Snap, , D23517 pin #200, Ext

2шт.

48

D25045

CYLINDER - bucket, hydraulic (With tie rods) Early production - when stock is exhausted, order D27753 cylinder and 218-5065 (See Figure 308 for breakdown)

1шт.

48

D27753

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Without tie rods) Late production - see D25045 (See Figure 308 for breakdown)

1шт.

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector (Not shown)

1шт.

49

D23358

PIN - pivot, dipper arm to bucket linkage; also bucket cylinder to bucket linkage

2шт.

50

LT483S

WASHER - special, D23358 pin (1-17/64" I.D. x 2-1/8" O.D. x 7/64" thick) Use D28266

4шт.

D28266

WASHER

- special, D23358 pin (1-17/64" I.D. x 2-1/8" O.D. x 7/64" thick) See LT483S

4шт.

51

D26918

SNAP RING,#125, Ext

Ring, Snap, , D23358 pin #125, Ext

4шт.

52

D27679

LINK - bucket, dipper arm to bucket cylinder (R.H.)

1шт.

53

DR10754

BUSHING

- dipper arm pivot

1шт.

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket cylinder pivot (Not shown)

1шт.

54

D27680

LINK - bucket, dipper arm to bucket cylinder (L.H.)

1шт.

DR10754

BUSHING

- dipper arm pivot (Not shown)

1шт.

55

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- bucket cylinder pivot

1шт.

56

D24909

LINK - dump, bucket

1шт.

57

D28021

BUSHING - bucket dump link

4шт.

58

35290

PIN

- pivot, dump, Serial Range: link-bucket

1шт.

59

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

60

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

61

D23740

BUSHING

- lockhead pin bolt

1шт.

62

35288

PIN - pivot, bucket to dipper arm

1шт.

63

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1шт.

64

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

1шт.

65

D23740

BUSHING

- lockhead pin bolt

1шт.

66

D23360

BUCKET - backhoe, trenching (24") See Figure 272 for breakdown and other buckets (Machinery item)

1шт.
