Запчасти Case 420C (306) - D27489 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

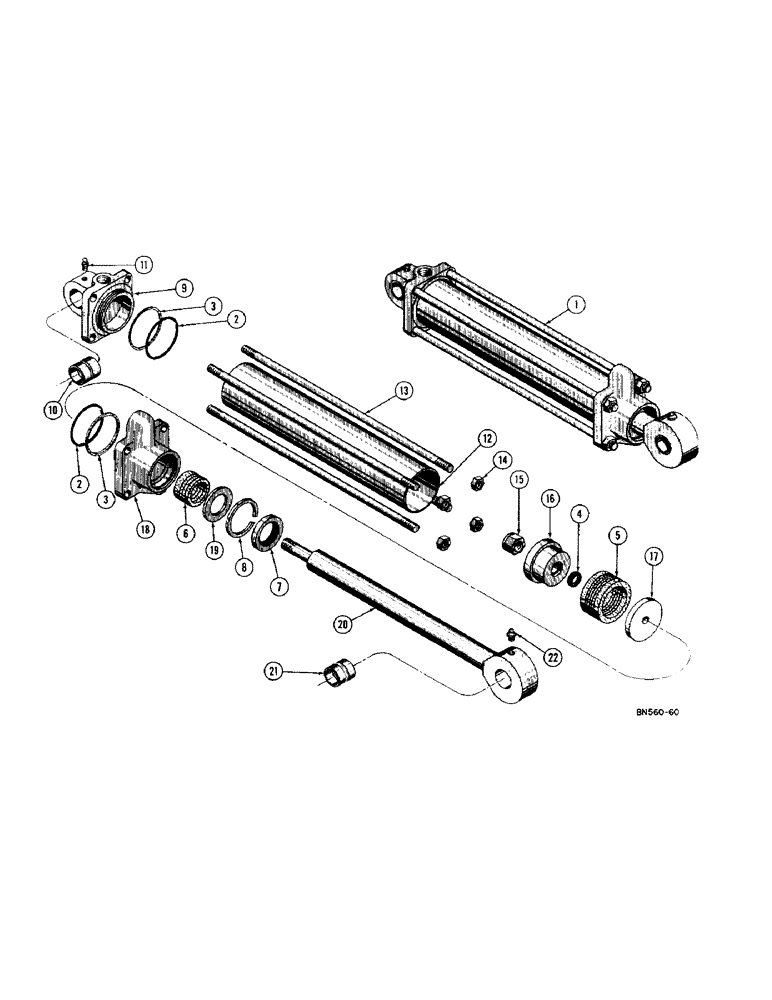

Схема запчастей Case 420C - (306) - D27489 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D27489

CYLINDER - hydraulic (4" I.D. x 32" stroke)

1шт.

D30145

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

31620

O-RING,0.139" Thk x 3.734" ID, -240, Cl 6, 90 Duro

SEAL - "O" ring

2шт.

3

D24988

RING

- leather backup

2шт.

4

O9018AB

X

SEAL - "O" ring

1шт.

5

31526

PACKING

- piston

1шт.

6

17598

PACKING

- piston rod

1шт.

7

31525

WIPER SEAL

- wiper

1шт.

8

100-21275

SNAP RING,2.75", Int, #275

Ring, Snap, , rod seal 2.75", Int, #275

1шт.

9

D25001

END - cylinder

1шт.

10

D25000

BUSHING

- cylinder end

2шт.

11

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

12

D25006

TUBE - cylinder

1шт.

13

D25008

ROD - tie

4шт.

14

230-4117

LOCK NUT,7/16"-14, GA

NUT - lock (5/8" - 11 NC)

4шт.

15

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

16

D27128

PISTON - cylinder

1шт.

17

D27199

WASHER - retainer

1шт.

18

D24979

CAP - end, cylinder

1шт.

19

D25044

WASHER

- packing, piston rod

1шт.

20

D27488

ROD - piston (2" dia.)

1шт.

21

D25000

BUSHING

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straght (1/8" NPT)

1шт.

Выбрано товаров: 23
