Запчасти Case 420C (306[1]) - D27752 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

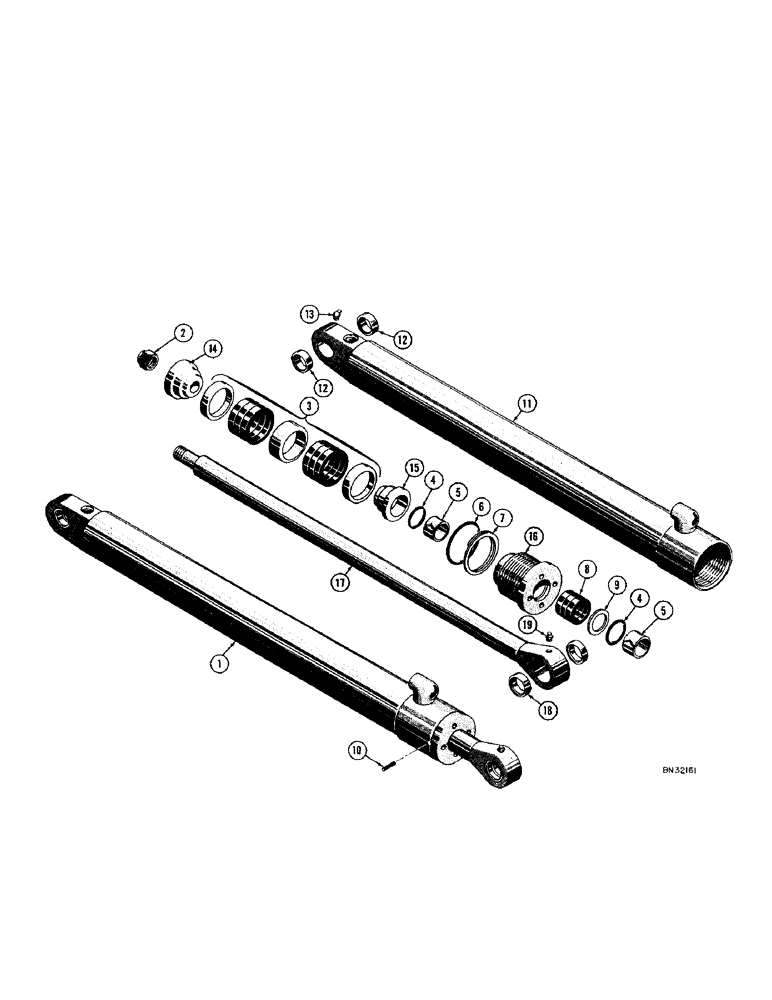

Схема запчастей Case 420C - (306[1]) - D27752 HYDRAULIC CROWD CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D27752

CYLINDER ASSY.

CYLINDER - hydraulic (4" I.D. x 32" stroke)

1шт.

D30134

X

KIT - cylinder packing

1шт.

2

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

3

D28376

SEAL

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

4

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

5

D27380

SCRAPER RING

WIPER - piston rod

2шт.

6

O8849AB

X

SEAL - "O" ring

1шт.

7

D27382

RING

- backup, gland seal

1шт.

8

D28496

SEAL - piston rod

1шт.

9

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D27769

HYD CYL SLEEVE

TUBE - cylinder

1шт.

12

D25000

BUSHING

- cylinder tube end

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

14

D28370

PISTON

- half, piston rod nut end

1шт.

15

D28371

PISTON

- half, piston rod eye end

1шт.

16

D27386

HEAD

GLAND - packing

1шт.

17

D27763

YOKE

ROD - piston (2" dia.)

1шт.

18

D25000

BUSHING

- piston rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 20
