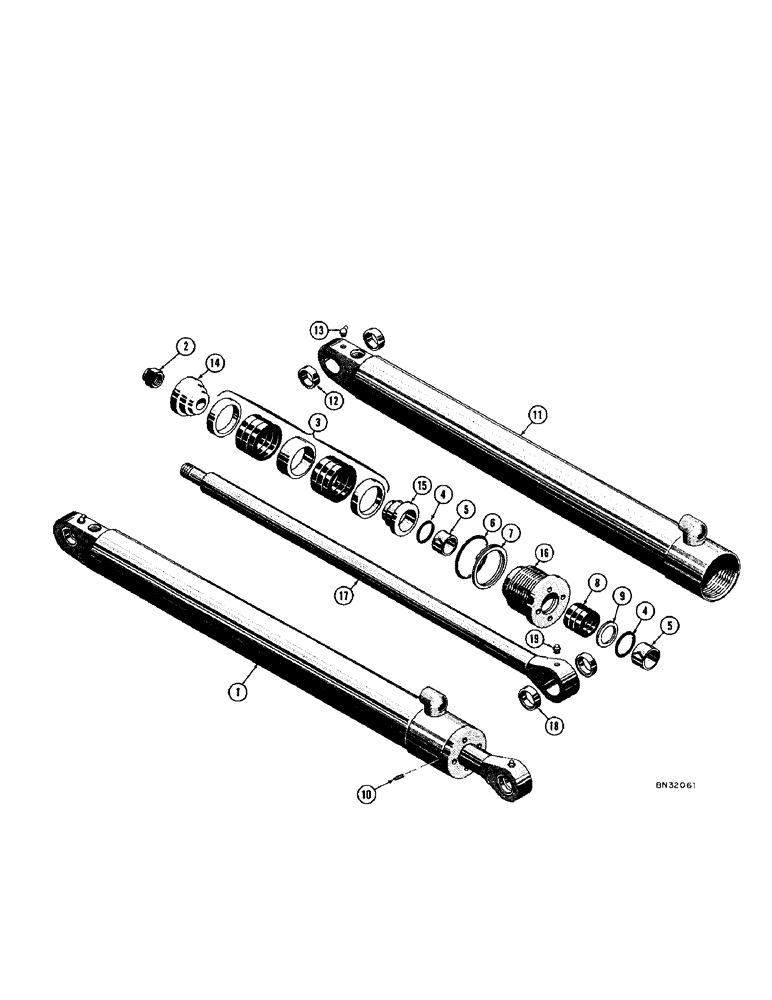

Запчасти Case 420C (304[1]) - D27751 HYDRAULIC BOOM CYLINDER (07) - HYDRAULIC SYSTEM

1

D27751

CYLINDER ASSY.

CYLINDER - hydraulic (4" I.D. x 39-3/16" stroke)

1шт.

D30134

X

KIT - cylinder packing

1шт.

2

131-22

LOCK NUT,1 1/4"-12, GB

NUT, LOCK, 1 1/4"-12, GB

1шт.

3

D28376

SEAL

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

4

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

SEAL - "O" ring, wiper

2шт.

5

D27380

SCRAPER RING

WIPER - piston rod

2шт.

6

O8849AB

X

SEAL - "O" ring, gland

1шт.

7

D27382

RING

- backup, gland seal

1шт.

8

D28496

SEAL - piston rod

1шт.

9

D28500

RING,Split, 50.8mm ID x 63.5mm OD x 1.27mm Thk

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D27768

TUBE - cylinder

1шт.

12

D25000

BUSHING

- cylinder tube end

2шт.

13

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

14

D28370

PISTON

- half, piston rod nut end

1шт.

15

D28371

PISTON

- half, piston rod eye end

1шт.

16

D27386

HEAD

GLAND - packing

1шт.

17

D27762

YOKE

ROD - piston (2" dia.)

1шт.

18

D25000

BUSHING

- piston rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
