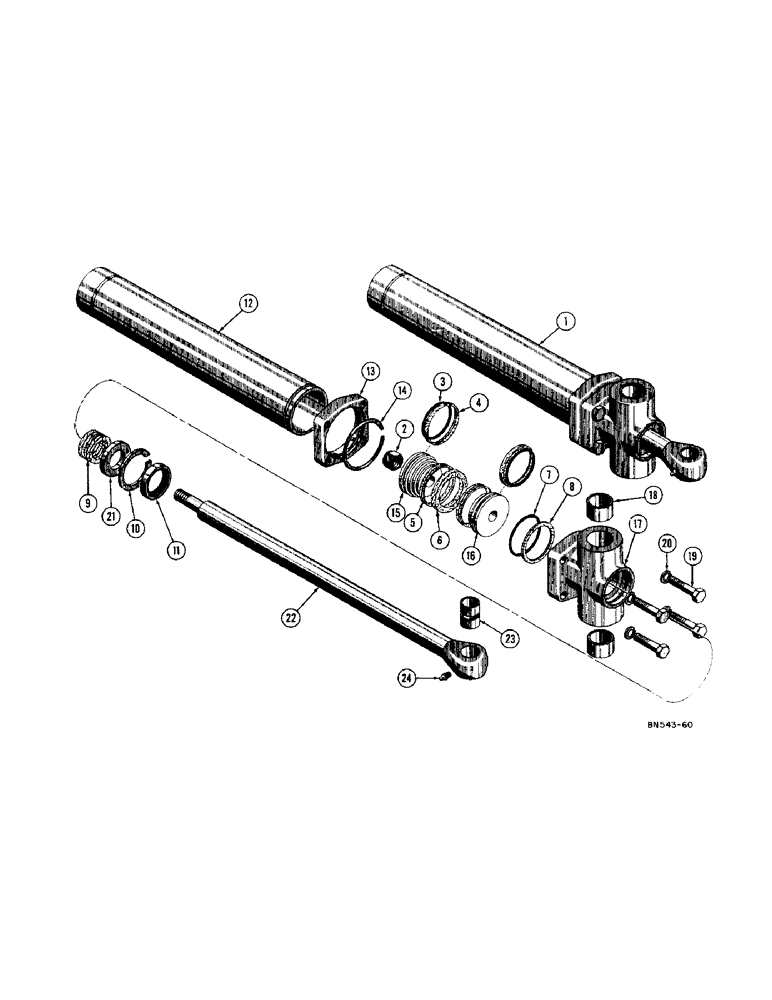

Запчасти Case 420C (302) - D25025 HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

1

D25025

CYLINDER - hydraulic (3" I.D. x 15-11/16" stroke)

2шт.

D30139

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D25620

X

SEAL - "O" ring, piston

2шт.

4

D25625

RING

- wiper, piston

2шт.

5

D25615

SEALING RING

RING - seal, piston

2шт.

6

D25609

SEAL ASSY.

SEAL - bearing, piston

1шт.

7

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder end cap to tube

1шт.

8

D24986

RING

- leather backup

1шт.

9

17577

PACKING

- piston rod

1шт.

10

70742

WASHER

2.50", Int, #250, packing washer, piston rod

1шт.

11

17583

WIPER SEAL

- wiper, piston rod

1шт.

12

D25024

TUBE AND END CAP - cylinder

1шт.

13

D24981

COLLAR - cylinder tube

1шт.

14

D24982

RING, SNAP

SNAP RING - collar retaining

1шт.

15

D25633

PISTON - half, piston rod nut end

1шт.

16

D25644

PISTON - half, piston rod eve end

1шт.

17

D25932

CAP - cylinder end

1шт.

18

D20201

BUSHING

- cylinder end cap

2шт.

19

13-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

4шт.

20

92-7

LOCK WASHER,7/16"

4шт.

21

D25042

WASHER

- packing, piston rod

1шт.

22

D25265

YOKE

ROD - piston (1-1/2" dia.)

1шт.

23

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

24

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - greese, straight (1/8" NPT)

1шт.
