Запчасти Case 420C (302[1]) - D27750 HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

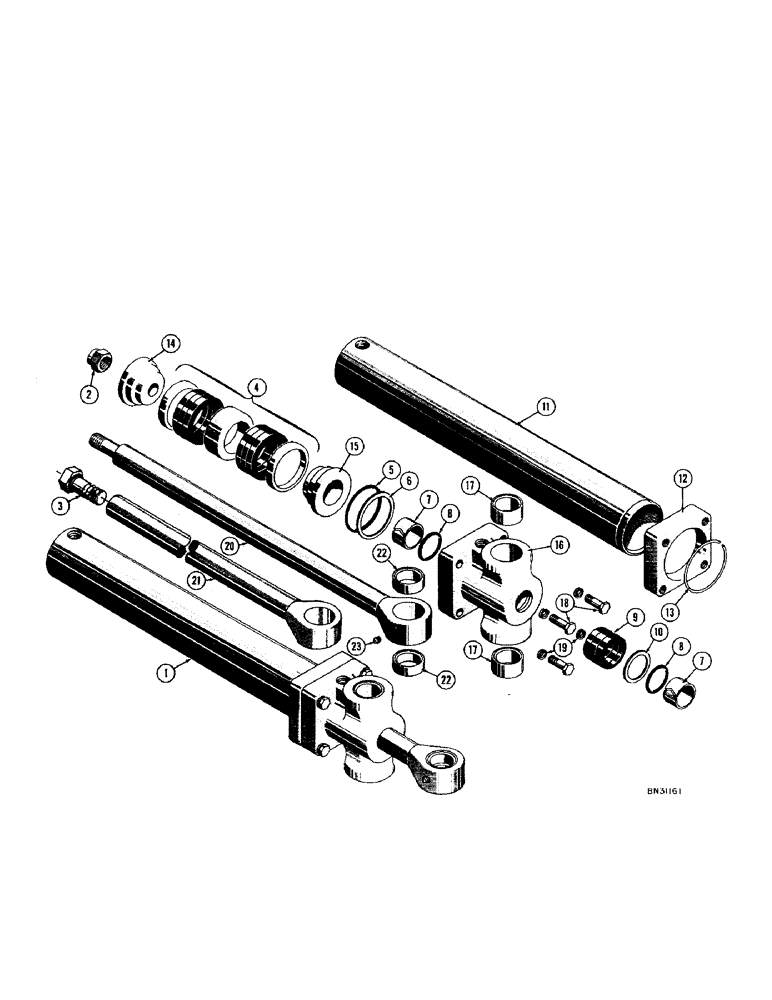

Схема запчастей Case 420C - (302[1]) - D27750 HYDRAULIC SWING CYLINDERS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D27750

CYLINDER ASSY.

CYLINDER - hydraulic (3" I.D. x 15-11/16" stroke)

2шт.

D30130

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock, piston (3/4" - 16 NF) Used with D27819 piston rod - See D29306

1шт.

3

D29306

BOLT

- special, self locking (3/4" - 16 NF x 2-1/2") Used with D29167 piston rod - See D23739

1шт.

4

D28374

PACKAGE,SERVICE

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

5

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O" ring, cylinder end cap to tube

1шт.

6

D24986

RING

- leather backup

1шт.

7

D27706

WIPER SEAL

WIPER - piston rod

1-2шт.

8

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O" ring, piston rod wiper

1-2шт.

9

D28494

SEAL

- piston rod

1шт.

10

D28498

RING

- backup, piston rod seal

1-3шт.

11

D25024

TUBE - cylinder

1шт.

12

D24981

COLLAR - tube

1шт.

13

D24982

RING, SNAP

SNAP RING -, Serial Range: collar-tube

14шт.

14

D28365

PISTON

- half, piston rod nut or bolt end

1шт.

15

D28366

PISTON

- half, piston rod eye end

1шт.

16

D27771

CAP

- end, cylinder

1шт.

17

D20201

BUSHING

- cylinder end cap

2шт.

18

13-736

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

4шт.

19

92-7

LOCK WASHER,7/16"

4шт.

20

D27819

ROD - piston, nut type (1-1/2" dia.) Use D29167 and D29306 (Includes ref. #22)

1шт.

21

D29167

ROD - piston, bolt type (1-1/2" dia.) See D27819

1шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 24
