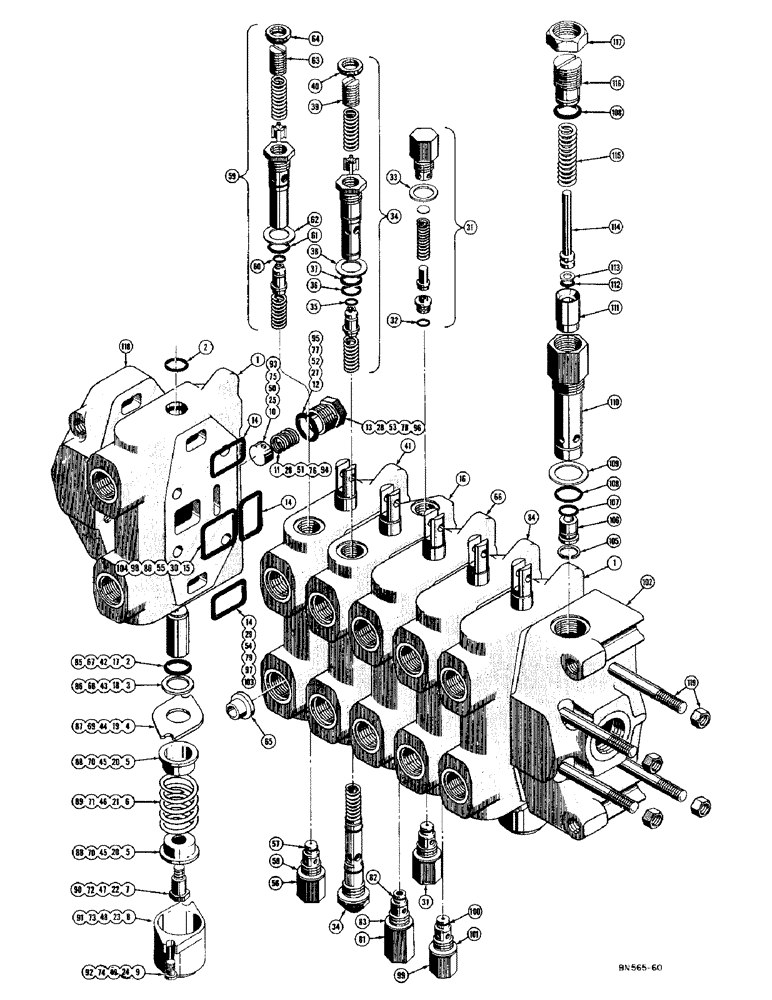

Запчасти Case 420C (292) - D27563 HYDRAULIC CONTROL VALVE (07) - HYDRAULIC SYSTEM

D27563

LOCK VALVE

VALVE - hydraulic control, backhoe

1шт.

1

D26842

ELEMENT

SECTION - valve, stabilizer cylinder control

2шт.

2

O8416AB

X

SEAL - "O" ring, spool

2шт.

3

D26829

RING

- backup, spool seal

1шт.

4

D26830

PLATE

- retaining

1шт.

5

D26831

GUIDE

- spring

2шт.

6

D26832

SPRING

- centering

1шт.

7

D26833

BOLT

- stripper

1шт.

8

D26823

CAP

- valve

1шт.

9

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

10

D26824

SPOOL

POPPET - check valve

1шт.

11

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

12

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

13

D26825

CAP - check valve (Use D30696)

1шт.

D30696

CYLINDER END CAP

CAP - check valve

1шт.

14

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

15

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

16

D28068

X

SECTION - valve, swing cylinder control

1шт.

17

O8416AB

X

SEAL - "O" ring

2шт.

18

D26829

RING

- backup, spool seal

1шт.

19

D26830

PLATE

- retaining

1шт.

20

D26831

GUIDE

- spring

2шт.

21

D26832

SPRING

- centering

1шт.

22

D26833

BOLT

- stripper

1шт.

23

D26823

CAP

- valve

1шт.

24

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, fillister head (1/4" - 20 NC x 3/4")

2шт.

25

D26824

SPOOL

POPPET - check valve

1шт.

26

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

27

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

28

D26825

CAP - check valve (Use D30696)

1шт.

D30696

CYLINDER END CAP

CAP - check valve

1шт.

29

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

30

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

31

D26835

CARTRIDGE - relief, secondary (Color code green, 2750 P.S.I. present at factory) Use D31449

2шт.

32

O8386AB

X

SEAL - "O" ring (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

33

D26864

X

WASHER - gasket, fibre (21/32" I.D. x 15/16" O.D. x 1/32" thick)

1шт.

31

D31449

CARTRIDGE - relief, secondary (Color code green, 2750 P.S.I. present at factory) See D26835

2шт.

32

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

33

D31450

WASHER

- gasket, copper

1шт.

D26872

O-RING

SEAL - "O" ring (Between relief valve body and control valve housing inside the I.D. of the gasket washer) Not shown

1шт.

34

D26838

FILTER

CARTRIDGE - relief, cross over (Color code brown, 1300 P.S.I. present at factory)

2шт.

35

O8386AB

X

SEAL 0 "O" ring, poppet (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, Poppet

1шт.

36

VT2983

X

SEAL - "O" ring, shell (Lower) Use D31412

1шт.

D31412

O-RING

SEAL - "O" ring, shell (Lower)

1шт.

37

D26872

O-RING

SEAL - "O" ring, shell (Upper) Use D31409

1шт.

38

D26870

GASKET

WASHER - gasket, lead-copper (13/32" I.D. x 11/16" O.D. x .020" thick)

1шт.

39

D26878

X

SCREW - set, adjusting

1шт.

40

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

41

D26839

SECTION - valve, boom cylinder control

1шт.

42

O8416AB

X

SEAL - "O" ring

2шт.

43

D26829

RING

- backup, spool seal

1шт.

44

D26830

PLATE

- retaining

1шт.

45

D26831

GUIDE

- spring

2шт.

46

D26832

SPRING

- centering

1шт.

47

D26833

BOLT

- stripper

1шт.

48

D26823

CAP

- VALVE

1шт.

49

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

50

D26824

SPOOL

POPPET - check valve

1шт.

51

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

52

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring, cap

1шт.

53

D26825

CAP - check valve (Use D30696)

1шт.

D30696

CYLINDER END CAP

CAP - check valve

1шт.

54

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

55

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

56

D26835

CARTRIDGE - relief, secondary (Lift) Color code green, 2750 P.S.I. present at factory (Use D31449)

1шт.

57

O8386AB

X

SEAL - "O" ring (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

58

D26864

X

WASHER - gasket, fibre (21/32" I.D. x 15/16" O.D. x 1/32" thick)

1шт.

56

D31449

CARTRIDGE - relief, secondary (Lift) Color code green, 2750 P.S.I. present at factory (See D26835)

1шт.

57

O8386AB

X

SEAL - "O" ring (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

58

D26864

X

WASHER - gasket, fibre (21/32" I.D. x 15/16" O.D. x 1/32" thick)

1шт.

56

D31449

CARTRIDGE - relief, secondary (Lift) Color code green, 2750 P.S.I. present at factory (See D26835)

1шт.

57

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

58

D31412

O-RING

WASHER - gasket, copper

1шт.

D26872

O-RING

SEAL - "O" ring (Between relief valve body and control valve housing inside the I.D. of the gasket washer) Not shown

1шт.

59

D26841

CARTRIDGE

- relief, boom down pressure (Color code - black, 1250 P.S.I. present at factory)

1шт.

60

O8386AB

X

SEAL - "O" ring, poppet (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal, Poppet

1шт.

61

D26872

O-RING

SEAL - "O" ring, shell (Use D31409)

1шт.

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

SEAL - "O" ring, shell

1шт.

62

D26870

GASKET

WASHER - gasket, lead-copper (13/32" I.D. x 11/16" O.D. x .020" thick)

1шт.

63

D26878

X

SCREW - set, relief adjusting

1шт.

64

D26879

LOCK NUT

NUT - lock, adjusting screw

1шт.

65

D27675

CHECK - restrictor, .219" orifice (Used in lower port of boom cylinder control valve section when only one restrictor check is used; Used in upper port of crowd cylinder control valve section when two restrictors checks are used)

1шт.

65

D29139

CHECK - restrictor, .125" orifice (Used in lower port of boom cylinder control valve section when two restrictors are used) Optional - See D27675

1шт.

66

D28054

SECTION - valve, crowd cylinder control

1шт.

67

O8416AB

X

SEAL - "O" ring, spool

2шт.

68

D26829

RING

- backup, spool seal

1шт.

69

D26830

PLATE

- retaining

1шт.

70

D26831

GUIDE

- spring

2шт.

71

D26832

SPRING

- centering

1шт.

72

D26833

BOLT

- stripper

1шт.

73

D26823

CAP

- valve

1шт.

74

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

75

D26824

SPOOL

POPPET - check valve

1шт.

76

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

77

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

78

D26825

CAP - check valve (Use D30696)

1шт.

D30696

CYLINDER END CAP

CAP - check valve

1шт.

79

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

80

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

81

D28017

- relief, secondary (Color code green, 2750 P.S.I. present at factory)

1шт.

82

O8386AB

X

SEAL - "O" ring (Use D31411).

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

83

16219

GASKET

WASHER - gasket, lead-copper (19/32" I.D. x 7/8" O.D. x 1/32" thick)

1шт.

81

D31449

CARTRIDGE - relief, secondary (Color code green, 2750 P.S.I. present at factory) See D28017

1шт.

82

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

83

D31450

WASHER

- gasket, copper

1шт.

D26872

O-RING

SEAL - "O" ring (Between relief valve body and control valve housing inside the I.D.of the gasket washer) Not shown

1шт.

84

D26821

SECTION - valve, bucket cylinder control

1шт.

85

O8416AB

X

SEAL - "O" ring, spool

2шт.

86

D26829

RING

- backup, spool seal

1шт.

87

D26830

PLATE

- retaining

1шт.

88

D26831

GUIDE

- spring

2шт.

89

D26832

SPRING

- centering

1шт.

90

D26833

BOLT

- stripper

1шт.

91

D26823

CAP

- valve

1шт.

92

71-412

SCREW,Slotted Fil Hd, 1/4"-20 x 3/4"

- machine, slotted fillister head (1/4" - 20 NC x 3/4")

2шт.

93

D26824

SPOOL

POPPET - check valve

1шт.

94

D26826

COMPRESSION SPRING

SPRING - check valve

1шт.

95

G46847

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

96

D26825

CAP - check valve (Use D30696)

1шт.

D30696

CYLINDER END CAP

CAP - check valve

1шт.

97

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

98

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

99

D26835

CARTRIDGE - relief, secondary (Color code green, 2750 P.S.I. present at factory) Use D31449

1шт.

100

O8386AB

X

SEAL - "O" ring (Use D31411)

1шт.

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

101

D26864

X

WASHER - gasket, fibre (21/32" I.D. x 15/16" O.D. x 1/32" thick)

1шт.

99

D31449

CARTRIDGE - relief, secondary (Color code green, 2750 P.S.I. present at factory) See D26835

1шт.

100

D31411

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

-010, 90 Duro, .239" ID x .070" Thk, Seal

1шт.

101

D31450

WASHER

- gasket, copper

1шт.

D26872

O-RING

SEAL - "O" ring (Between relief valve body and control valve housing inside the I.D. of the gasket washer) Not shown

1шт.

102

D26816

SECTION - valve inlet

1шт.

103

D26819

O-RING,1.299" ID x 1.505" OD

SEAL - "O" ring

3шт.

104

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

SEAL - "O" ring

1шт.

D26818

CARTRIDGE - main relief valve (1800 P.S.I. present at factory)

1шт.

105

D26858

RING, SNAP

SNAP RING - poppet retaining

1шт.

106

D26856

POPPET - relief valve

1шт.

107

VT2983

X

SEAL - "O" ring, poppet

1шт.

108

O3991CS

X

SEAL - "O" ring, shell and adjusting screw (Use D31410)

2шт.

D31410

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

SEAL - "O" ring, shell and adjusting screw

2шт.

109

D26859

X

WASHER - gasket, shell (Fibre) (61/64" I.D. x 1-1/4" O.D. x 1/32" thick) Use D30681

1шт.

D30681

GASKET

WASHER - gasket, shell (Fibre) (61/64" I.D. x 1-1/4" O.D. x 1/32" thick)

1шт.

110

D26848

SHELL - cartridge

1шт.

111

D26855

SEAT

- floating

1шт.

112

A11026

GASKET

SEAL - "O" ring, plunger

1шт.

113

D26853

BACK-UP RING

RING - backup, plunger seal

1шт.

114

D26852

PLUNDER - displacement

1шт.

115

D26860

VALVE SPRING

SPRING - compression

1шт.

116

D26849

SCREW - spring adjusting

1шт.

117

D26850

NUT

- lock, adjusting screw

1шт.

118

D26845

SECTION - valve outlet

1шт.

119

D26846

STUD

ASSEMBLY - valve

4шт.
