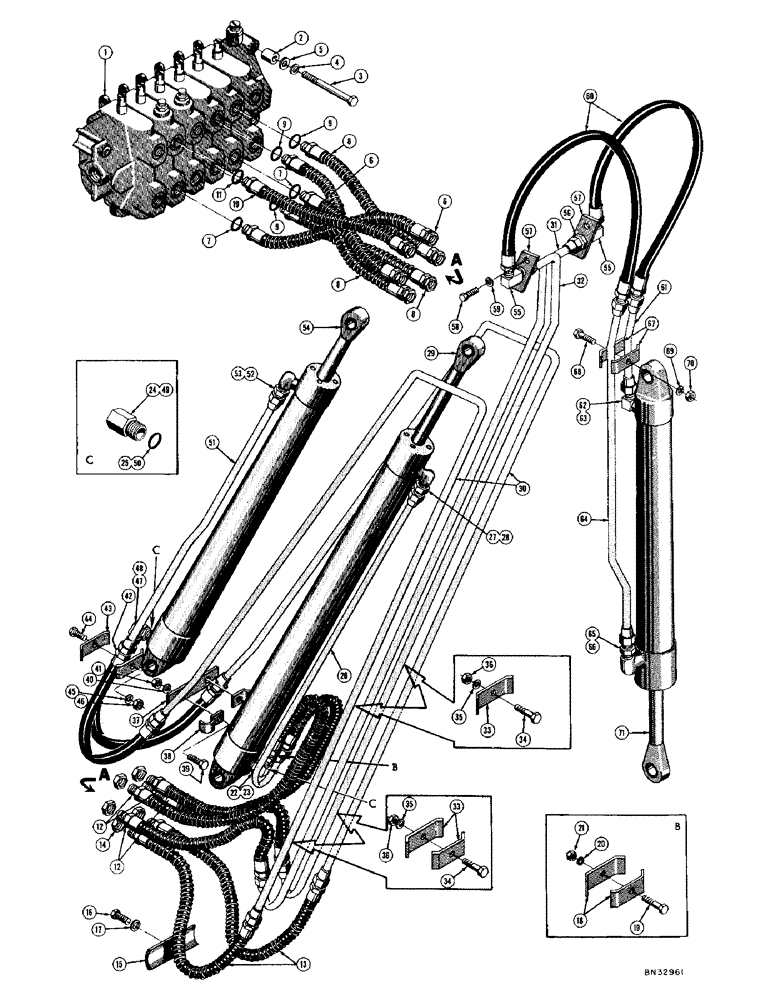

Запчасти Case 420C (288) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D27563

LOCK VALVE

VALVE - control, Backhoe (See Figure 292 for breakdown)

1шт.

2

D26404

SPACER - valve to mounting bracket

3шт.

3

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

4

92-8

LOCK WASHER,1/2"

3шт.

5

95-8

WASHER,1/2"

- standard wrot, R.H. Backhoe control valve mounting bolts (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

2шт.

6

D25090

X

HOSE - lower ports of bucket and boom cylinder control valve sections to bulkhead (1/2" I.D. x 7/8" O.D. x 20-1/4") Use D29155

2шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29155 hose

1шт.

8

D25089

X

HOSE - crowd cylinder control valve section, upper and lower ports; also bucket cylinder control valve section, upper port (1/2" I.D. x 31/32" O.D. x 18-3/4") See D25089

3шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29154 hose

1шт.

10

D25816

X

HOSE - upper port of boom cylinder control valve section to bulkhead (1/2" I.D. x 7/8" O.D. x 17-1/2") Use D29153

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25816 hose

1шт.

10

D29153

HOSE ASSY.

HOSE - upper port of boom cylinder control valve section to bulkhead (1/2" I.D. x 31/32" O.D. x 17-1/2") See D25816

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29153 hose

1шт.

12

D24345

HOSE ASSY.

HOSE - bulkhead to boom and bucket cylinders (1/2" I.D. x 7/8" O.D. x 31")

4шт.

13

D24347

HOSE ASSY.

HOSE - bulkhead to crowd cylinders tubes (1/2" I.D. x 7/8" O.D. x 27")

2шт.

14

D25828

NUT - lock, jam (7/8" - 14 NF)

6шт.

15

D28736

PLATE - clamp, hose retaining

1шт.

16

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2 - 13 NC x 3/4

1шт.

17

92-8

LOCK WASHER,1/2"

1шт.

18

D20045

PLATE ASSY.

PLATE - tube clamp

2шт.

19

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

20

92-5

LOCK WASHER,5/16"

1шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

22

D25567

ELBOW

- female swivel, 90 degrees (5/8" JIC male x 3/4" JIC female)

1шт.

23

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow

1шт.

24

D29017

X

ADAPTER - female, lower port of boom cylinder (3/4" JIC male x 5/8" JIC female) If used

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29017 adapter

1шт.

26

D29020

TUBE

- hose to upper port of boom cylinder

1шт.

27

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC)

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

29

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Without tie rods) See Figure 304 for breakdown

1шт.

30

D24071

TUBE - bulkhead hose to crowd cylinder

2шт.

31

D24065

TUBE - bulkhead hose to R.H. elbow on boom

1шт.

32

D24066

TUBE - bulkhead hose to L.H. elbow on boom

1шт.

33

32978

PLATE ASSY.

PLATE - tube clamp; D24065, D24066, and D24071 tubes

6шт.

34

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

4шт.

37

(Not used)

1шт.

38

49789

CLAMP

- D24071 tube

2шт.

39

13-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

(Not used)

1шт.

42

D24349

HOSE ASSY.

HOSE - tubes on boom to crowd cylinder (3/4" I.D. x 1-5/32" O.D. x 23")

2шт.

43

D20045

PLATE ASSY.

PLATE - tube clamp, D24349 hose at crowd cylinder

2шт.

44

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

45

92-5

LOCK WASHER,5/16"

1шт.

46

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

47

D25567

ELBOW

- female swivel, 90 degrees (5/8" JIC male x 3/4" JIC female)

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow

1шт.

49

D29017

X

ADAPTER - female, lower port of crowd cylinder (3/4" JIC male x 5/8" JIC female) If used

1шт.

50

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29017 adapter

1шт.

51

D29026

TUBE

- hose to upper port of crowd cylinder

1шт.

52

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC)

1шт.

53

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

54

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) See Figure 306 for breakdown

1шт.

55

D25568

ELBOW UNION

ELBOW - 90 degrees female, special (3/4" JIC male x 3/4" NPT female)

2шт.

56

D26231

NUT

- lock, jam (1-1/16" - 12 NF)

2шт.

57

D25585

PLATE - spacer, D25568 elbow

2шт.

58

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

59

92-6

LOCK WASHER,3/8"

4шт.

60

D28705

HOSE

- elbow on boom to bucket cylinder (3/4" I.D. x 1-5/32" O.D. x 40")

2шт.

61

D28701

TUBE

- hose to upper port of bucket cylinder

1шт.

62

D25566

ELBOW

- male, 90 degrees (3/4" JIC x 5/8" JIC) Use D29620

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25566 elbow

1шт.

62

D29620

ELBOW

- male, 90 degrees (3/4" JIC x 5/8" JIC)

1шт.

63

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D29620 elbow

1шт.

64

D29022

TUBE

- hose to lower port of bucket cylinder

1шт.

65

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC)

1шт.

66

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector

1шт.

67

D20045

PLATE ASSY.

PLATE - tube clamp

2шт.

68

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

1шт.

69

92-5

LOCK WASHER,5/16"

1шт.

70

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

71

D27753

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (Without tie rods) See Figure 308 for breakdown

1шт.
