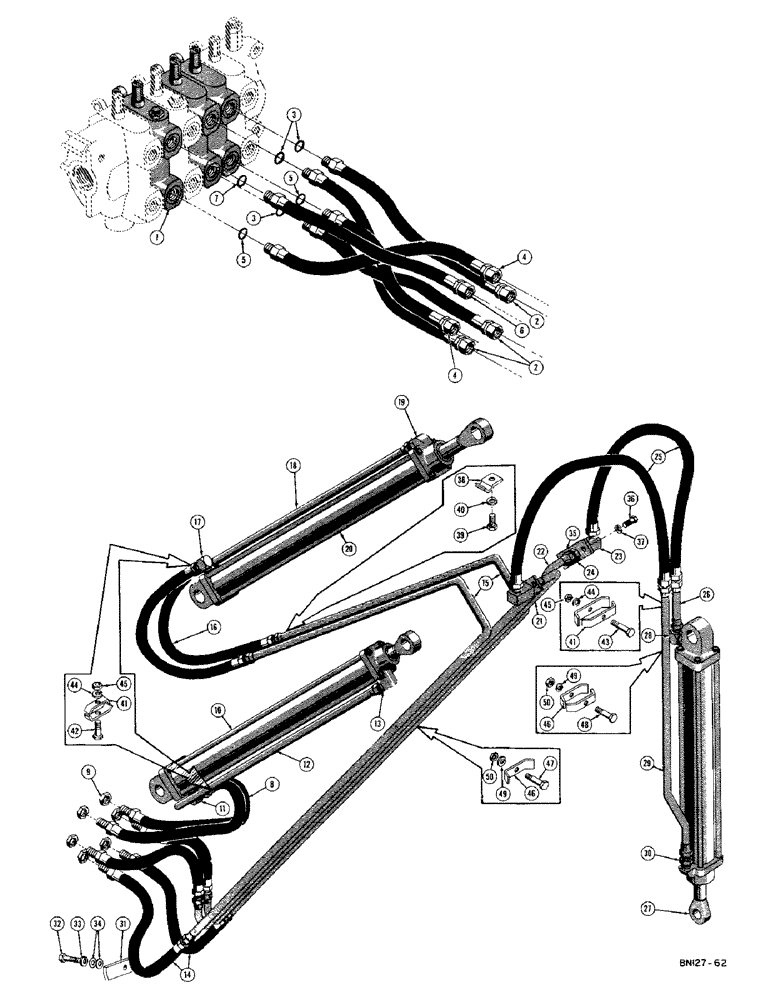

Запчасти Case 420C (284) - BOOM, CROWD AND BUCKET CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D27563

LOCK VALVE

VALVE - control, Backhoe (See Figure 292 for breakdown)

1шт.

2

D25089

X

HOSE - crowd cylinder control valve section, upper and lower ports; also bucket cylinder control valve section, upper port (1/2" I.D. x 31/32" O.D. x 18-3/4") Use D29154

3шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25089 hose

1шт.

2

D29154

HOSE ASSY.

HOSE - crowd cylinder control valve section, upper and lower ports; also bucket cylinder control valve section, upper port (1/2" I.D. x 31/32" O.D. x 18-3/4") See D25089

3шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25089 hose

1шт.

4

D29155

HOSE ASSY.

HOSE - lower parts of bucket and boom cylinder control valve sections to bulkhead (1/2" I.D. x 7/8" O.D. x 20-1/4") Use D29155

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25090 hose

1шт.

4

D29155

HOSE ASSY.

HOSE - lower ports of bucket and boom cylinder control valve sections to bulkhead (1/2" I.D. x 31/32" O.D. x 20-1/4") See D25090

2шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29155 hose

1шт.

6

D25816

X

HOSE - upper port of boom cylinder control valve section to bulkhead (1/2" I.D. x 7/8" O.D. x 17-1/2") use D29153

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D25816 hose

1шт.

6

D29153

HOSE ASSY.

HOSE - upper ports of boom cylinder control valve section to bulkhead (1/2" I.D. x 31/32" O.D. x 17-1/2") See D25816

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O" ring, D29153 hose

1шт.

8

D24345

HOSE ASSY.

HOSE - bulkhead to boom and bucket cylinders (1/2" I.D. x 7/8" O.D. x 31")

4шт.

9

D25828

NUT - lock, jam (7/8" - 14 NF)

4шт.

10

D27156

CYLINDER ASSY.

CYLINDER - boom, hydraulic (With tie rods) early production - when stock is exhausted, order D27751 cylinder and 218-5065 connector (See Figure 304 for breakdown)

1шт.

10

D27751

CYLINDER ASSY.

CYLINDER - boom, hydraulic (Without tie rods) late production see D27156 (See Figure 304 for breakdown)

1шт.

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector (Not shown)

1шт.

11

D25567

ELBOW

- female swivel, 90 degrees (5/8" JIC male x 3/4" JIC female)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow (Not shown)

1шт.

12

D26383

TUBE - hose to upper port of boom cylinder

1шт.

13

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (3/4" JIC x 1/2" NPT)

1шт.

14

D24347

HOSE ASSY.

HOSE - bulkhead to crowd cylinder tubes (1/2" I.D. x 7/8" O.D. x 27")

2шт.

15

D24071

TUBE - bulkhead hose to crowd cylinder

2шт.

16

D24349

HOSE ASSY.

HOSE - tubes to crowd cylinder (3/4" I.D. x 15/32" O.D. x 23")

2шт.

17

D25567

ELBOW

- female swivel, 90 degrees (5/8" JIC male x 3/4" JIC female)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D25567 elbow (Not shown)

1шт.

18

D26381

TUBE - hose to upper port of crowd cylinder

1шт.

19

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (3/4" JIC x 1/2" NPT)

1шт.

20

D27489

CYLINDER - crowd, hydrraulic (With tie rods) early production - when stock is exhausted, order D27752 cylinder and 218-5065 connector (See Figure 306 for breakdown)

1шт.

20

D27752

CYLINDER ASSY.

CYLINDER - crowd, hydraulic (Without tie rods) late production - see D27489 (See Figure 306 for breakdown)

1шт.

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector (Not shown)

1шт.

21

D24065

TUBE - bulkhead hose to lower port of bucket cylinder

1шт.

22

D24066

TUBE - bulkhead hose to upper port of bucket cylinder

1шт.

23

D25568

ELBOW UNION

ELBOW - 90 degrees female, special (3/4" JIC male x 3/4" NPT female)

2шт.

24

D26231

NUT

- lock, jam (1-1/16" - 12 NF)

2шт.

25

D24079

X

HOSE - tube to bucket cylinder (3/4" I.D. x 1-5/32" O.D. x 40") used on backhoe serial #4059320 and after (See D24079)

2шт.

26

D24077

X

TUBE - hose to upper port of bucket cylinder (Used up to backhoe serial #4059320) Use D28701

1шт.

D28701

TUBE

- hose to upper port of bucket cylinder (Used on backhoe serial #4059320 and after) See D24077

1шт.

27

D25045

CYLINDER - bucket, hydraulic (With tie rods) early production - when stock is exhausted, order D27753 cylinder and 218-5065 connector (See Figure 308 for breakdown)

1шт.

27

D27753

CYLINDER ASSY.

CYLINDER - bucket, hydraulic (With tie rods) late production - see D25045 (See Figure 308 for breakdown)

1шт.

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

CONNECTOR - male (3/4" JIC x 5/8" JIC) cylinder without tie rods only (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5065 connector (Not shown)

1шт.

28

D25566

ELBOW

- male, 90 degrees (3/4" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D29620 elbow

1шт.

29

D24076

TUBE - hose to port of bucket cylinder (Used up to backhoe serial #4059320) Use D28703

1шт.

D28703

TUBE

- hose to lower port of bucket cylinder (Used on backhoe serial #4059320 and after) See D24076

1шт.

30

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

CONNECTOR - male (3/4" JIC x 1/2" NPT)

1шт.

31

D26348

PLATE - clamp, hose retaining (Used up to Backhoe serial #4059320) Use D28736

1шт.

D28736

PLATE - clamp, hose retaining (Used on Backhoe serial #4059320 and after) See D26348

1шт.

32

164-571

BHCS - 1/2" - 13 NC x 1" (D26348 clamp plate) See 13-812 Hex Soc But Hd, 1/2"-13 x 1"

1шт.

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

HHCS - 1/2" - 13 NC x 1" (D28736 clamp plate) See 164-571

1шт.

33

92-8

LOCK WASHER,1/2"

1шт.

34

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) D26348 clamp plate 1/2"

2шт.

35

D25585

PLATE - spacer, D25568 elbow

2шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

37

92-6

LOCK WASHER,3/8"

4шт.

38

49789

CLAMP

- tube

2шт.

39

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

40

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

41

D20045

PLATE ASSY.

PLATE - tube clamp

6шт.

42

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

43

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

1шт.

44

92-5

LOCK WASHER,5/16"

3шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

3шт.

46

32978

PLATE ASSY.

PLATE - tube clamp

8шт.

47

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

4шт.

48

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

1шт.

49

92-5

LOCK WASHER,5/16"

5шт.

50

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

5шт.
