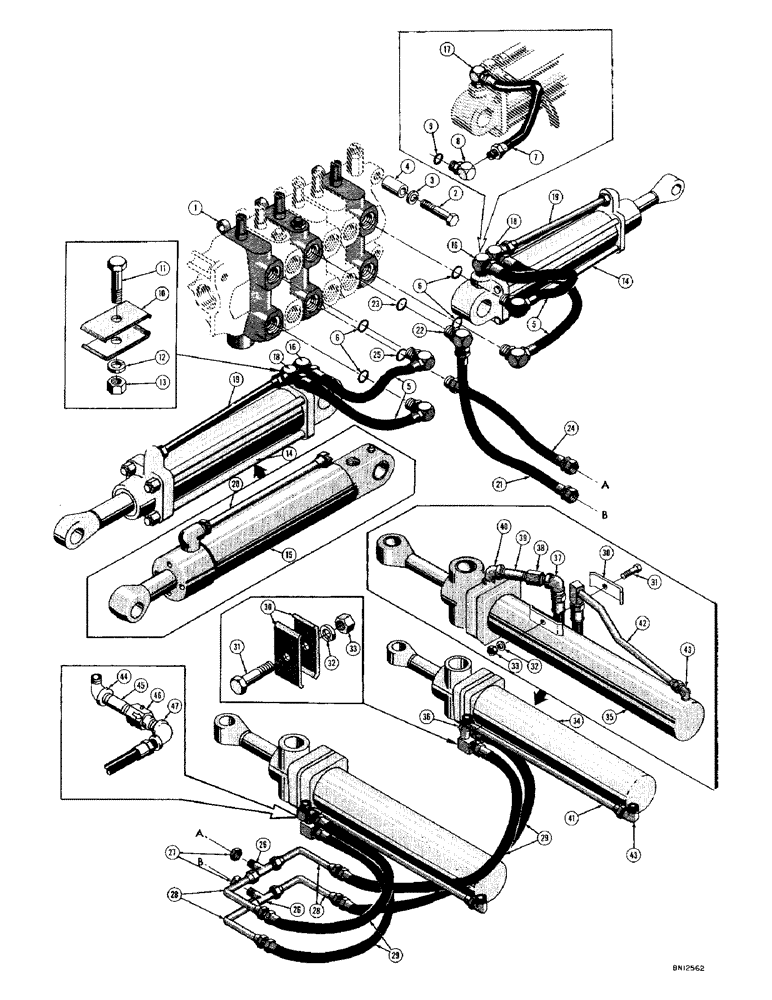

Запчасти Case 420C (280) - SWING AND STABILIZER CYLINDER HYDRAULICS, VALVE (07) - HYDRAULIC SYSTEM

1

D27563

LOCK VALVE

VALVE - control, backhoe (See Figure 292 for breakdown)

1шт.

2

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

95-8

WASHER,1/2"

- standard wrot, R.H. backhoe control valve mounting bolts (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) Not shown 1/2"

2шт.

4

D26404

SPACER - valve to mounting bracket

3шт.

5

D24409

HOSE - valve to stabilizer cylinders (3/8" I.D. x 3/4" O.D. x 20") Use D29311, D29145 and D29313, hyd

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D24409 hose, stabilizer cyl hyd

1шт.

7

D29311

HOSE - valve to stabilizer cylinders (3/8" I.D. x 3/4" O.D. x 20") See D24409, hyd

4шт.

8

D29145

ELBOW UNION

ELBOW - female, 90 degrees (3/8" NPT female x 3/4" JIC male) Used with D29311 (See D24409), stabilizer cyl hyd

4шт.

9

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D29145 elbow, stabilizer cyl hyd

1шт.

10

32978

PLATE ASSY.

PLATE - clamp, stabililzer cyl hyd

4шт.

11

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4, stabilizer cyl hyd

2шт.

12

92-5

LOCK WASHER,5/16"

stabilizer cyl hyd 5/16"

2шт.

13

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), stabilizer cyl hyd

2шт.

14

D25052

CYLINDER - hydraulic, stabilizer (With tie rods) When stock is exhausted, order D27754 cylinder and D27859 tube (See Figure 300 for breakdown)

2шт.

15

D27754

CYLINDER

- hydraulic, stabilizer (Without tie rods) See D25052 (See Figure 300 for breakdown)

2шт.

16

D23974

ELBOW

- female, 90 degrees (5/8" JIC male x 3/8" NPT female) Used with D24409 hose - See D29313, stabilizer cyl hyd

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D23974 elbow (Not shown), stabilizer cyl hyd

1шт.

17

D29313

ELBOW

- female swivel, 90 degrees (5/8" JIC male x 3/8" NPT female) Used with D29311 hose - See D24409 and D23974, stabilizer cyl hyd

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D29313 elbow (Not shown), stabilizer cyl hyd

1шт.

18

D26361

FITTING

ELBOW - female, 90 degrees (3/8" NPT female x 5/8" JIC male), stabilizer cyl hyd

2шт.

19

D26375

TUBE - hose to outer stabilizer cylinder port (Cylinder with tie rods only - See D27859), hyd

2шт.

20

D27859

TUBE

- hose to outer stabilizer cylinder port (Cylinder without tie rods only - See D26375), hyd

2шт.

21

D25091

HOSE - upper valve port to lower bulkhead tee (1/2" I.D. x 7/8" O.D. x 18-3/4") Use D29156

1шт.

D29156

HOSE - upper valve port to lower bulkhead tee (1/2" I.D.x 31/32" O.D. x 18-3/4") See D25091, swing cyl hyd

1шт.

22

D25819

ELBOW - female, 90 degrees (1/2" NPT female x 3/4" JIC male), swing cyl hyd

1шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D25819 elbow, swing cyl hyd

1шт.

24

D25816

X

HOSE - lower valve port to upper bulkhead tee (1/2" I.D. x 7/8" O.D. x 17-1/2") Use D29153, swing cyl hyd

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D25816 hose, swing cyl hyd

1шт.

24

D29153

HOSE ASSY.

HOSE - lower valve port to upper bulkhead tee (1/2" I.D. x 31/32" O.D. x 17-1/2") See D25816, swing cyl hyd

1шт.

25

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D29153 hose, swing cyl hyd

1шт.

26

D25272

TEE - bulkhead (1/2" JIC x 1/2" JIC x 5/8" JIC), swing cyl hyd

2шт.

27

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8" - 14 NF), swing cyl hyd

1шт.

28

D25084

TUBE - bulkhead tee to hose, swing cyl hyd

4шт.

29

D24413

HOSE ASSY.

HOSE - bulkhead tee tube to swing cylinder (3/8" I.D. x 3/4" O.D. x 20-1/2"), hyd

4шт.

30

32978

PLATE ASSY.

PLATE - clamp, swing cyl hyd

4шт.

31

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4, swing cyl hyd

2шт.

32

92-5

LOCK WASHER,5/16"

swing cyl hyd 5/16"

2шт.

33

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), swing cyl hyd

2шт.

34

D25025

CYLINDER - hydraulic, swing (Early production - use D27750) See Figure 302 for breakdown

2шт.

35

D27750

CYLINDER ASSY.

CYLINDER - hydraulic, swing (Late production - See D25025) See Figure 302 for breakdown

2шт.

36

D26372

ELBOW UNION

ELBOW - street, 90 degrees (3/8" NPT female x 3/8" NPT male) Used up to backhoe serial #4059209 - See 221-561 elbow, 221-185 nipple, 221-382 elbow, and D28156 valve (Also See D11354), swing cyl hyd

2шт.

37

221-382

ELBOW

- female reducing pipe, 90 degrees (3/8" NPT x 1/2" NPT) Used on backhoe serial #4059209 and after - See D26372, swing cyl hyd

2шт.

38

D28156

VALVE - flow control (Used on backhoe serial #4059209 and after - See D26372, swing cyl hyd

2шт.

139-4

PIN - taper (#00 x 1-1/2") Not shown

1шт.

39

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe (1/2" NPT x 1-1/8") used on backhoe serial #4059209 and after - See D26372, swing cyl hyd

2шт.

40

221-561

ELBOW

- reducing street, 90 degrees (3/8" NPT x 1/2" NPT) Used on backhoe serial #4059209 and after - See D26372, swing cyl hyd

2шт.

41

D26373

TUBE - hose to rear swing cylinder port (Used up to backhoe serial #4059320 - See D28707, hyd

2шт.

42

D28707

TUBE - hose to rear swing cylinder port (Used on backhoe serial #4059320 and after - See D26373, hyd

2шт.

43

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- male, 90 degrees (1/2" JIC x 1/2" JIC), swing cyl hyd

2шт.

D11354

KIT - flow control valve for swing cylinders

1шт.

44

221-561

ELBOW

- reducing street, 90 degrees (3/8" NPT x 1/2" NPT), D11354 flow control valve kit (for field installation)

2шт.

45

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe (1/2" NPT x 1-1/8"), D11354 flow control valve kit (for field installation)

2шт.

46

D28156

D11354 flow control valve kit (for field installation)

2шт.

139-4

PIN - taper (#00 x 1-1/2") Not shown, D11354 flow control valve kit (for field installation)

1шт.

47

221-382

ELBOW

- reducing female pipe, 90 degrees (3/8" NPT x 1/2" NPT), D11354 flow control valve kit (for field installation)

2шт.
