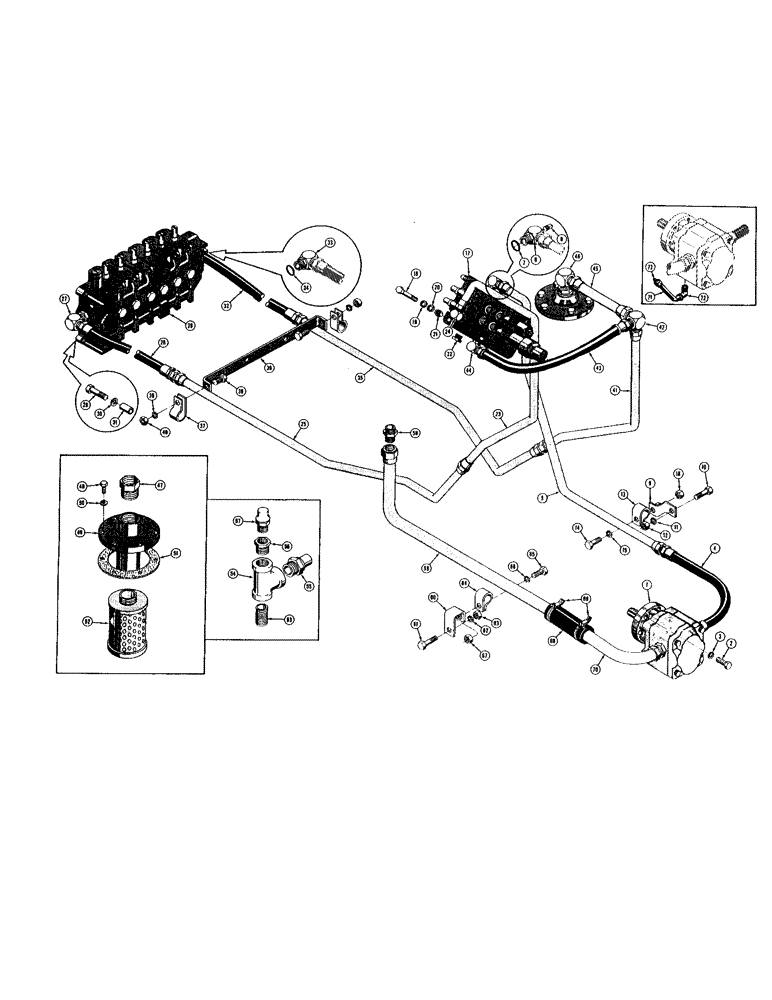

Запчасти Case 420C (276) - BACKHOE PRIMARY HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 18-1/2 G.P.M. at 1850 pump R.P.M. (1850 engine R.P.M.) See Figure 154 for breakdown

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D27675

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 16-3/4") Use D25130 (Gas models only - see D28010)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O" ring, D27675 hose (Not shown)

1шт.

4

D25130

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 14") Gas models only - see D28010 and D29604

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring, D25130 hose (Not shown)

1шт.

4

D28010

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 13") Diesel models only (Use 1 - D29608 elbow, 1 - D29604 hose, 1 - D29606 tube, and 1 - D25156 clamp) See D25130

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring, D28010 hose (Not shown)

1шт.

4

D29604

HOSE - pump to valve inlet, front section (3/4" I.D. x 1-5/32" O.D. x 18-1/2") Diesel models only - see D25130

1шт.

D29608

ELBOW - female swivel, 45 (1" JIC female x 7/8" JIC male) Diesel models only - see D28010 (Not shown)

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

SEAL - "O"ring, D29608 elbow (Not shown)

1шт.

5

D26688

TUBE - pump to valve inlet, center section (Gas models only - see D28008)

1шт.

D28008

TUBE - pump to valve inlet, center section (Diesel models only - see D26688) Use 1 - D29608 elbow, 1 - D29604 hose, 1 - D29606 tube, and 1 - D25156 clamp (Not shown)

1шт.

D29606

TUBE - pump to valve inlet, rear section (Diesel models only - see D26688 and D28008) Not shown

1шт.

6

D26683

TEE - service (3/4" JIC male x 1" JIC male x 1/4" NPT female)

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D26683 service tee

1шт.

8

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, square head (1/4" NPT)

1шт.

9

D27673

BRACKET - tube clamp (Gas models only)

1шт.

10

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

25-1010

NUT,5/8"-11, G5

1шт.

13

D25156

CLAMP

- tube (Gas models only - see D28844) Used with D29604 hose on diesel models

1шт.

D28844

CLAMP - tube (Diesel models only - see D25156) Used with D28008 tube only

1шт.

14

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

25-115

NUT,5/16"-24, G5

- hex (5/16"-18 NC

1шт.

17

D26491

VALVE - control, loader (See Figure 162 for breakdown) When stock is exhausted, order D29615

1шт.

D29615

VALVE - control, loader (See Figure 168 for breakdown) See D26491

1шт.

18

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

95-6

WASHER,3/8"

- standard wrot ( I.D. x 7/8" O.D. x 5/64" thick) 3/8"

3шт.

21

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

22

D25783

PLUG - special, high pressure carry-over (3/4" JIC)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, large (D25783 plug) Not shown

1шт.

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

SEAL - "O"ring, small (D25783 plug) Not shown

1шт.

23

D28280

TUBE

- pressure line, loader control valve to backhoe control valve (Front section)

1шт.

24

D25135

X

ELBOW - male, 90 (3/4" JIC x 1" JIC)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D25135 elbow (Not shown)

1шт.

25

D25160

TUBE - pressure line, loader control valve to backhoe control valve (Center section)

1шт.

26

D25151

HOSE - pressure line, tube to backhoe valve inlet (3/4" I.D. x 1-5/32" O.D. x 27-1/2")

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

male, (1" JIC x 1" JIC) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, 218-5110 elbow (Not shown)

1шт.

28

D27563

LOCK VALVE

VALVE - control, backhoe (See Figure 292 for breakdown)

1шт.

29

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

30

92-8

LOCK WASHER,1/2"

3шт.

95-8

WASHER,1/2"

- standard wrot, R.H. backhoe control valve mounting bolts (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) Not shown 1/2"

2шт.

31

D26404

SPACER - valve mounting

3шт.

32

D27061

HOSE - return line, backhoe control valve outlet to lateral tee (Rear section) (3/4" I.D. x 1-1/4" O.D. x 27-1/2")

1шт.

33

D26463

FITTING

ELBOW - female, 90 degrees (1" JIC male x 3/4" NPT female)

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring, D26463 elbow

1шт.

35

D25142

TUBE - return line, backhoe control valve outlet to lateral tee (Center section)

1шт.

36

D26120

BRACKET - tube clamp

1шт.

37

D25157

CLAMP - tube

2шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

41

D28281

TUBE - return line, backhoe control valve outlet to lateral tee (Front section)

1шт.

42

D26121

TEE - lateral (1" JIC male x 1" JIC male x 1" JIC male)

1шт.

43

D28123

HOSE - return line, loader control valve outlet to lateral tee (3/4" I.D. x 1-1/4" O.D. x 18-1/4")

1шт.

44

D25354

ELBOW

- female, 90 degrees (3/4" NPT female x 3/4" JIC male)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

SEAL - "O"ring, D25354 elbow (Not shown)

1шт.

45

D25189

TUBE - return line, lateral, Serial Range: tee-filter

1шт.

46

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 1" JIC)

1шт.

47

221-96

DRAIN PLUG,Sq Soc, 2"-11 1/2, NTPF

BUSHING - reducing pipe (1-1/4" NPT x 3/4" NPT)

1шт.

48

D26685

CAP - inlet, oil filter

1шт.

49

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8" - 24 NF x 1"

6шт.

50

D29513

WASHER - sealing, nylon (3/8")

6шт.

51

36321

GASKET

- oil filter inlet cap

1шт.

52

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

53

221-130

PIPE,Nipple, 1/4" NPT x 7/8"

NIPPLE - close pipe (1/4" NPT x 7/8")

1шт.

54

221-431

TEE

- pipe (1/4" NPT x 1/4" NPT x 3/8" NPT)

1шт.

55

R15538

VALVE

- relief, vacuum (2 to 5 P.S.I.)

1шт.

56

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - reducing pipe (1/4" NPT)

1шт.

57

R15536

VALVE

- relief, pressure (10 to 20 P.S.I.)

1шт.

58

D26690

TUBE - reservoir to pump, rear section

1шт.

59

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

ADAPTER - straight male (1-1/4" NPT x 1-1/4" JIC)

1шт.

60

37753

BUSHING

BRACKET - tube clamp

1шт.

61

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

62

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

63

25-1010

NUT,5/8"-11, G5

1шт.

64

D25157

CLAMP - tube (Gas models only - see D25156)

1шт.

64

D25156

CLAMP

- tube (Diesel models only - see D25157)

1шт.

65

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

66

92-5

LOCK WASHER,5/16"

1шт.

67

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

68

D27674

HOSE - low pressure, reservoir to pump (Center section) (1-1/4" I.D. x 2" O.D. x 6") Use D23645

1шт.

D23645

HOSE

- low pressure, reservoir to pump (Center section) (1-1/4" I.D. x 2" O.D. x 5")

1шт.

69

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

70

D25144

STEM - hose, reservoir to pump (Front section)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

SEAL - "O"ring D25144 hose stem (Not shown)

1шт.

71

D28087

TUBE - pump lubrication

1шт.

72

219-82

ELBOW,90 Degree, 1/8"-27

- 90 degrees (1/8" NPT female x 1/8" NPT male)

1шт.
