Артикул
Название
Примечание
Количество

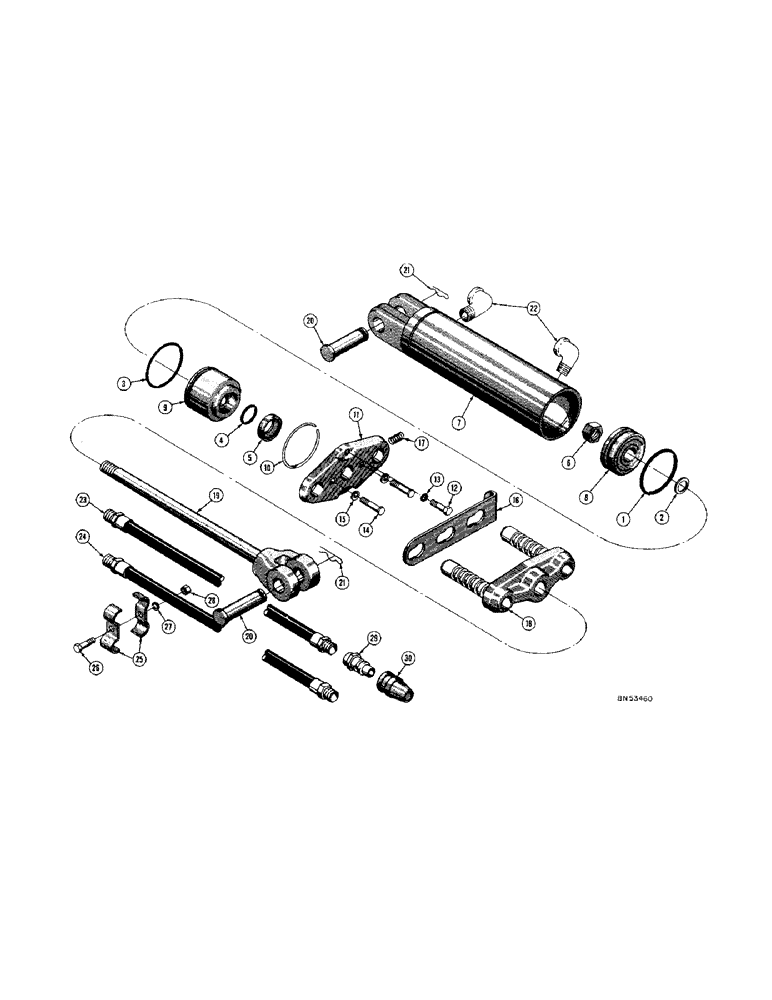

B3785AA
CYLINDER - remote, hydraulic (3/4" I.D. x 8" stroke)
1шт.
A24414
KIT
- cylinder packing
1шт.
1
O8342AB
X
SEAL - "O"ring, piston
1шт.
2
O8345AB
X
GASKET - piston rod
1шт.
3
O8347AB
X
SEAL - "O"ring, head
1шт.
4
O8346AB
X
SEAL - "O"ring, piston rod
1шт.
5
O3869AB
X
SEAL - wiper, piston rod
1шт.
6
131-369
LOCK NUT,7/8"-14, GA
NUT - lock (7/8" - 14 NF)
1шт.
7
4246AA
TUBE AND CAP - cylinder
1шт.
8
6243A
PISTON - cylinder
1шт.
9
6187A
HEAD - cylinder, inner
1шт.
10
O9303AB
X
SNAP RING - cylinder head
1шт.
11
O8354AB
GUIDE - limit stop pin
1шт.
12
13-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
HHCS - 5/16" - 18 NC x 1-1/4"
2шт.
13
92-5
LOCK WASHER,5/16"
2шт.
14
O8601AB
X
SCREW - stop latch
2шт.
15
193-29
LOCK WASHER,Int Tooth, 5/16"
WASHER, LOCK, Int Tooth, 5/16"
2шт.
16
3859AA
X
LATCH - limit stop
1шт.
17
O8602AB
X
SPRING - limit stop latch
1шт.
18
3756AA
STOP AND PIN - limit
1шт.
19
4417AA
ROD - piston (1-1/8" dia.)
1шт.
20
O8361AB
X
PIN - mounting, cylinder
2шт.
21
VC1419
X
PIN - hair pin cotter
2шт.
22
221-414
FITTING,90 Degree, 1/2"-14, NPT
ELBOW - street, 90 degrees (1/2" NPT)
2шт.
23
A20816
HOSE
- coupling to remote cylinder, front (106" long)
1шт.
24
A20817
HOSE
- coupling to remote cylinder, rear (118" long)
1шт.
25
O8681AB
X
CLAMP - hydraulic hose
2шт.
26
14-512
BOLT,Hex, 5/16" - 24 x 3/4", Gr 5, Full Thd
1шт.
27
92-5
LOCK WASHER,5/16"
1шт.
28
25-115
NUT,5/16"-24, G5
- hex (5/16"-24 NF)
1шт.
29
4025AA
X
COUPLING - pull behind, male (See Figure 254 for breakdown)
2шт.
30
4026AA
X
COUPLING - pull behind, female (See Figure 254 for breakdown)
2шт.
Выбрано товаров: 32
