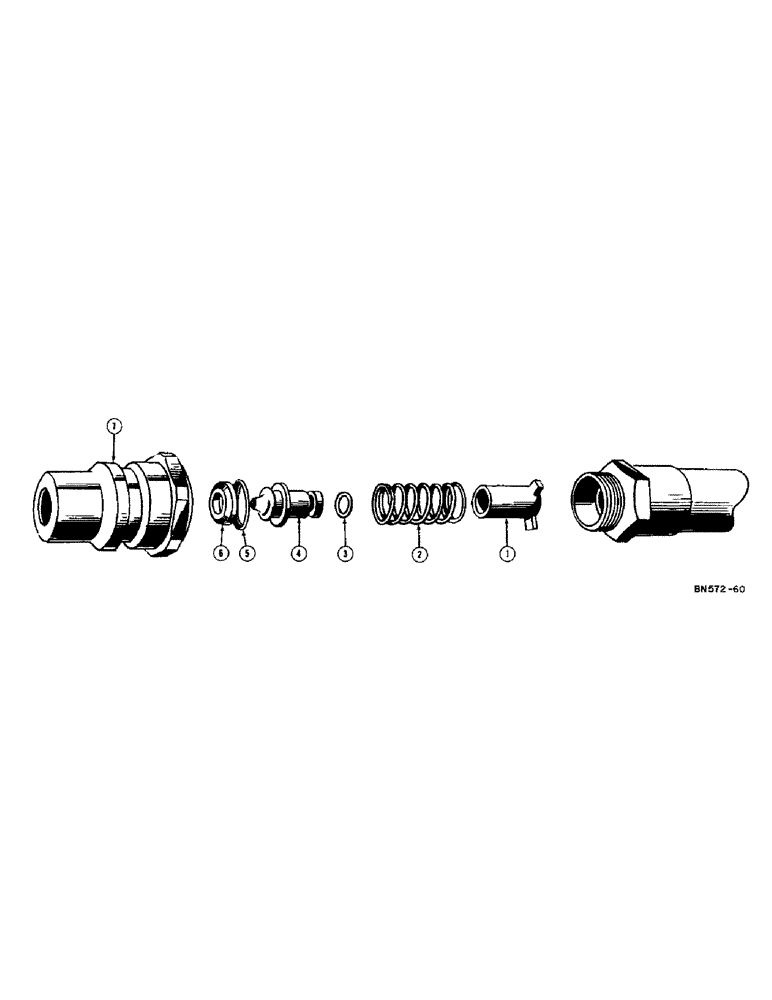

Запчасти Case 420C (254[1]) - 4025AA PULL BEHIND COUPLING - MALE (07) - HYDRAULIC SYSTEM

1

A9634

SLEEVE

- coupling plug piston

1шт.

2

O8375AB

X

SPRING - piston

1шт.

3

O8386AB

X

SEAL - "O"ring, piston sleeve

1шт.

4

O8859AB

X

PISTON - coupling plug

1шт.

5

A11325

X

RETAINER - seal

1шт.

6

O8372AB

X

SEAL - piston

1шт.

7

O8381AB

X

BODY - male plug coupling

1шт.

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- adapter to connect Case hydraulic hose to 1/2" female pipe connection (Has 1/2" male pipe thread on one end and 7/8" - 18 NF female thread on the other end)

1шт.

O9466AB

X

ADAPTER - adapter to adapt Case pull behind couplings to hydraulic hose lines having 1/2" pipe thread (Has 1/2" female pipe thread on one end and 7/8" - 18 NF male thread on the other end)

1шт.
