Запчасти Case 420C (248) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR OR THREE POINT HITCH) (07) - HYDRAULIC SYSTEM

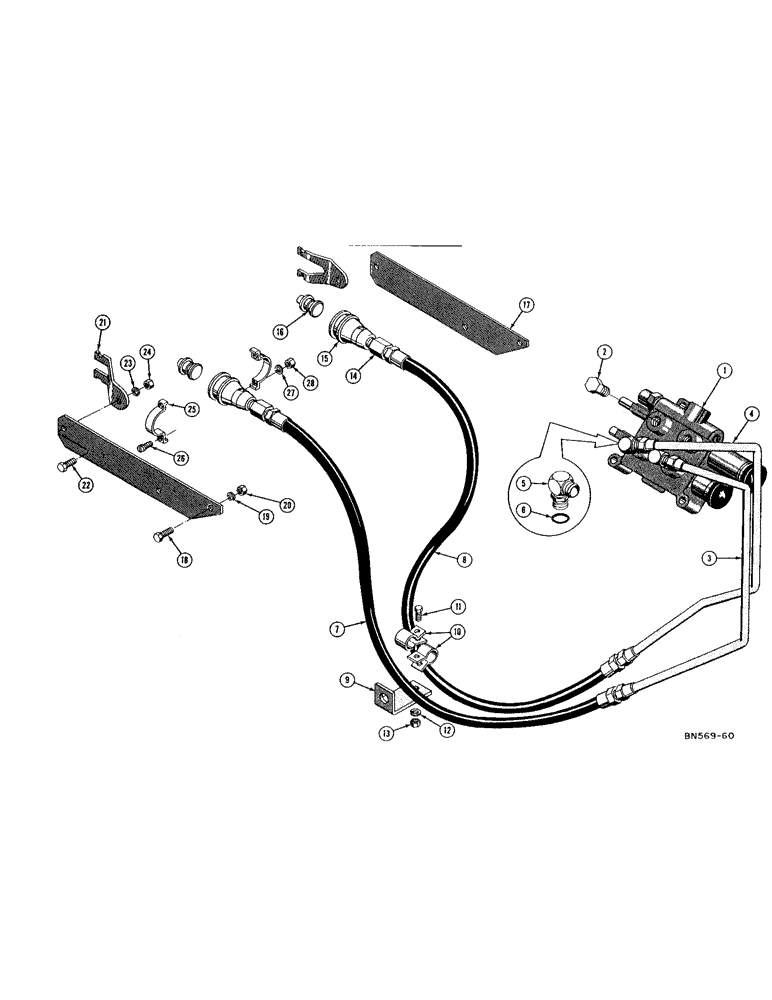

Схема запчастей Case 420C - (248) - PULL BEHIND HYDRAULICS (WITH DRAWBAR TRACTOR OR THREE POINT HITCH) (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D25450

VALVE - control (See Figure 160 for breakdown)

1шт.

2

86512512

PLUG,7/8" - 14 ORB

(5/8" JIC) Hex Hd, 7/8"-14 ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5157 plug (Not shown)

1шт.

3

D27023

TUBE - R.H. front control valve port to R.H. hose

1шт.

4

D27021

TUBE - R.H. rear control valve port to L.H. hose

1шт.

5

D23973

ELBOW - male, 90 degrees (1/2" JIC x 5/8" JIC)

2шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D23973 elbow

1шт.

7

D27030

HOSE - tube to R.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 38-1/2") Use D28685

1шт.

D28685

HOSE - tube to R.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 45-1/2") Use D27030

1шт.

8

D27028

HOSE - tube to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 48-1/4") Use D28684

1шт.

D28684

HOSE - tube to L.H. pull behind coupling (1/2" I.D. x 7/8" O.D. x 52-1/4") See D27028

1шт.

9

D27027

BRACKET - hose clamp

1шт.

10

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose retaining

2шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

14

O9466AB

X

ADAPTER - hose to pull behind coupling (1/2" NPT x 5/8" JIC)

2шт.

15

4026AA

X

COUPLING - pull behind, female (See Figure 254 for breakdown)

2шт.

4025AA

X

COUPLING - pull behind, male (See Figure 254 for breakdown)

2шт.

16

O8652AB

X

PLUG - dust (Use A22768)

2шт.

A22768

PLUG

- dust (See O8652AB)

2шт.

17

38505

BRACKET - mounting

2шт.

18

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

4шт.

21

O8388AB

X

BRACKET - mounting, pull behind coupling

2шт.

22

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

25

O8606AB

X

CLAMP - pull behind coupling

4шт.

26

173-79

SCREW,Sl Rnd Hd, #8 - 32 x 5/8"

RHMS - #8 - 32 NC x 5/8"

4шт.

27

192-6

LOCK WASHER,#8

WASHER, LOCK, #8

4шт.

28

129-6

NUT,#8-32

4шт.

Выбрано товаров: 33
