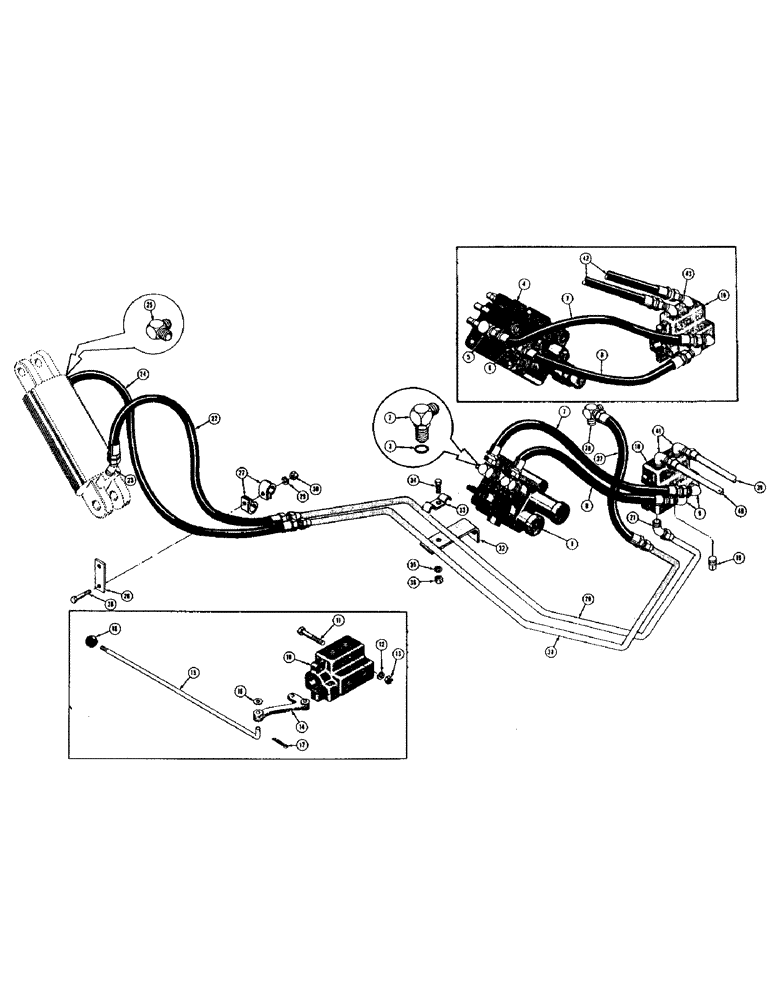

Запчасти Case 420C (242) - THREE POINT HITCH HYDRAULICS (WITH LOADER OR DOZER) (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See Figure 160 for breakdown) hydraulic dozer models only

1шт.

D27049

VALVE - control (See Figure 158 for breakdown) mechanical dozer models only

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (L.H. valve ports) (5/8" JIC x 5/8" JIC) dozer models only

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow

1шт.

4

D26491

VALVE - control (See Figure 162 for breakdown) loader models only (When stock is exhausted, order D29615)

1шт.

D29615

VALVE - control (See Figure 168 for breakdown) loader models only (See D26491)

1шт.

5

D23143

FITTING

ELBOW - male, 90 degrees (Extra long) R.H. rear valve port (5/8" JIC x 5/8" JIC) loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, D23143 elbow (Not shown)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (R.H. front control valve port) (5/8" JIC x 5/8" JIC) loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk, 218-5107 elbow (Not shown)

1шт.

7

D28115

HOSE

- rear control valve port to L.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 27-1/2")

1шт.

8

D28117

HOSE

- front control valve port to R.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 23-1/2")

1шт.

9

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 5/8" JIC)

2шт.

10

D26726

VALVE

- diversion (See Figure 156 for breakdown)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

2шт.

14

D27656

HANDLE - control, diversion valve

1шт.

15

D26709

ROD

- control, diversion valve handle

1шт.

16

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1-1/4" O.D. x 5/64" thick)

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

70213

KNOB

- control rod

1шт.

19

221-5

DRAIN PLUG,Sq Hd, 1/4"-14 NPTF

PLUG - pipe, square head (3/4" NPT)

1шт.

20

D26712

TUBE - R.H. bottom diversion valve port to lower cylinder port, front section

1шт.

21

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 5/8" JIC)

1шт.

22

D26719

HOSE - R.H. bottom diversion valve port to lower cylinder port, rear section (1/2" I.D. x 13/16" O.D. x 29-1/4", without spring protection) When stock is exhausted, order D28683

1шт.

D28683

FLEXIBLE HOSE

HOSE - R.H. bottom diversion valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 29-1/4", with spring protection) See D26719

1шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

1шт.

24

D26814

X

HOSE - upper cylinder port to filter, rear section (1/2" I.D. x 15/16" O.D. x 39") Use D28111

1шт.

D28111

HOSE ASSY.

HOSE - upper cylinder port to filter, rear section (1/2" I.D. x 7/8" O.D. x 39") See D26814

1шт.

25

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC)

1шт.

26

D20307

BRACKET - hose clamp

1шт.

27

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose retaining

2шт.

28

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

1шт.

30

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

31

D26710

TUBE - upper cylinder port to filter, center section

1шт.

32

D26714

BRACKET - tube support

1шт.

33

17179

CLAMP - tube

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

35

92-5

LOCK WASHER,5/16"

1шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

37

D26812

HOSE - upper cylinder port to filter, front section (1/2" I.D. x 13/16" O.D. x 17-1/4") When stock is exhausted, order D29365

1шт.

D29365

HOSE - upper cylinder port to filter, front section (1/2" I.D. x 15/16" O.D. x 17-1/4") See D26812

1шт.

38

D26811

ELBOW - 90 degrees male, special (3/4" NPT x 5/8" JIC x 3/4" JIC)

1шт.

39

D26729

TUBE - L.H. top diversion valve port to dozer manifold, dozer models only

1шт.

40

D26727

TUBE - R.H. top diversion valve port to dozer manifold, dozer models only

1шт.

41

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 5/8" JIC) Use D29569

2шт.

D29569

X

ELBOW - male, 90 degrees (3/4" NPT x 5/8" JIC) See 218-494

2шт.

42

D27478

HOSE ASSY.

HOSE - top diversion valve ports to lift cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 22") loader models only

2шт.

43

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 5/8" JIC) Use D29569

2шт.

D29569

X

ELBOW - male, 90 degrees (3/4" NPT x 5/8" JIC) See 218-494

2шт.
