Запчасти Case 420C (236) - D31185 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

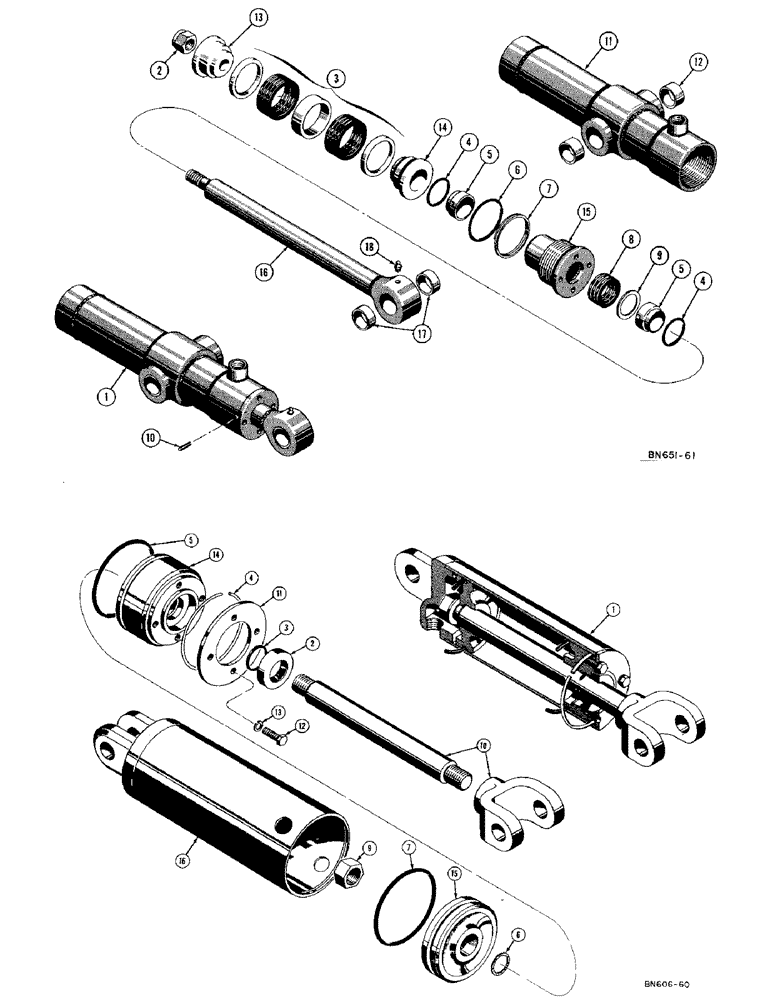

Схема запчастей Case 420C - (236) - D31185 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D31185

CYLINDER - Scarifier, hydraulic (3" I.D. x 10-1/2" stroke)

1шт.

D30129

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D28374

PACKAGE,SERVICE

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

4

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring, wiper

2шт.

5

D27706

WIPER SEAL

WIPER - piston rod

2шт.

6

O8347AB

X

SEAL - "O"ring, gland

1шт.

7

D28049

RING

- backup, gland seal

1шт.

8

D28494

SEAL

- piston rod

1шт.

9

D28498

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D31184

TUBE

- cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube trunnion

2шт.

13

D28366

PISTON

- half, piston rod nut end

1шт.

14

D28365

PISTON

- half, piston rod eye end

1шт.

15

D28048

GLAND

- piston (1-1/2" dia.)

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

1

A8282

CYLINDER - Three Point Hitch, hydraulic (4" I.D. x 6" stroke)

1шт.

A24416

X

KIT - cylinder packing, A8282 3-point hitch hydraulic

1шт.

2

O3869AB

X

SEAL - wiper, piston rod, A8282 3-point hitch hydraulic cylinder

1шт.

3

A11251

SEALING RING

- "O"ring, piston rod, A8282 3-point hitch hydraulic cylinder

1шт.

4

O9265AB

X

SNAP RING - cylinder head, A8282 3-point hitch hydraulic

1шт.

5

O8365AB

X

SEAL - "O"ring, cylinder head, A8282 3-point hitch hydraulic

1шт.

6

O8345AB

X

GASKET - piston rod, A8282 3-point hitch hydraulic cylinder

1шт.

7

O8364AB

O-RING,0.21" Thk x 3.6" ID, -342, Cl 5, 75 Duro

SEAL - "O"ring, piston, A8282 3-point hitch hydraulic cylinder

1шт.

8

RESERVED, A8282 3-point hitch hydraulic cylinder

1шт.

9

131-369

LOCK NUT,7/8"-14, GA

NUT - lock (7/8" - 14 NF)., A8282 3-point hitch hydraulic cylinder

1шт.

10

4416AA

ROD AND YOKE - piston (1-1/8" dia.), A8282 3-point hitch hydraulic cylinder

1шт.

11

A11249

CLAMP - cylinder head, A8282 3-point hitch hydraulic

1шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

A8282 3-point hitch hydraulic cylinder Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

13

92-5

LOCK WASHER,5/16"

A8282 3-point hitch hydraulic cylinder 5/16"

4шт.

14

A11248

HEAD

- A8282 3-point hitch hydraulic cylinder

1шт.

15

A8968

PISTON

- A8282 3-point hitch hydraulic cylinder

1шт.

16

A11247

TUBE AND CAP - (4" I.D.), A8282 3-point hitch hydraulic cylinder

1шт.

Выбрано товаров: 35
