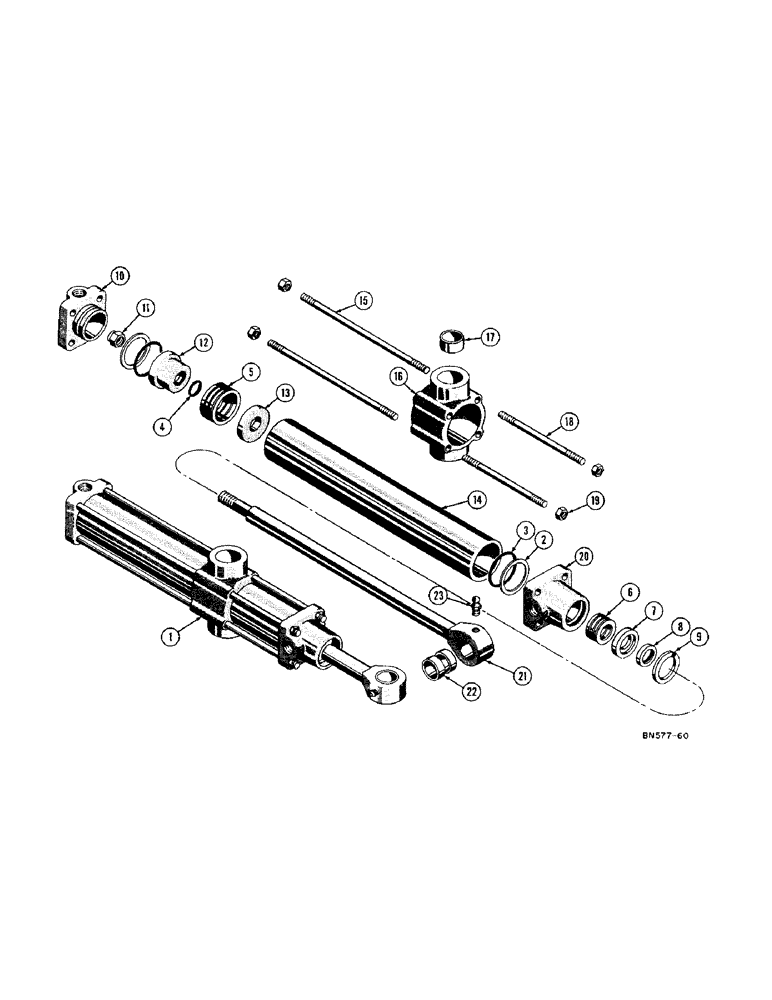

Запчасти Case 420C (234) - D27696 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

1

D27696

CYLINDER - Scarifier, hydraulic (3" I.D. x 10-1/2" stroke)

1шт.

D30137

KIT

- cylinder packing

1шт.

2

D24986

RING

- leather backup

2шт.

3

49385

O-RING,0.139" Thk x 2.734" ID, -232, Cl 6, 90 Duro

SEAL - "O"ring

2шт.

4

O3522CK

X

SEAL - "O"ring

1шт.

5

31662

PACKING

- piston

1шт.

6

17597

PACKING

- piston rod

1шт.

7

D23933

GLAND

- wiper ring

1шт.

8

D23962

SEAL

- wiper, piston rod

1шт.

9

86982912

O-RING

SNAP RING - piston rod seal, O-Ring

1шт.

10

36999

CAP COVER

CAP - end, cylinder

1шт.

11

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

12

D23735

PISTON

- cylinder

1шт.

13

31661

WASHER

- piston packing

1шт.

14

D23251

TUBE - cylinder

1шт.

15

37392

ROD - tie, long

4шт.

16

D23302

TRUNNION - cylinder

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

18

37393

TAPE

ROD - tie, short

4шт.

19

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

8шт.

20

31657

ARTICULATION

END - cylinder

1шт.

21

D20021

ROD - piston (1-1/2" dia.)

1шт.

22

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
