Запчасти Case 420C (234[1]) - D28335 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

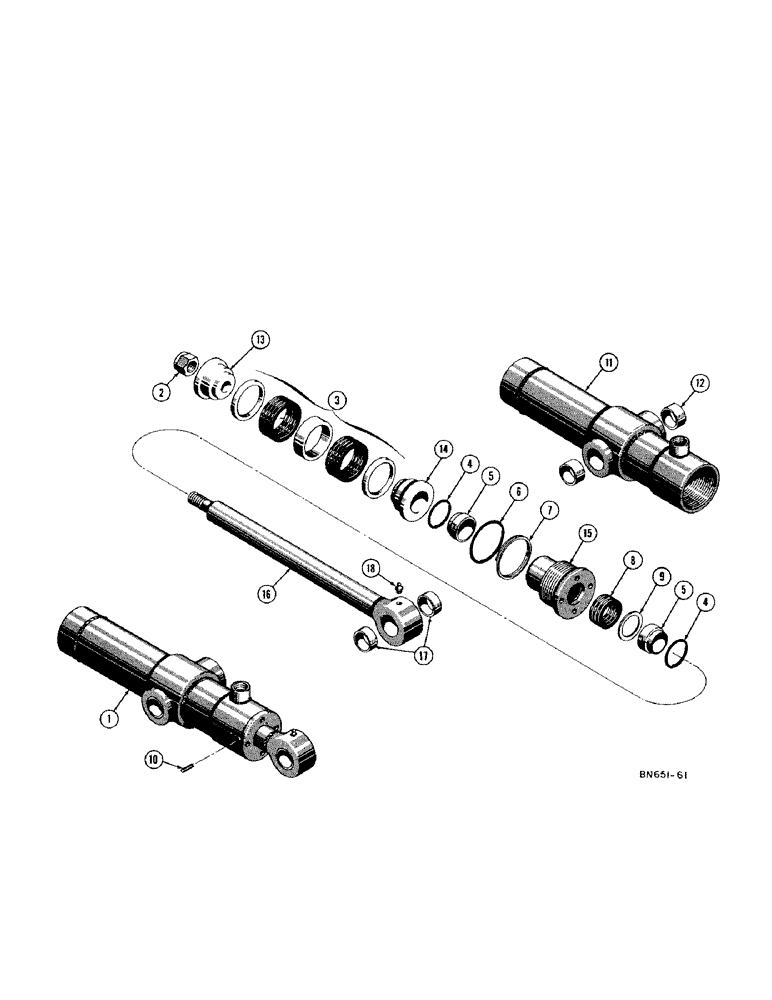

Схема запчастей Case 420C - (234[1]) - D28335 HYDRAULIC SCARIFIER CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D28335

CYLINDER - Scarifier, hydraulic (3" I.D. x 10-1/2" stroke) Use D31185

1шт.

D30129

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D28374

PACKAGE,SERVICE

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

4

D27878

O-RING,1.609" ID x 1.887" OD

SEAL - "O"ring, wiper

2шт.

5

D27706

WIPER SEAL

WIPER - piston rod

2шт.

6

O8347AB

X

SEAL - "O"ring, gland

1шт.

7

D28049

RING

- backup, gland seal

1шт.

8

D28494

SEAL

- piston rod

1шт.

9

D28498

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D28355

TUBE - cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube trunnion

2шт.

13

D28366

PISTON

- half, piston rod nut end

1шт.

14

D28365

PISTON

- half, piston rod eye end

1шт.

15

D28048

GLAND

- packing

1шт.

16

D28356

ROD - piston (1-1/2" dia.)

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 19
