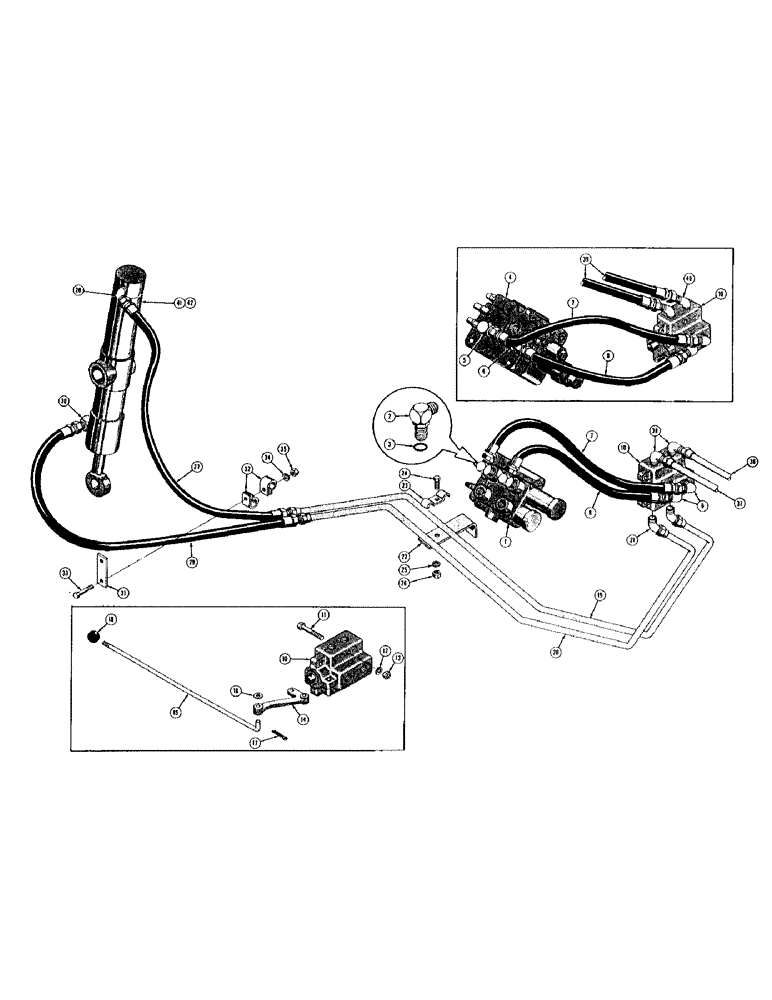

Запчасти Case 420C (230) - SCARIFIER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25450

VALVE - control (See Figure 160 for breakdown) hydraulic dozer models only

1шт.

D27049

VALVE - control (See Figure 158 for breakdown) mechanical dozer models only (Not shown)

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (L.H. valve ports on hydraulic dozer models) (5/8" JIC x 5/8" JIC) dozer models only

2шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

4

D26491

VALVE - control (See Figure 162 for breakdown) loader models only (When stock is exhausted, order D29615)

1шт.

D29615

VALVE - control (See Figure 168 for breakdown) loader models only (See D26491)

1шт.

5

D23143

FITTING

ELBOW - male, 90 degrees (Extra long) R.H. rear valve port (5/8" JIC x 5/8" JIC) loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D23143 elbow (Not shown)

1шт.

6

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (R.H. front valve port) (5/8" JIC x 5/8" JIC) loader models only

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow (Not shown)

1шт.

7

D28115

HOSE

- R.H. rear control valve port to L.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 27-1/2")

1шт.

8

D28117

HOSE

- R.H. front control valve port to R.H. front diversion valve port (1/2" I.D. x 7/8" O.D. x 23-1/2")

1шт.

9

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 5/8" JIC)

2шт.

10

D26726

VALVE

- diversion (See Figure 156 for breakdown)

1шт.

11

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

HHCS - 3/8" - 16 NC x 2-3/4"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

- hex. 3/8" - 16 NC)

2шт.

14

D26708

HANDLE - control, diversion valve (Use D27656)

1шт.

D27656

HANDLE - control, diversion valve

1шт.

15

D26709

ROD

- control, diversion, Serial Range: valve-handle

1шт.

16

95-6

WASHER,3/8"

- standard wrot (7/8" I.D. x 1" O.D. x 5/64" thick)

1шт.

17

132-46

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

18

70213

KNOB

- control rod

1шт.

19

D26712

TUBE - L.H. bottom diversion valve port to upper cylinder port, front section

1шт.

20

D26710

TUBE - R.H. bottom diversion valve port to lower cylinder port, front section

1шт.

21

218-545

ELBOW,45 Degree, 7/8-14" NPTF x 3/4"-14, 37 Degree

- male, 45 degrees (3/4" NPT x 5/8" JIC)

2шт.

22

D26714

BRACKET - tube

1шт.

23

17179

CLAMP - tube

1шт.

24

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

25

92-5

LOCK WASHER,5/16"

1шт.

26

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

1шт.

27

D26814

X

HOSE - L.H. bottom diversion valve port to upper cylinder port, rear section (1/2" I.D. x 15/16" O.D. x 39") when stock is exhausted, order D28111

1шт.

D28111

HOSE ASSY.

HOSE - L.H. bottom diversion valve port to upper cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 39") See D26814

1шт.

28

218-535

ELBOW,45 Degree, 7/8"-14, 37 Degree x 7/8"-14, NPTF

- male, 45 degrees (Upper cylinder port) (1/2" NPT x 5/8" JIC) cylinder with tie rods only (See 218-5137)

1шт.

28

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 45 degrees (Upper cylinder port) (5/8" JIC x 5/8" JIC) cylinder without tie rods only (See 218-535)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5137 elbow, (Not shown)

1шт.

29

D27073

HOSE

- R.H. bottom diversion valve port to lower cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 26-1/2")

1шт.

30

D20168

ELBOW - male, 90 degrees (Special restrictor) low cylinder port (Cylinder with tie rods only) See D28336

1шт.

30

D28336

X

ELBOW - male, 90 degrees (Special restrictor) lower cylinder port (Cylinder without tie rods only) See D20168 (Use R20839)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D28336 elbow (Not shown)

1шт.

30

R20839

FITTING

ELBOW - male, 90 degrees, (Special restrictor) lower cylinder port (Cylinder without tie rods only) See D20168

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, R20839 elbow (Not shown)

1шт.

31

D20307

BRACKET - hose clamp

1шт.

32

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- hose

2шт.

33

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

34

92-6

LOCK WASHER,3/8"

1шт.

35

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

1шт.

36

D26729

TUBE - L.H. top diversion valve port to dozer manifold, dozer models only

1шт.

37

D26727

TUBE - R.H. top diversion valve port to dozer manifold, dozer models only

1шт.

38

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 5/8" JIC) Use D29569

2шт.

39

D27478

HOSE ASSY.

HOSE - top diversion valve ports to loader lift cylinder manifold tubes (1/2" I.D. x 7/8" O.D. x 22") loader models only

2шт.

40

218-494

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 14 Male NPTF

- male, 90 degrees (3/4" NPT x 5/8" JIC) Use D29569

2шт.

D29569

X

ELBOW - male, 90 degrees (3/4" NPT x 5/8" JIC) See D218-494

2шт.

41

D27696

CYLINDER - Scarifier, hydraulic (With tie rods) See Figure 234 for breakdown (When stock is exhausted, order 1 - D31185 cylinder, 1 - 218-5137 elbow, and 1 - R20839 restrictor elbow)

1шт.

42

D28335

CYLINDER - Scarifier, hydraulic (Without tie rods) See Figure 234 for breakdown (See D27696) Use D31185

1шт.

42

D31185

CYLINDER - Scarifier, hydraulic (Without tie rods) See Figure 236 for breakdown (See D28335 and D27696)

1шт.
