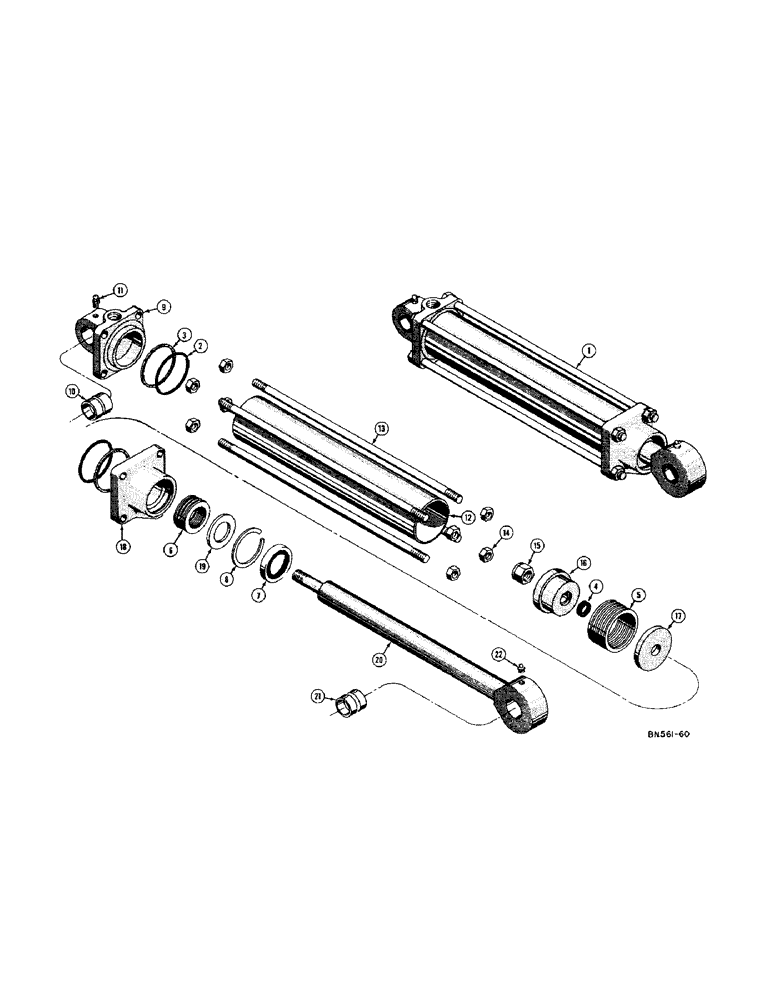

Запчасти Case 420C (226) - 37932 HYDRAULIC DOZER ANGLING CYLINDER (07) - HYDRAULIC SYSTEM

1

37932

CYLINDER - hydraulic (3-1/2" I.D. x 9-5/8" stroke)

2шт.

D30142

KIT

- cylinder packing

1шт.

2

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

SEAL - "O"ring

2шт.

3

D24987

RING

- leather backup

2шт.

4

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

SEAL - "O"ring

1шт.

5

17578

PACKING

- piston

1шт.

6

30568

PACKING

- piston rod

1шт.

7

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

8

70742

WASHER

2.50", Int, #250, rod seal

1шт.

9

D20054

END - cylinder

1шт.

10

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

12

37931

TUBE - cylinder

1шт.

13

37928

ROD - tie

4шт.

14

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2" - 20 NF)

8шт.

15

131-19

LOCK NUT,1"-14, GB

NUT - lock (1" - 14 NF)

1шт.

16

D23736

PISTON - cylinder

1шт.

17

NLS

NO LONGER SERVICED

WASHER - retainer

1шт.

18

D25596

CAP - end, cylinder

1шт.

19

D25043

WASHER

- packing, piston rod

1шт.

20

D20023

ROD - piston (1-3/4" dia.)

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.
