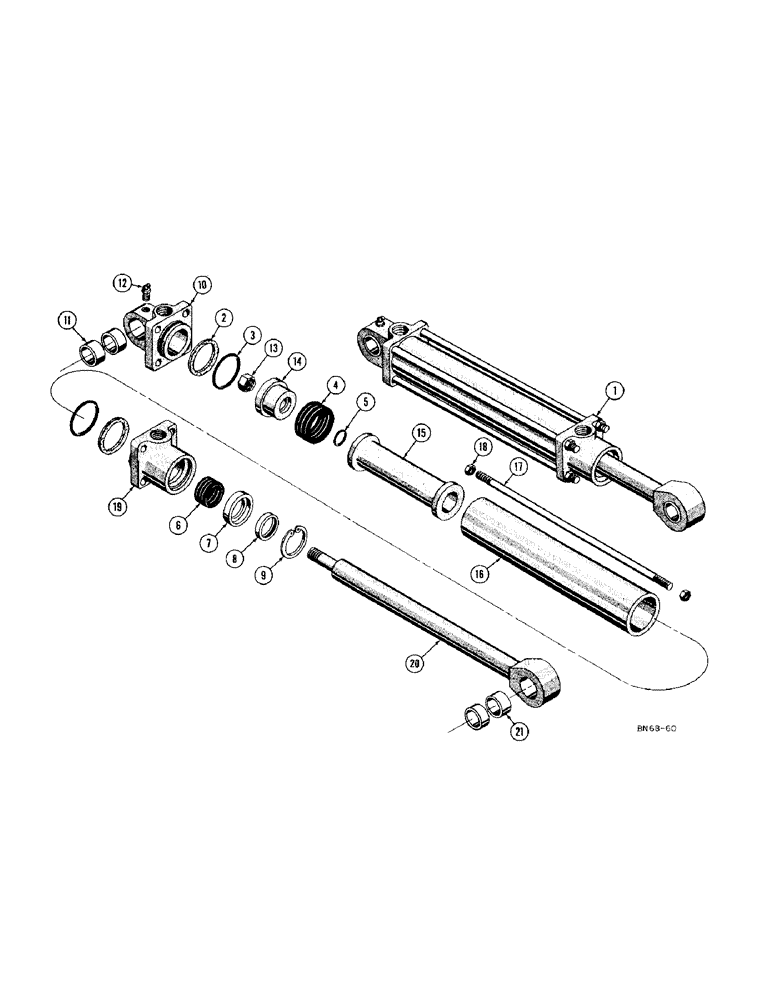

Запчасти Case 420C (224) - 38160 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

38160

LINE

CYLINDER - hydraulic (2-1/2" I.D x 4-3/4" stroke)

1шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

D24985

RING

- leather backup

2шт.

3

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O"ring

2шт.

4

17598

PACKING

- piston

1шт.

5

O3522CK

X

SEAL - "O"ring

1шт.

6

17597

PACKING

- piston rod

1шт.

7

D23933

GLAND

- wiper ring

1шт.

8

D23962

SEAL

- wiper, piston rod

1шт.

9

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

10

D20038

END - cylinder

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

12

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

13

D23739

LOCK NUT

NUT - lock (3/4" x 16 NF)

1шт.

14

D23738

BLOCK

PISTON - cylinder, small

1шт.

15

38165

PISTON - cylinder, large

1шт.

16

38163

TUBE - cylinder

1шт.

17

38166

CAP COVER

ROD - tie

4шт.

18

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (1/2" - 20 NF)

8шт.

19

30628

CAP - cylinder end

1шт.

20

D20025

ROD - piston (1-1/4" dia.)

1шт.

21

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.
