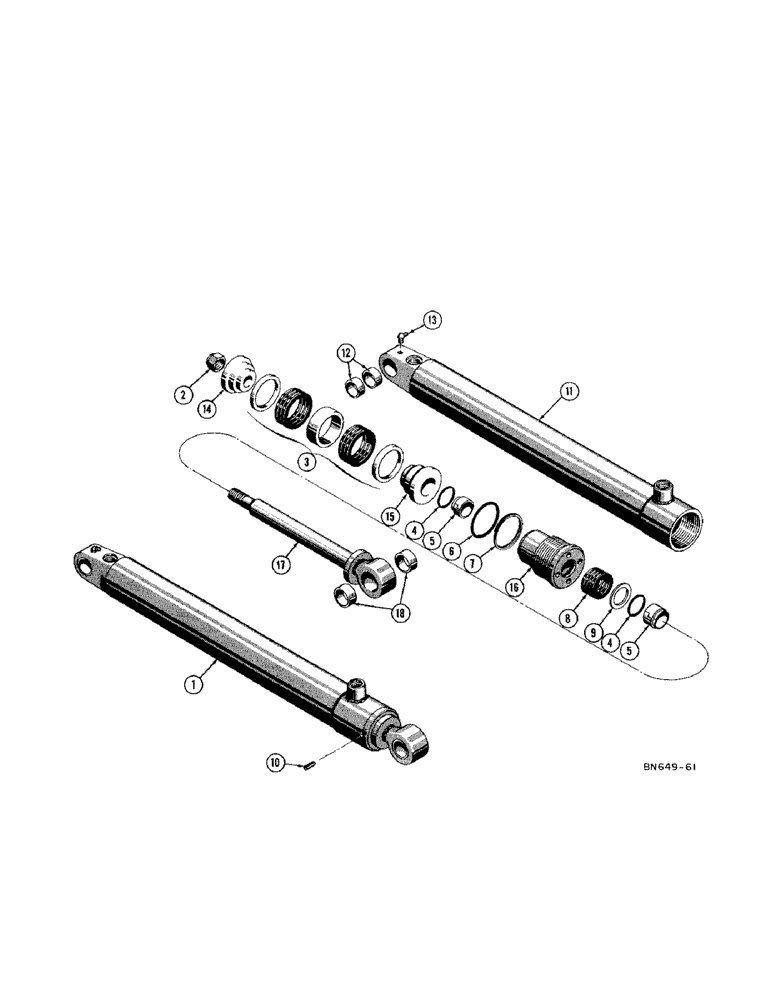

Запчасти Case 420C (224[1]) - D28218 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

1

D28218

CYLINDER ASSY.

CYLINDER - hydraulic (2-1/2" I.D x 4-3/4" stroke)

1шт.

D30126

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D28373

PACKING

- piston, kit (Includes chevron packings and spacers)

1шт.

4

O8848AB

X

SEAL - "O"ring, wiper

2шт.

5

D27705

WIPER

- piston rod

2шт.

6

O10984AB

X

SEAL - "O"ring, gland

1шт.

7

D27856

RING

- backup, gland seal

1шт.

8

D28493

X

SEAL - piston rod

1шт.

9

D28497

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

TUBE - cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

13

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 67-1/2 degrees (1/8" NPT)

1шт.

14

D28364

PISTON

- half, piston rod nut end

1шт.

15

D28362

SCREW

- half, piston rod eye end

1шт.

16

D27854

GLAND

- packing

1шт.

17

D28251

X

ROD - piston (1-1/4" dia.)

1шт.

18

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.
