Запчасти Case 420C (204) - D25936 AND D25937 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

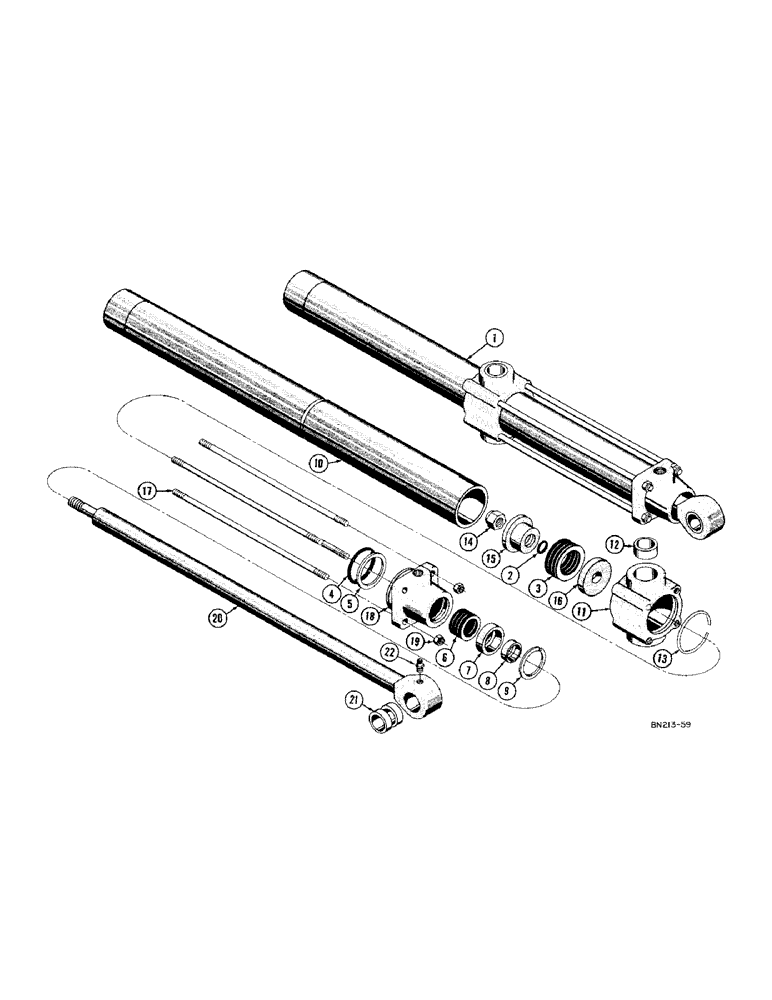

Схема запчастей Case 420C - (204) - D25936 AND D25937 DOZER LIFT HYDRAULIC CYLINDERS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D25936

CYLINDER - hydraulic, L.H. (2-1/2" I.D. x 27-3/8" stroke)

1шт.

D25937

CYLINDER - hydraulic, R.H. (2-1/2" I.D. x 27-3/8" stroke)

1шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

O3522CK

X

SEAL - "O"ring

1шт.

3

17598

PACKING

- piston

1шт.

4

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O"ring

1шт.

5

D24985

RING

- leather backup

1шт.

6

17597

PACKING

- piston rod

1шт.

7

D23933

GLAND

- wiper ring

1шт.

8

D23962

SEAL

- wiper, piston rod

1шт.

9

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , seal, piston rod 2.125", Int, #212

1шт.

10

D24520

TUBE AND END CAP - cylinder

1шт.

11

D25935

TRUNNION - cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- trunnion

2шт.

13

D23373

SNAP RING - trunnion

1шт.

14

D23739

LOCK NUT

NUT - lock, piston rod (3/4" - 16 NF)

1шт.

15

D23738

BLOCK

PISTON - cylinder

1шт.

16

30630

CARTRIDGE

WASHER - piston packing

1шт.

17

D24521

ROD - tie

4шт.

18

30628

CAP - cylinder end

1шт.

19

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

20

D24531

ROD - piston (1-1/4" dia.)

1шт.

21

D24515

BUSHING - piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 24
