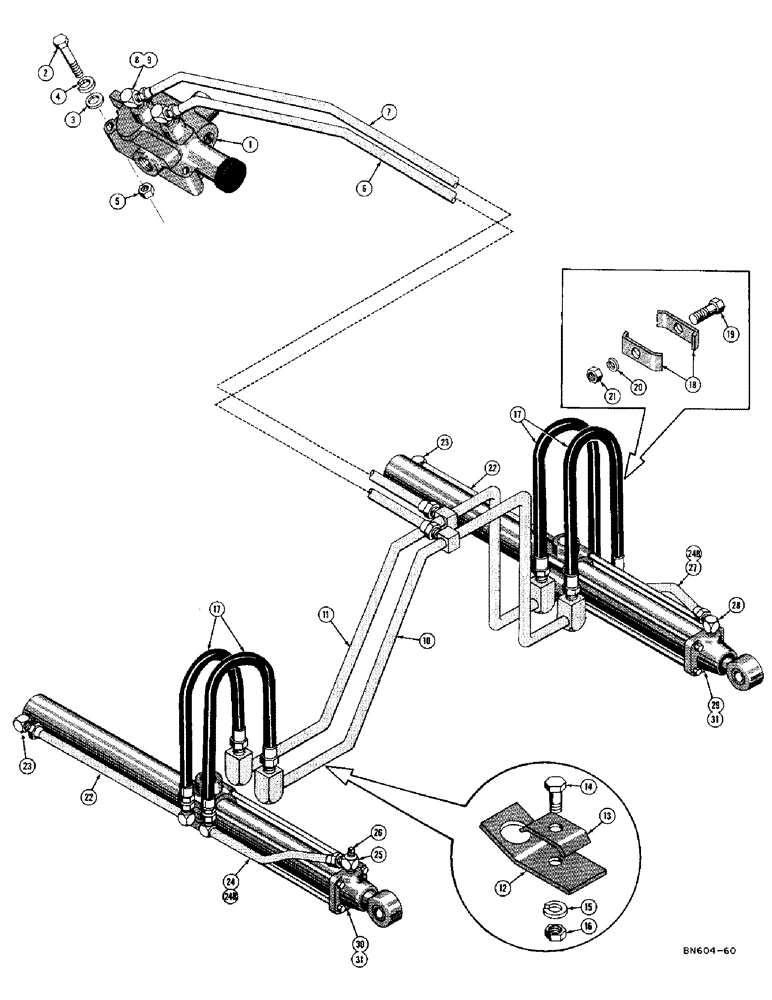

Запчасти Case 420C (200) - MECHANICAL DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D27049

VALVE - control (See Figure 158 for breakdown)

1шт.

2

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

6

D26741

TUBE - front control valve port to front manifold tube

1шт.

7

D26743

TUBE - rear control valve port to rear manifold tube

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

10

D26745

TUBE - manifold, front

1шт.

11

D26748

TUBE - manifold, rear

1шт.

12

D26751

BRACKET - tube

2шт.

13

38843

PLATE - clamp, when stock is exhausted, order 38331

2шт.

38331

PLATE

- clamp

2шт.

14

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

17

D26792

HOSE - manifold tube to cylinder (1/2" I.D. x 7/8" O.D. x 26")

4шт.

18

31665

COLLAR CLAMP

PLATE - clamp

4шт.

19

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

20

92-5

LOCK WASHER,5/16"

2шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

22

D25574

TUBE - hose to rear lift cylinder port (Cylinder with tie rods only) See D27785

2шт.

22

D27785

TUBE - hose to rear lift cylinder port (Cylinder without tie rods only) See D25574

2шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (Cylinder with tie rods only) (1/2" NPT x 5/8" JIC) See 218-5107

2шт.

23

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Cylinder without tie rods only) (5/8" JIC x 5/8" JIC) See 218-485

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow (Not shown)

1шт.

24

D25570

TUBE

- hose to front R.H. lift cylinder port (Cylinder with tie rods only) See D27783

1шт.

24b

D27783

TUBE - hose to front lift cylinder port (Cylinder without tie rods only) See D25570 and D25572

2шт.

25

33888

ELBOW - special, R.H. front lift cylinder port (Cylinder with tie rods only) (1/2" NPT male x 5/8" JIC male x 1/8" NPT female) See D27782

1шт.

25

D27782

X

ELBOW - special, R.H. front lift cylinder port (Cylinder without tie rods only) (5/8" JIC male x 5/8" JIC male x 1/4" NPT female) See 33888

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D27782 elbow (Not shown)

1шт.

26

221-1

DRAIN PLUG,Sq Hd, 1/8"-27 NPTF

PLUG - pipe, 1/8" NPT square head (33888 elbow)

1шт.

26

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT square head (D27782 elbow)

1шт.

27

D25572

TUBE - hose to front L.H. lift cylinder port (Cylinder with tie rods only) See D27783

1шт.

28

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (Front port of L.H. lift cylinder) cylinder with tie rods only (1/2" NPT x 5/8" JIC) See 218-5107

1шт.

28

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Front port of L.H. lift cylinder) cylinder without tie rods only (5/8" JIC x 5/8" JIC) See 218-485

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow (Not shown)

1шт.

29

D25936

CYLINDER - dozer lift, hydraulic (L.H.) with tie rods (See Figure 204 for breakdown) when stock is exhausted, order D27826 cylinder D27785 tube, D27783 tube, and 218-5107 elbow.

1шт.

30

D25937

CYLINDER - dozer lift, hydraulic (R.H.) with tie rods (See Figure 204 for breakdown) when stock is exhausted, order D27826 cylinder, D27785 tube, D27783 tube, 218-5107 elbow, D27782 elbow, and 221-2 pipe plug

1шт.

31

D27826

CYLINDER - dozer lift, hydraulic (Without tie rods) See Figure 204 for breakdown (See D25936 and D25937)

2шт.
