Запчасти Case 420C (186) - D24461 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

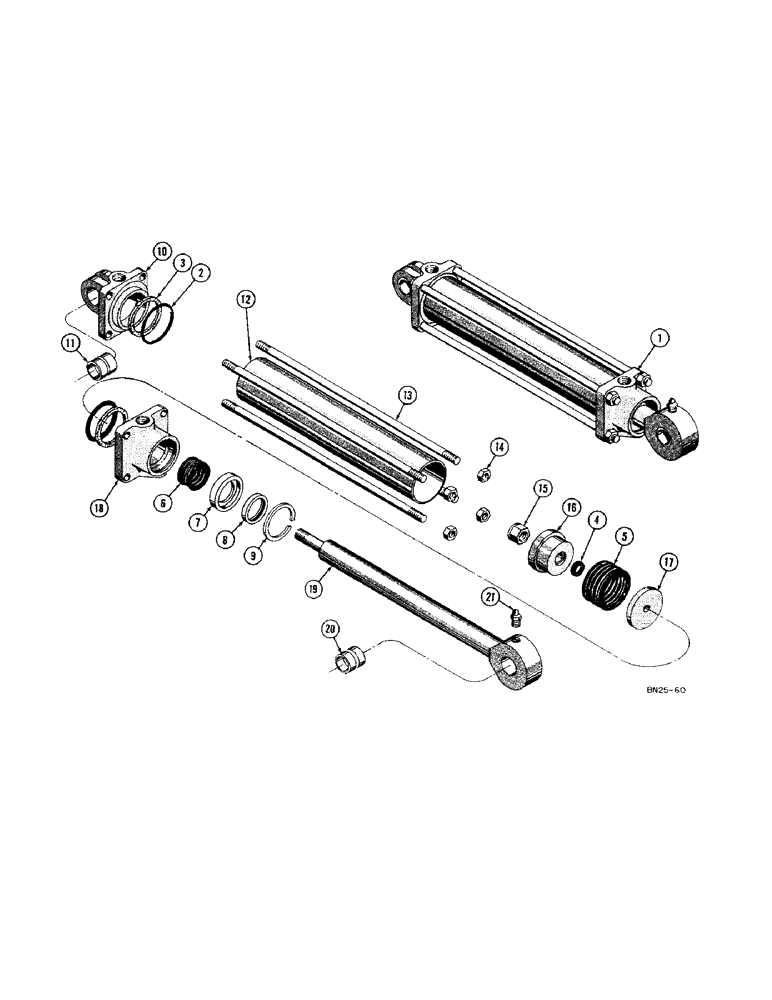

Схема запчастей Case 420C - (186) - D24461 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D24461

CYLINDER - hydraulic (2-1/2" I.D. x 12-1/4" stroke)

2шт.

D30135

PACKAGE, REPAIR

KIT - cylinder packing

1шт.

2

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

SEAL - "O"ring

2шт.

3

D24985

RING

- leather backup

2шт.

4

O3522CK

X

SEAL - "O"ring

1шт.

5

17598

PACKING

- piston

1шт.

6

17597

PACKING

- piston rod

1шт.

7

D23933

GLAND

- wiper ring

1шт.

8

D23962

SEAL

- wiper, piston rod

1шт.

9

49482

SNAP RING,2.125", Int, #212

Ring, Snap, , wiper seal 2.125", Int, #212

1шт.

10

D25463

END - cylinder

1шт.

11

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

12

D25940

TUBE - cylinder

1шт.

13

D25397

ROD - tie

4шт.

14

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

4шт.

15

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

16

D23738

BLOCK

PISTON - cylinder

1шт.

17

30630

CARTRIDGE

WASHER - piston packing

1шт.

18

17592

CAP - end, cylinder

1шт.

19

D25948

ROD - piston (1-1/4" dia.)

1шт.

20

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 22
