Запчасти Case 420C (186[1]) - D27903 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

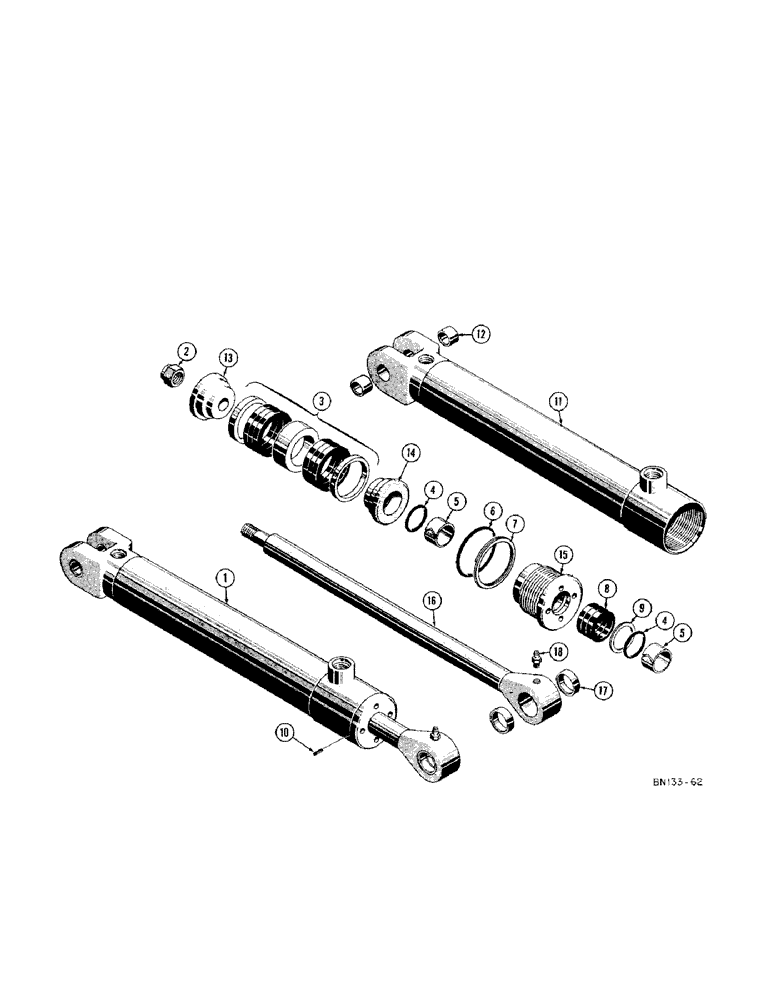

Схема запчастей Case 420C - (186[1]) - D27903 LOADER BUCKET HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D27903

CYLINDER - hydraulic (2-1/2" I.D. x 12-1/4" stroke)

2шт.

D30126

X

KIT - cylinder packing

1шт.

2

D23739

LOCK NUT

NUT - lock (3/4" - 16 NF)

1шт.

3

D28373

PACKING

- piston, kit (Includes chevron packings and spacers)

1шт.

4

O8848AB

X

SEAL - "O"ring, wiper

2шт.

5

D27705

WIPER

- piston rod

2шт.

6

O10984AB

X

SEAL - "O"ring, gland

1шт.

7

D27856

RING

- backup, gland seal

1шт.

8

D28493

X

SEAL - piston rod

1шт.

9

D28497

RING

- backup, piston rod seal

1шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1-3шт.

11

D27900

TUBE - cylinder

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder tube end

2шт.

13

D28364

PISTON

- half, piston rod nut end

1шт.

14

NLS

NO LONGER SERVICED

- half, piston rod eye end

1шт.

15

D27854

GLAND

- packing

1шт.

16

D27896

ROD - piston (1-1/4" dia.)

1шт.

17

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

18

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING- grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 19
