Запчасти Case 420C (184[1]) - D27929 LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

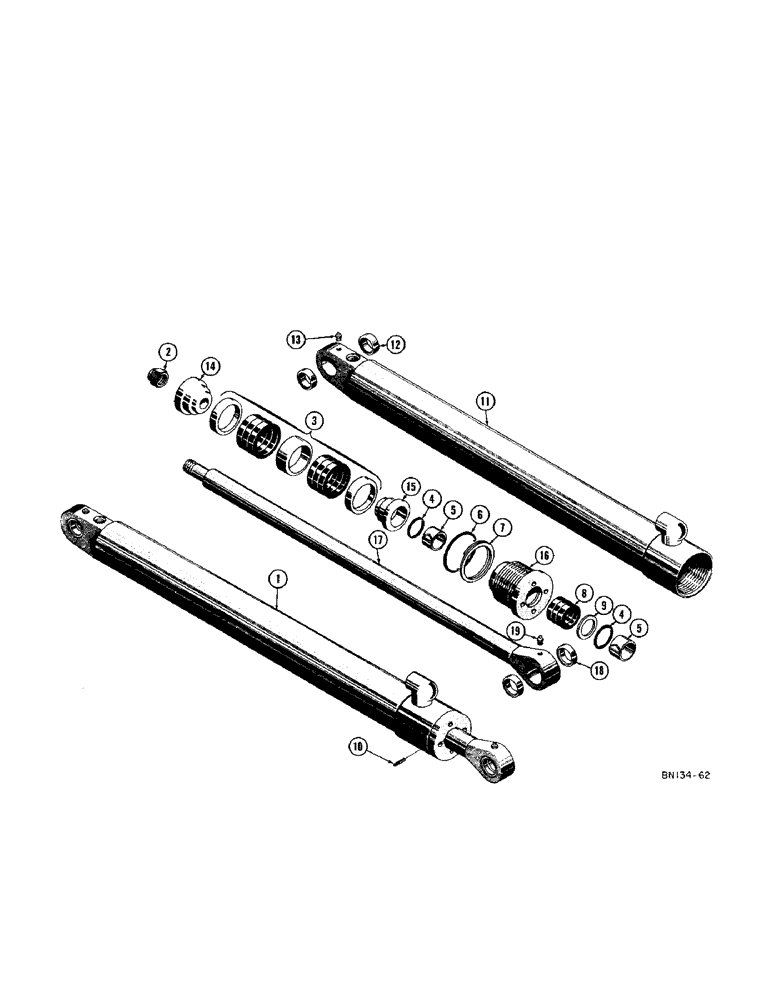

Схема запчастей Case 420C - (184[1]) - D27929 LOADER LIFT HYDRAULIC CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D27929

CYLINDER - hydraulic (2-1/2" I.D. x 27-1/4" stroke)

2шт.

D30132

X

KIT - cylinder packing

1шт.

2

131-19

LOCK NUT,1"-14, GB

NUT - lock (1" - 14 NF)

1шт.

3

D28374

PACKAGE,SERVICE

PACKING - piston, kit (Includes chevron packings and spacers)

1шт.

4

A14515

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

SEAL - "O"ring, wiper

2шт.

5

D27432

SHIM

- piston rod

2шт.

6

G15457

O-RING,0.139" Thk x 3.484" ID, -238, Cl 5, 75 Duro

SEAL - "O"ring, gland

1шт.

7

D27434

BACK-UP RING,88.9mm ID x 95.25mm OD x 2.21mm Thk

- backup, gland seal

1шт.

8

D28495

PACKING

SEAL - piston rod

1шт.

9

D28499

RING

- backup, piston rod seal

1-3шт.

10

138-90

LOCK PIN,Sl Spring, 3/16" x 5/8", Hvy

Pin, , gland locking, if used 3/16" x 5/8", Slotted

1шт.

11

D28380

TUBE - cylinder

1шт.

12

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder tube end

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

14

D283677

PISTON - half, piston rod nut end

1шт.

15

D28369

PISTON

- half, piston rod eye end

1шт.

16

D27431

GLAND

- packing

1шт.

17

D27885

ROD

- piston (1-3/4" dia.)

1шт.

18

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

19

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

1шт.

Выбрано товаров: 20
