Запчасти Case 420C (180) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

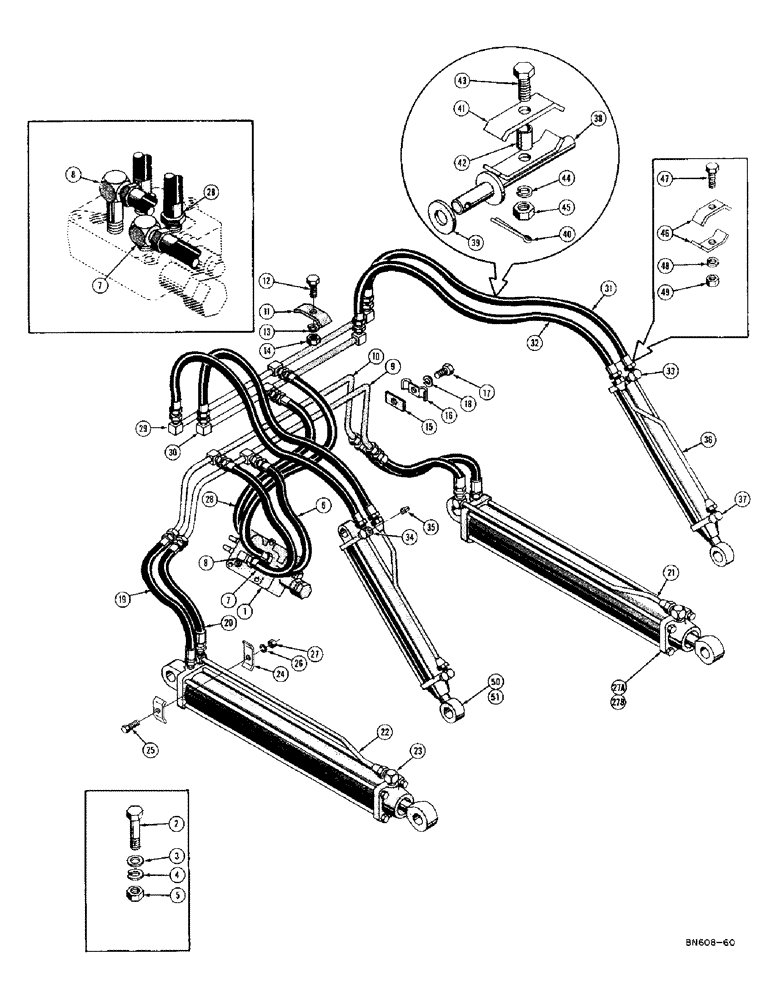

Схема запчастей Case 420C - (180) - LOADER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D26491

VALVE - control (See Figure 162 for breakdown) original equipment (When stock is exhausted, order D29615)

1шт.

D29615

VALVE - control (See Figure 168 for breakdown) replacement (See Figure 168 for breakdown) replacement (See D26491)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8" - 16 NC)

3шт.

6

D27478

HOSE ASSY.

HOSE - valve to lower manifold tubes (1/2" I.D. x 7/8" O.D. x 22")

2шт.

7

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

8

D25698

X

ELBOW - male, 90 degrees (Extra long) (5/8" JIC x 5/8" JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D25698 elbow

1шт.

9

D28098

TUBE - manifold, lower front

1шт.

10

D28095

TUBE - manifold, lower rear

1шт.

11

32978

PLATE ASSY.

PLATE - clamp

4шт.

12

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- 5/16"-18 NC x 1-1/2"

4шт.

13

92-5

LOCK WASHER,5/16"

4шт.

14

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

4шт.

15

33747

PLATE - tube clamp spacer

2шт.

16

17179

PLATE - clamp

2шт.

17

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

18

92-5

LOCK WASHER,5/16"

2шт.

19

D27636

HOSE - rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 24") cylinder with tie rods only (See D27927)

2шт.

19

D27927

HOSE - rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D x 24") cylinder without tie rods only (See D27636)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D27927 hose

1шт.

20

D27635

HOSE - front manifold tube to front cylinder port (1/2" I.D. x 7/8" O.D. x 20")

2шт.

21

D26092

TUBE

- hose to front L.H. lift cylinder port (Cylinder with tie rods only) See D27946

1шт.

22

D26093

TUBE - hose to front R.H. lift cylinder port (Cylinder with tie rods only) See D27946

1шт.

22

D27946

TUBE - hose to front lift cylinder port (Cylinder without tie rods only) see D26092 and D26093

2шт.

23

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC) cylinder with tie rods only (See 218-5062)

2шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male (5/8" JIC x 5/8" JIC) cylinder without tie rods only (See 218-485)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5062 connector

1шт.

24

32978

PLATE ASSY.

PLATE - clamp, cylinder with tie rods only (See D28020)

4шт.

24

D28020

PLATE - clamp, cylinder without tie rods only (See 32978)

4шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

HHCS - 32978 clamp plate (5/16" - 18 NC x 1-1/4") See 13-528

2шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - D28020 clamp plate (5/16" - 18 NC x 1-3/4") See 13-520

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

27a

D26083

CYLINDER - loader lift, hydraulic (With tie rods) See Figure 184 for breakdown (When stock is exhausted, order D27929 cylinder, D27927 hose, D27946 tube, 218-5062 connector, D28020 clamp plate, and 13-528 capscrew)

2шт.

27b

D27929

CYLINDER - loader lift, hydraulic (Without tie rods) See Figure 184 for breakdown (See D26083)

2шт.

28

D27484

HOSE

- valve to upper manifold tubes (1/2" I.D. x 7/8" O.D. x 19-1/2")

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D27484 hose

1шт.

29

D25408

TUBE - manifold, upper rear

1шт.

31

D27486

TUBE - manifold, upper front

1шт.

31

D27486

HOSE - upper rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 38-3/4") cylinder with tie rods only (See D23062)

2шт.

31

D23062

HOSE

- upper rear manifold tube to rear cylinder port (1/2" I.D. x 7/8" O.D. x 3/8") cylinder without tie rods only (See D27486)

2шт.

32

D27482

X

HOSE - upper front manifold tube to front cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 38-3/4") when stock is exhausted, order D28111

2шт.

32

D28111

HOSE ASSY.

HOSE - upper front manifold tube to front cylinder port, rear section (1/2" I.D. x 7/8" O.D. x 39") See D27482

2шт.

33

D23309

ELBOW - street, 90 degrees (Rear L.H. bucket cylinder port) (1/2" NPT) cylinder with tie rods only (See D27070 and 218-5107)

1шт.

D24070

ELBOW

- street, 90 degrees (1/2" NPT x 5/8" JIC) Used in rear L.H. bucket cylinder port when replacing bucket cylinder with tie rods with bucket cylinder without tie rods (Not shown) See D23309 and 218-5107

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D24070 elbow (Not shown)

1шт.

33

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (Rear L.H. bucket cylinder port) (5/8" JIC x 5/8" JIC) cylinder without tie rods only (See D23309)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

34

D27079

ELBOW - special, rear R.H. bucket cylinder port (1/2" NPT male x 1/2" NPT female x 1/4" NPT female) cylinder with tie rods only (See D27782)

1шт.

34

D27782

X

ELBOW - special, rear R.H. bucket cylinder port (5/8" JIC male x 5/8" JIC male x 1/4" NPT female) cylinder without tie rods only (See D27079)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D27782 elbow

1шт.

35

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe, 1/4" NPT square head

1шт.

36

D26295

TUBE

- hose to front bucket cylinder port

2шт.

37

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- male, 90 degrees (1/2" NPT x 5/8" JIC) cylinder with tie rods only (See 218-5107)

2шт.

37

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- male, 90 degrees (5/8" JIC x 5/8" JIC) cylinder without tie rods only (See 218-485)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5107 elbow

1шт.

38

D25456

BRACKET - pivot, hose

2шт.

39

95-6

WASHER,3/8"

- standard wrot (7/16" I.D. x 1" O.D. x 5/64" thick)

2шт.

40

132-28

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), , Pivot bracket 3/32" x 1"

2шт.

41

31665

COLLAR CLAMP

PLATE - clamp

2шт.

42

D25938

SPACER - hose clamp

2шт.

43

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

44

92-5

LOCK WASHER,5/16"

2шт.

45

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

46

31665

COLLAR CLAMP

PLATE - clamp

4шт.

47

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4"

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.

49

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

50

D24461

2шт.

CYLINDER - bucket, hydraulic (With tie rods) See Figure 186 for breakdown (When stock is exhausted, for L.H. cylinder order D27903 cylinder, D24070 elbow, and 218-5107 elbow; for R.H. cylinder order D27903 cylinder, D23062 hose, D27782 elbow, and 218-5107 elbow)

1шт.

51

D27903

CYLINDER - bucket, hydraulic (Without tie rods) See Figure 186 for breakdown (See D24461)

2шт.

Выбрано товаров: 75
