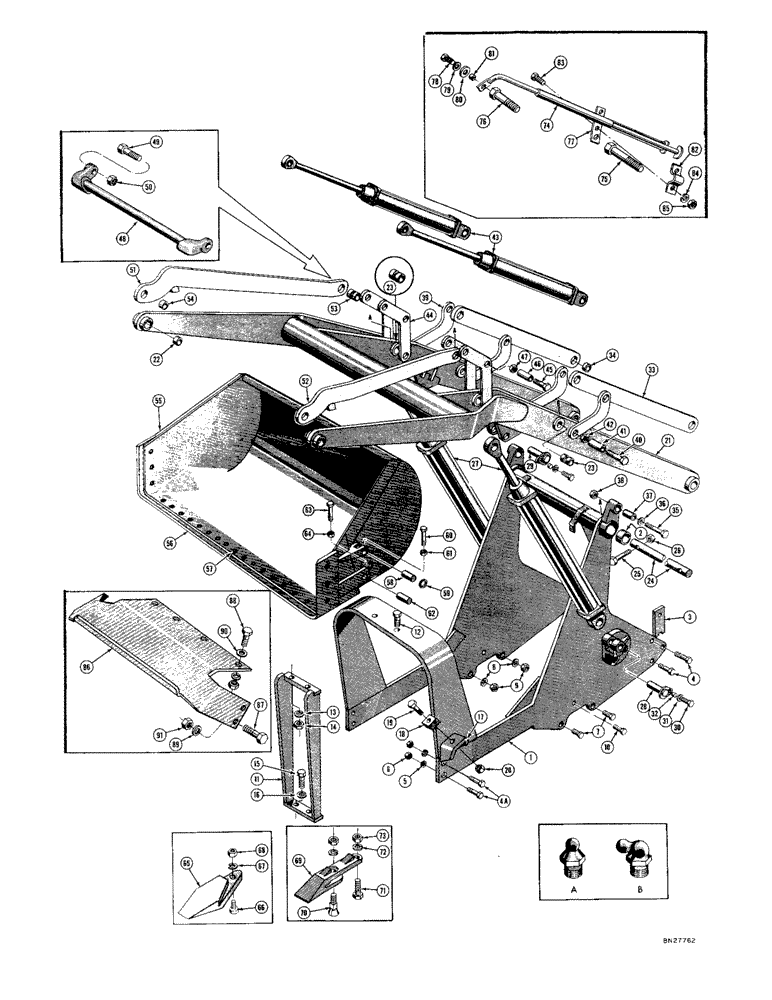

Запчасти Case 420C (174) - LOADER FRAME, LIFT ARM, BUCKETS, AND CYLINDERS (07) - HYDRAULIC SYSTEM

1

NLS

NO LONGER SERVICED

FRAME - main, loader (Includes ref. #2) original equipment (When stock is exhausted, order 1 - D29757, 6 - 13-1248, 2 - 13-1236, 8 - 92-12, and 8 - 25-1012)

1шт.

D29757

FRAME - main, loader (Replacement) See D27143

1шт.

2

D23830

BUSHING - main frame

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

3

D20685

SPACER - main frame, rear (Between main frame and engine frame) Used with D27143 main frame only

1шт.

4

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(Used with D27143 main frame only) See 13-1248 Hex, 5/8"-11 x 3", G5

6шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(Used with D29757 main frame only) See 13-1048 Hex, 3/4"-10 x 3", G5

6шт.

4a

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

5

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , 6 used with D27143 main frame; 4 used with D29757 main frame (See 92-12) 5/8"

6-4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, , Used with D29757 main frame only 3/4"

2шт.

6

25-1010

NUT,5/8"-11, G5

6 used with D27143 main frame; 4 used with D29757 main frame (See 25-1012) 5/8"-11, G5

6-4шт.

25-1012

NUT,3/4"-10, G5

Used with D29757 main frame only (See 25-1010) 3/4"-10, G5

2шт.

7

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

4шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

9

25-1012

NUT,3/4"-10, G5

4шт.

10

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

(Used with 27143 main frame) See 13-1236 Hex, 5/8"-11 x 2 1/4", G5

2шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(Used with D29757 main frame) See 13-1036 Hex, 3/4"-10 x 2 1/4", G5

2шт.

11

D27154

GUARD - grille (Used with D27143 main frame) See D29100

1шт.

D29100

GUARD - grille (Used with D29757 main frame) See D27154

1шт.

12

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

13

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

14

25-1010

NUT,5/8"-11, G5

2шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

16

92-8

LOCK WASHER,1/2"

2шт.

17

D27147

BRACKET - stop block (Used with D27143 main frame) See D29090

2шт.

D29090

BRACKET - stop block (Used with D29757 main frame) See D27147

2шт.

18

D25548

BLOCK - stop (If used)

2шт.

19

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HHCS - stop block to bracket (1/2" - 13 NC x 2-1/4")

2шт.

20

D23332

X

NUT - lock, special (1/2" - 13 NC) if used

2шт.

21

D27141

ARM - main (48" gauge loader) original equipment (When stock is exhausted, order D29091)

1шт.

D29091

ARM - main (48" gauge loader) replacement (See D27141)

1шт.

D27149

ARM - main (42" gauge loader)

1шт.

22

D21912

BUSHING

- main arm

2шт.

23

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- main arm

8шт.

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

24

31318

SHAFT - mounting, main arm to main frame

1шт.

25

13-888

BOLT,Hex, 1/2" - 13 x 5-1/2", Gr 5

2шт.

26

D23332

X

NUT - lock, special (1/2" - 13 NC)

2шт.

27

D26083

CYLINDER - loader lift, hydraulic (With tie rods) See Figure 184 for breakdown (When stock is exhausted, order D27929 cylinder, D27927 hose, D27946 tube, 218-5062 connector, D28020 clamp plate, and 13-528 cap screw)

2шт.

27

D27929

CYLINDER - loader lift, hydraulic (Without tie rods) See Figure 184 for breakdown (See D26083)

2шт.

D27927

HOSE - rear manifold tube to rear lift cylinder port (1/2" I.D. x 7/8" O.D. x 24") not shown

2шт.

D27946

TUBE - hose to front lift cylinder port (Not shown)

2шт.

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - male, tube to front port of cylinder (5/8" JIC x 5/8" JIC) not shown

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, 218-5062 connector (Not shown)

1шт.

D28020

PLATE - clamp (Not shown)

4шт.

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16" - 18 NC x 1-3/4" (Not shown)

2шт.

28

31109

PIN ASSY.

PIN - mounting, lift cylinder to main frame

2шт.

29

31340

PISTON

PIN - mounting, lift cylinder to main arm

2шт.

30

13-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

4шт.

31

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

32

D23740

BUSHING

- lockhead pin bolt

4шт.

33

D24459

ARM - leveling

2шт.

34

DR10011

BUSHING

- leveling arm

2шт.

35

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

36

95-16

WASHER,1 1/16" x 2 1/2" x .164"

- standard wrot (1-1/16" I.D. x 2-1/2" O.D. x 11/64" thick)

2шт.

37

D24584

BUSHING - spacer

2шт.

38

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC) Use 131-163

2шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock (1" - 8 NC)

2шт.

39

D24442

LEVER - pivot, bucket cylinder to leveling arm

4шт.

40

13-1688

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

3шт.

41

D24462

SPACER - pivot lever

4шт.

42

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC) Use 131-163

4шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock (1" - 8 NC)

4шт.

43

D24461

CYLINDER - bucket, hydraulic (With tie rods) See Fig. 186 for breakdown (When stock is exhausted for L.H. cylinder order D27903 cylinder, D24070 elbow, and 218-5107 elbow; for R.H. side order D27903 cylinder, D23062 hose, D27782 elbow, and 218-5107 elbow)

2шт.

43

D27903

CYLINDER - bucket, hydraulic (Without tie rods) See Figure 186 for breakdown (See D24461)

2шт.

D23062

HOSE

- upper manifold tube to rear R.H. bucket cylinder port (1/2" I.D. x 7/8" O.D. x 38") not shown

1шт.

D27782

X

ELBOW - 90 degrees male, special (Rear port of R.H. bucket cylinder) (5/8" JIC male x 5/8" JIC male x 1/4" NPT female) not shown

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D27782 elbow (Not shown)

1шт.

2185107

ELBOW - male, 90 degrees (5/8" JIC x 5/8" JIC) front and rear ports of L.H. bucket cylinder and front port of R.H. bucket cylinder (Not shown)

3шт.

218-507

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

SEAL - "O"ring, 218-5107 elbow (Not shown)

1шт.

D24070

ELBOW

- street, 90 degrees (1/2" NPT x 5/8" JIC) Used in rear L.H. bucket cylinder port when replacing bucket cylinder that has tie rods with bucket cylinder without tie rods (Not shown)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

SEAL - "O"ring, D24070 elbow (Not shown)

1шт.

44

D24441

LEVER - pivot, bucket dump arm and bucket cylinder

4шт.

45

13-1664

BOLT,Hex, 1" - 8 x 4", Gr 5

3шт.

46

30959

SPACER - pivot lever

6шт.

47

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC) Use 131-163

4шт.

131-163

LOCK NUT,1"-8, GA

NUT - lock (1" - 8 NC)

4шт.

48

34340

SPARE PART

BRACE - cross

1шт.

49

13-1680

CAPSCREW,Hex, 1" - 8 x 5", Gr 5

BOLT, Hex, 1"-8 x 5", G5

2шт.

50

230-41116

NUT,1"-8, GA

NUT - lock (1" - 8 NC) Use 131-163

2шт.

51

34269

WASHER

ARM - bucket dump, R.H. (48" gauge loader) includes ref. #53 and #54

1шт.

34273

ARM - bucket dump, R.H. (42" gauge loader) includes ref. #53 and #54

1шт.

52

34270

BELT

ARM - bucket dump, L.H. (48" gauge loader) includes ref. #53 and #54

1шт.

34274

ARM - bucket dump, L.H. (42" gauge loader)

1шт.

53

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- dump arm

2шт.

54

D21903

BUSHING

- dump arm

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight (1/8" NPT)

2шт.

55

D24465

BUCKET - loader, 48" gauge loader (Machinery item)

1шт.

56

30889

EDGE - cutting, bucket

1шт.

57

42-826

RIVET - cutting edge (1/2" x 1-5/8")

21шт.

55

D25181

BUCKET - loader, 42" gauge loader (Machinery item)

1шт.

56

31258

EDGE - cutting bucket

1шт.

57

46-826

RIVET

- cutting edge (1/2" x 1-5/8")

19шт.

58

32598

PIN

- mounting, bucket to dump arm

2шт.

59

O1550L

WASHER

- shim, 32598 pin (1-17/32" I.D. x 2-3/4" O.D. x 1/16" thick)

1шт.

60

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

HHCS - 3/8" - 16 NC x 3-3/4"

2шт.

61

131-352

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" - 16 NC)

2шт.

62

32599

PIN - mounting, bucket to main arm

2шт.

63

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

64

D23332

X

NUT - lock, special (1/2" - 13 NC)

2шт.

65

16988

TOOTH - digging (Optional equipment) Use D29124

5шт.

66

14-836

BOLT,Hex, 1/2" - 20 x 2-1/4", Gr 5

HHCS - 1/2" - 20 NF x 2-1/4"

5шт.

67

92-8

LOCK WASHER,1/2"

5шт.

68

25-118

NUT,1/2"-20, G5

- hex. (1/2" - 20 NF)

5шт.

69

D29124

TOOTH

- digging (Optional equipment)

5шт.

70

18-840

BOLT

- plow, #3 head (1/2" - 13 NC x 2-1/2")

5шт.

71

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

5шт.

72

92-8

LOCK WASHER,1/2"

10шт.

73

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

10шт.

74

D28063

LARGE PIN

GAUGE - bucket leveling

1шт.

75

D28055

BOLT - special, R.H. leveling arm and dump cylinder to pivot lever (1" - 8 NC x 5-1/2")

1шт.

76

D28062

BOLT - special, R.H. bucket cylinder to pivot lever (1" - 8 NC x 4")

1шт.

77

D28127

BRACKET - mounting, clamp

1шт.

78

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Clamp bracket and leveling gauge, front Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

79

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

80

195-24

WASHER,5/16"

2шт.

81

D28056

SPACER

2шт.

82

D28126

CLAMP - leveling gauge

1шт.

83

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

84

92-5

LOCK WASHER,5/16"

2шт.

85

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" - 18 NC)

2шт.

86

D11656

GUARD - spill, D24465 bucket (Machinery item)

1шт.

87

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

88

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

HHCS - 1/2" - 13 NC x 1-3/4"

4шт.

89

92-8

LOCK WASHER,1/2"

8шт.

90

95-8

WASHER,1/2"

- standard wrot (9/16" I.D. x 1-3/8" O.D. x 7/64" thick) 1/2"

4шт.

91

25-108

NUT,1/2"-13, G5

- hex. (1/2" - 13 NC)

8шт.
