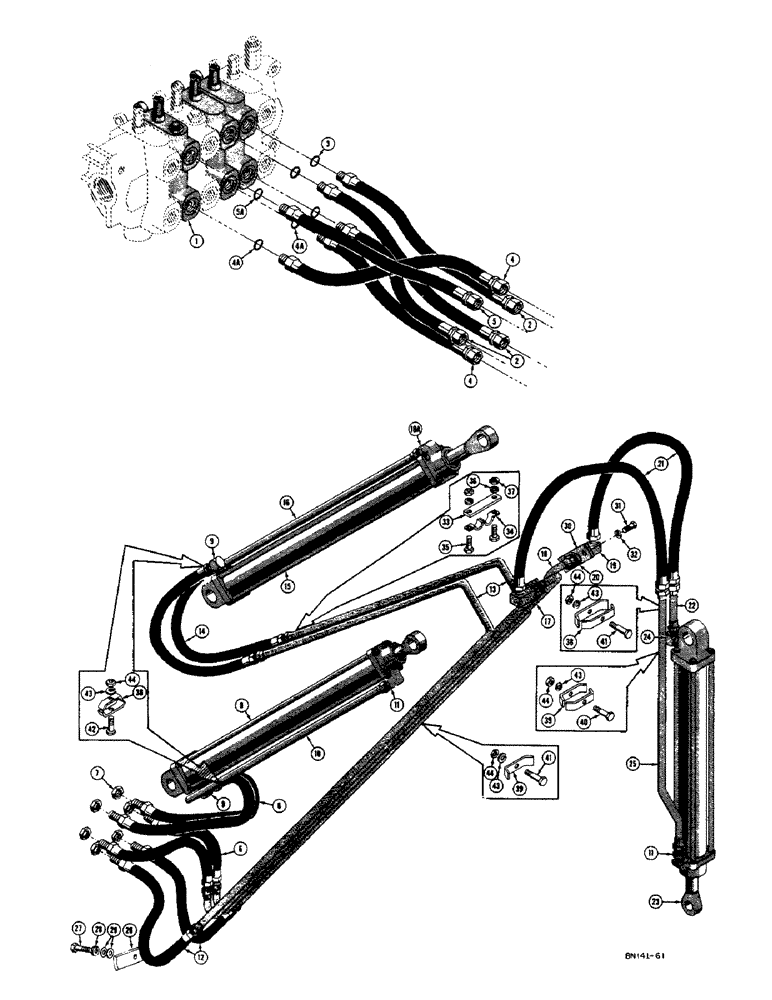

Запчасти Case 420B (170) - BOOM, CROWD, AND BUCKET CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25678

VALVE - control, backhoe (Used on models having boom cylinder with 1-3/4" dia. piston rod) See figure172 for breakdown (Use D27563)

1шт.

D27563

LOCK VALVE

VALVE - control, backhoe (Used on models having boom cylinder with 2" dia. piston rod) See figure 172 for breakdown

1шт.

2

D25089

X

HOSE - crowd control valve section (Upper port), Also bucket control valve section (Upper and lower ports) To bulkhead hose (1/2" I.D.x 7/8" O.D. x 18-3/4")

3шт.

3

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

4

D25090

X

HOSE - crowd control valve section (Lower port), Also boom control valve section (Lower port) To bulkhead hose (1/2" I.D. x 7/8" O.D. x 20-1/4")

2шт.

4a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

5

D25816

X

HOSE - boom control valve section (Upper port) To bulkhead hose (1/2" I.D. x 7/8" O.D. x 17-1/2")

1шт.

5a

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

6

D24345

HOSE ASSY.

HOSE - bulkhead, valve hose to boom cylinder tube (Also valve hose to bucket cylinder tube) (1/2" I.D. x 7/8" O.D. x 31")

4шт.

7

D25828

NUT - hex. jam (7/8 - 14 NF)

4шт.

8

D25027

CYLINDER - hydraulic, boom (Used up to backhoe serial #4043607) See figure178 for breakdown (Use D27156)

1шт.

D27156

CYLINDER ASSY.

CYLINDER - hydraulic, boom (Used from backhoe #4043607) See figure 178 for breakdown

1шт.

9

D25567

ELBOW

- adjustable, 90 degrees street (5/8 JIC x 3/4 NPT)

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

10

D26383

TUBE - hose to boom cylinder upper port

1шт.

11

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight (3/4 JIC x 1/2 NPT)

2шт.

12

D24347

HOSE ASSY.

HOSE - bulkhead, valve hose to crowd cylinder tubes (1/2" I.D. x 7/8" O.D. x 27")

2шт.

13

D24071

TUBE - bulkhead hose to crowd cylinder

2шт.

14

D24349

HOSE ASSY.

HOSE - boom tubes to crowd cylinder (3/4" I.D. x 1-5/32" O.D. x 23")

2шт.

15

D25012

CYLINDER - hydraulic, crowd (See figure 178 for breakdown) Use D27489

1шт.

D27489

CYLINDER - hydraulic, crowd (See figure 178 for breakdown)

1шт.

16

D24660

TUBE - hose to crowd cylinder upper port (Used up to backhoe serial #4041576) See D26381 and 218-446

1шт.

D26381

TUBE - hose to crowd cylinder upper port (Used from backhoe serial #4041576)

1шт.

16a

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight (3/4 JIC x 1/2 NPT) Used from backhoe serial #4041576

1шт.

17

D24065

TUBE - bulkhead hose to bucket cylinder lower port

1шт.

18

D24066

TUBE - bulkhead hose to bucket cylinder lower port

1шт.

19

D25568

ELBOW UNION

ELBOW - special 90 degrees (3/4 JIC x 3/4 NPT)

2шт.

20

D26231

NUT

- jam lock (1-1/16 - 12 NF)

2шт.

21

D24079

X

HOSE - special street elbow to bucket cylinder (3/4" I.D. x 1-5/32" O.D. x 37")

2шт.

22

D24077

X

TUBE - hose to bucket cylinder upper port

1шт.

23

D25045

CYLINDER - hydraulic, bucket (Sea figure 180 for breakdown)

1шт.

24

D25566

ELBOW

- adjustable 90 degrees male (3/4 JIC x 5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

25

D24076

TUBE - hose to bucket cylinder lower port

1шт.

26

D26348

CLAMP - hose

1шт.

27

164-571

SCREW - button head (1/2 - 13 NC x 1) Hex Soc But Hd, 1/2"-13 x 1"

1шт.

28

92-8

LOCK WASHER,1/2"

1шт.

29

95-8

WASHER,1/2"

- plain 1/2"

2шт.

30

D25585

PLATE - spacer

2шт.

31

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

D25086

SPACER - tube clamp (Used up to backhoe serial #4043460)

1шт.

34

49789

CLAMP

- tube

2шт.

35

13-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

2шт.

36

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

37

25-104

NUT,1/4"-20, G5

2шт.

38

D20045

PLATE ASSY.

PLATE - clamp

6шт.

39

32978

PLATE ASSY.

PLATE - clamp

8шт.

40

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2"

1шт.

41

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

5шт.

42

13-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

2шт.

43

92-5

LOCK WASHER,5/16"

8шт.

44

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

8шт.
