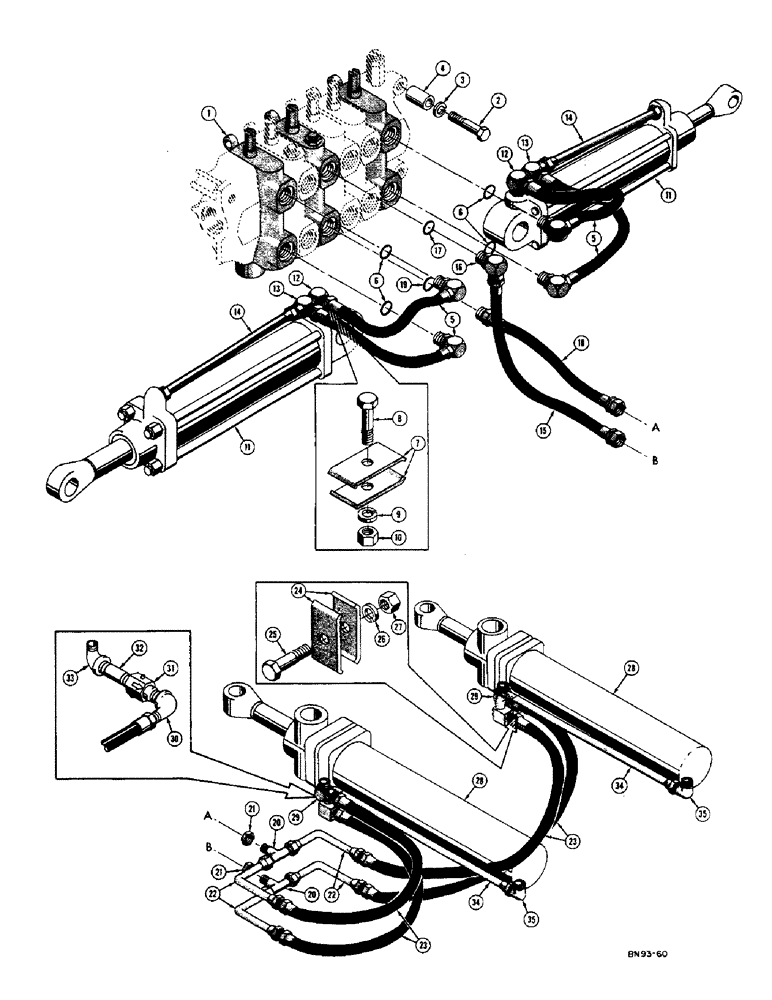

Запчасти Case 420B (168) - SWING CYLINDER AND STABILIZER CYLINDER HYDRAULICS, VALVE (07) - HYDRAULIC SYSTEM

1

D25678

VALVE - control, backhoe (Used on models having boom cylinder with 1-3/4" dia. piston rod) See figure 172 for breakdown (Use D27563)

1шт.

D27563

LOCK VALVE

VALVE - control, backhoe (Used on models having boom cylinder with 2" dia. piston rod) See figure 172 for breakdown

1шт.

2

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

HHCS - 1/2 - 13 NC x 2-1/2

3шт.

3

92-8

LOCK WASHER,1/2"

3шт.

95-8

WASHER,1/2"

- plain, Not shown 1/2"

2шт.

4

D26404

SPACER - valve to mounting bracket

3шт.

5

D24409

HOSE - valve to stabilizer cylinders (3/8" I.D. x 3/4" O.D. x 20"), hydraulics

4шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal, stablizer cylinder hydraulics

1шт.

7

32798

HOSE

PLATE - clamp, stabilizer cylinder hydraulics

4шт.

8

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4, stabilizer cylinder hydraulics

2шт.

9

92-5

LOCK WASHER,5/16"

stabilizer cylinder hydraulics 5/16"

2шт.

10

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), stabilizer cylinder hydraulics

2шт.

11

D25052

CYLINDER - hydraulic, stabilizer (See figure 176 for breakdown)

2шт.

12

D23974

ELBOW

- adjustable 90 degrees street (5/8 JIC x 3/4 NPT), stabilizer cylinder hydraulics

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown), stabilizer cylinder hydraulics

1шт.

13

D26361

FITTING

ELBOW - 90 degrees (5/8 JIC x 3/4 NPT), stabilizer cylinder hydraulics

2шт.

14

D26375

TUBE - hose to stabilizer cylinder, outer port, hydraulics

2шт.

15

D25091

HOSE - upper valve port to lower bulkhead tee (1/2" I.D. x 7/8" O.D. x 18-3/4"), swing cylinder hydraulics

1шт.

16

D25819

ELBOW - adjustable 90 degrees street (3/4 JIC x 1/2 NPT), swing cylinder hydraulics

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal, swing cylinder hydraulics

1шт.

18

D25816

X

HOSE - lower valve port to upper bulkhead tee (1/2" I.D> x 3/4" O.D. x 17-1/2"), swing cylinder hydraulics

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal, swing cylinder hydraulics

1шт.

20

D25272

TEE - bulkhead (1/2 JIC x 1/2 JIC x 5/8 JIC), swing cylinder hydraulics

2шт.

21

25-1514

JAM NUT,Jam, 7/8"-14, G5

- hex. jam (7/8 - 14 NF), swing cylinder hydraulics

1шт.

22

D25084

TUBE - bulkhead tee to hose, swing cylinder hydraulics

4шт.

23

D24413

HOSE ASSY.

HOSE - bulkhead tee tube to cylinder (3/8" I.D. x 3/4" O.D. x 20-1/2"), swing hydraulics

4шт.

24

32798

HOSE

PLATE - tube clamp, swing cylinder hydraulics

4шт.

25

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4, swing cylinder hydraulics

2шт.

26

92-5

LOCK WASHER,5/16"

swing cylinder hydraulics 5/16"

2шт.

27

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC), swing cylinder hydraulics

2шт.

28

D25025

CYLINDER - hydraulic, swing (See figure 176 for breakdown)

2шт.

29

D26372

ELBOW UNION

ELBOW - 90 degrees street (3/8 NPT) See D11354

2шт.

D11354

CONTROL - flow, swing cylinder (See D26372), hydraulics

1шт.

30

221-382

ELBOW

- reducing pipe, 90 degrees (1/2 NPT x 3/8 NPT), swing cylinder hydraulics

2шт.

31

D28156

VALVE - flow control, swing cylinder hydraulics

2шт.

139-4

PIN - taper (#0 x 1-1/2") Not shown, swing cylinder hydraulics

1шт.

32

221-185

PIPE,Nipple, 1/2" NPT x 1 1/8"

NIPPLE - pipe (1/2 NPT x 1-1/8), swing cylinder hydraulics

2шт.

33

221-561

ELBOW

- reducing, 90 degrees street (1/2 NPT x 3/8 NPT), swing cylinder hydraulics

2шт.

34

D26373

TUBE - hose to swing cylinder rear port, hydraulics

2шт.

35

218-484

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

- 90 degrees male (3/8 NPT x 1/2 JIC), swing cylinder hydraulics

2шт.
