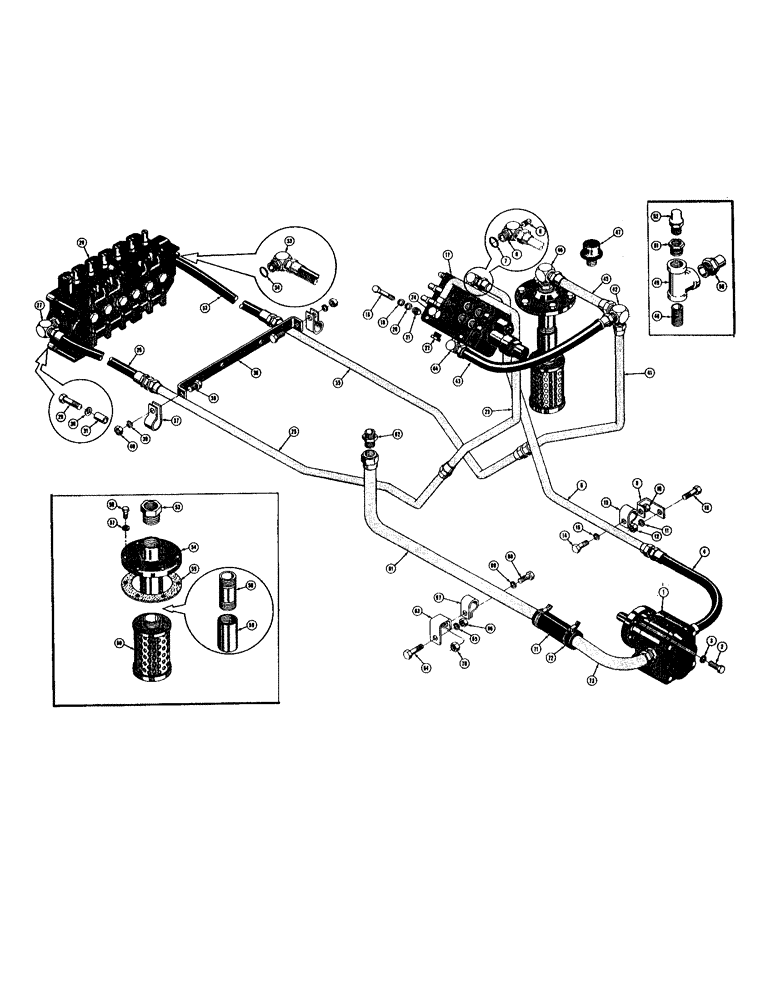

Запчасти Case 420B (164) - BACKHOE PRIMARY HYDRAULIC SYSTEM (07) - HYDRAULIC SYSTEM

1

D25347

PUMP, HYDRAULIC

PUMP - hydraulic, 20 G.P.M. (See figure 76 for breakdown)

1шт.

2

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

3

92-6

LOCK WASHER,3/8"

4шт.

4

D25130

HOSE - pressure line, pump to valve inlet (Front section) (3/4" I.D. x 1-5/32" O.D. x 14")

1шт.

218-5009

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

5

D25158

TUBE - pressure line, pump to valve (Rear section)

1шт.

6

D26683

TEE - service (3/4 JIC x 1 JIC x 1/4 NPT)

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal

1шт.

8

221-2

DRAIN PLUG,Sq Hd, 1/4"-18 NPTF

PLUG - pipe (1/4 NPT sq. hd.)

1шт.

9

37753

BUSHING

BRACKET - tube clamp (Mounts to cylinder bracket bolts on dozer models)

1шт.

10

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

11

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12

25-1010

NUT,5/8"-11, G5

1шт.

13

D25157

CLAMP - tube

1шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

15

92-5

LOCK WASHER,5/16"

1шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

17

D26491

VALVE - control (See figure 86 for breakdown)

1шт.

18

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

19

92-6

LOCK WASHER,3/8"

3шт.

20

95-6

WASHER,3/8"

- plain (3/8)

3шт.

21

25-146

JAM NUT,Jam, 3/8"-16, G5

- hex. jam (3/8 - 16 NC)

3шт.

22

D25783

PLUG - pipe, hex. hd. (3/4 JIC)

1шт.

D26435

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

23

D25162

TUBE - pressure line, front mounted control valve to backhoe control valve (Front section)

1шт.

24

D25135

X

ELBOW - adjustable 90 degrees male (3/4 JIC x 1 JIC)

1шт.

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

25

D25160

TUBE - pressure line, front mounted control valve to backhoe control valve (Center section)

1шт.

26

D25151

HOSE - pressure line, front mounted control valve to backhoe control valve (Rear section) (3/4" I.D. x 1-5/32" O.D. 27-1/2")

1шт.

27

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

adjustable, male (1 JIC x 1 JIC) 90º, 1 5/16"-12, 37º x 1 5/16"-12, O-Ring

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

28

D25678

VALVE - control, backhoe (Used on models having boom cylinder with 1-3/4" dia. piston rod) See figure 174 for breakdown (Use D27563)

1шт.

28

D25678

VALVE - control, backhoe (Used on models having boom cylinder with 1-3/4" dia. piston rod) See figure 174 for breakdown (Use D27563)

1шт.

D27563

LOCK VALVE

VALVE - control, backhoe (Used on models having boom cylinder with 2" dia. piston rod) See figure 174 for breakdown

1шт.

29

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

3шт.

30

92-8

LOCK WASHER,1/2"

3шт.

95-8

WASHER,1/2"

- plain, Not shown 1/2"

2шт.

31

D26404

SPACER - valve

3шт.

32

D27061

HOSE - return line, backhoe control valve to lateral tee (Rear section) (3/4" I.D. x 1-1/32" O.D. x 27-1/2")

1шт.

33

D26463

FITTING

ELBOW - adjustable 90 degrees female (1 JIC x 3/4 NPT)

1шт.

34

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal

1шт.

35

D25142

TUBE - return line, backhoe control valve to lateral tee (Center section)

1шт.

36

D26120

BRACKET - tube clamp

1шт.

37

D25157

CLAMP - tube

2шт.

38

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

39

92-5

LOCK WASHER,5/16"

2шт.

40

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

41

D25140

TUBE - return line, backhoe control valve to lateral tee (Front section)

1шт.

42

D26121

TEE - lateral (1 JIC)

1шт.

43

D28123

HOSE - return line, front mounted control valve to control tee (3/4" I.D. x 1-1/4" O.D. x 18-1/4")

1шт.

44

D25354

ELBOW

- adjustable 90 degrees female (1 JIC x 3/4 NPT)

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

45

D25189

TUBE - return line, lateral, Serial Range: tee-reservoir

1шт.

46

218-496

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 3/4" - 14 Male NPTF

- 90 degrees male (3/4 NPT x 3/4 JIC)

1шт.

47

31543

BREATHER

FILTER - breather, reservoir (Use D11183)

1шт.

D11183

FILTER - breather, reservoir

1шт.

48

221-131

PIPE,Nipple, 1/4" NPT x 1"

NIPPLE - close pipe (1/4 NPT x 1)

1шт.

49

221-431

TEE

- pipe (1/4 NPT x 1/4 NPT x 3/8 NPT)

1шт.

50

R15538

VALVE

BREATHER - air inlet

1шт.

51

221-51

SUN VISOR,Hex, 1/4" x 1/8" NPT

BUSHING - hex. pipe (1/4 NPT x 1/8 NPT)

1шт.

52

R15536

VALVE

- relief, reservoir oil pressure

1шт.

53

221-69

BUSHING

- hex. pipe, filter inlet (1-1/4 NPT x 3/4 NPT)

1шт.

54

38266

ARM

CAP - oil filter inlet (Use D26685)

1шт.

D26685

CAP - oil filter inlet

1шт.

55

36321

GASKET

- oil filter inlet cap

1шт.

56

14-616

BOLT,Hex, 3/8" - 24 x 1", Gr 5

HHCS - 3/8 - 24 NF x 1

6шт.

57

92-6

LOCK WASHER,3/8"

6шт.

58

221-264

PIPE,Nipple, 1 1/4" NPT x 3"

NIPPLE - pipe (1-1/4 NPT x 3) Use D26685

1шт.

59

221-332

COUPLING - pipe (1-1/4 NPT) Use D26685

1шт.

60

D25664

FILTER CARTRIDGE

FILTER - hydraulic oil

1шт.

61

D25155

TUBE - return line, reservoir to pump (Rear section)

1шт.

62

218-449

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/4" - 11-1/2 Male NPTF

CONNECTOR - male (1-1/4 JIC x 1-1/4 NPT)

1шт.

63

37753

BUSHING

BRACKET - tube clamp (Mount to cylinder bracket bolts on dozer models)

1шт.

64

13-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5, Full Thd

1шт.

65

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

66

25-1010

NUT,5/8"-11, G5

1шт.

67

D25156

CLAMP

- tube

1шт.

68

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

69

92-5

LOCK WASHER,5/16"

1шт.

70

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

1шт.

71

D23645

HOSE

- return line, reservoir to pump (Center section) (1-1/4" I.D. x 2" O.D. x 5")

1шт.

72

214-258

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

2шт.

73

D25144

STEM - hose, return line (Reservoir to pump) Front section

1шт.

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.
