Запчасти Case 420B (146) - 38160 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

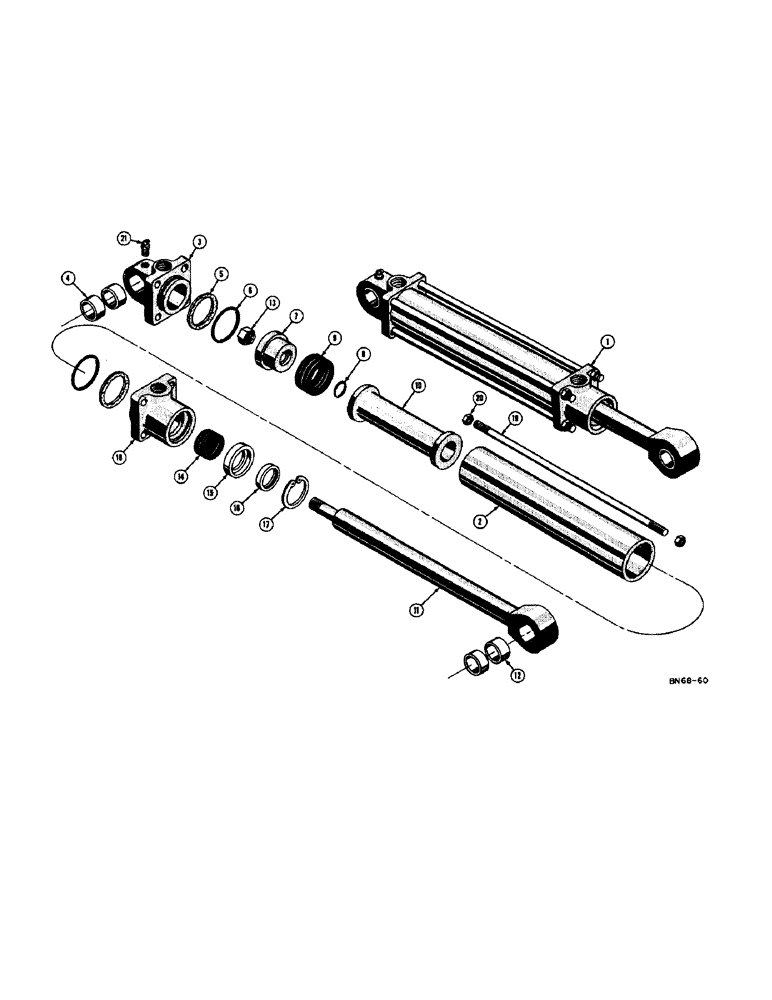

Схема запчастей Case 420B - (146) - 38160 HYDRAULIC TILT CYLINDER (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

38160

LINE

CYLINDER - dozer tilt, hydraulic

1шт.

2

38163

TUBE - cylinder

1шт.

3

D20038

END - cylinder

1шт.

4

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- cylinder end

2шт.

5

D24985

RING

- leather backup

2шт.

6

49382

GUARD,2.244" ID x 2 1" OD x 0.139"

"O" RING - seal

2шт.

7

D23738

BLOCK

PISTON - cylinder, small

1шт.

8

03522CK

"O" RING - seal

1шт.

9

17598

PACKING

- piston

1шт.

10

38165

PISTON - cylinder, large

1шт.

11

D20025

ROD - piston

1шт.

12

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

- piston rod

2шт.

13

D23739

LOCK NUT

NUT - lock (3/4 - 16 NF)

1шт.

14

17597

PACKING

- piston rod

1шт.

15

D23933

GLAND

- wiper ring

1шт.

16

D23962

SEAL

- wiper, piston rod

1шт.

17

49482

SNAP RING,2.125", Int, #212

Ring, Snap, 2.125", Int, #212

1шт.

18

30628

CAP - cylinder end

1шт.

19

38166

CAP COVER

ROD - tie

4шт.

20

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock (1/2 - 20 NF)

8шт.

21

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - 67-1/2 degrees grease, 1/8 NPT (Lincoln #5300)

1шт.

Выбрано товаров: 21
