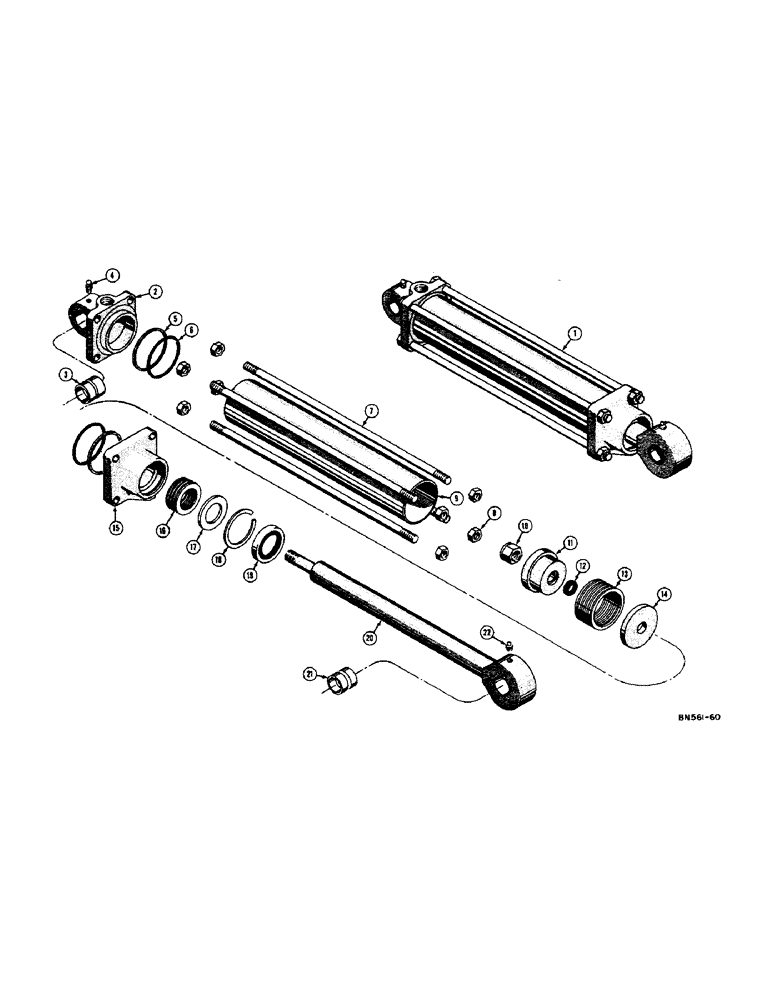

Запчасти Case 420B (146[1]) - 37392 HYDRAULIC DOZER ANGLING CYLINDER (07) - HYDRAULIC SYSTEM

1

37932

CYLINDER - dozer angling, hydraulic

2шт.

2

D20054

END - cylinder

1шт.

3

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- cylinder end

2шт.

4

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.

5

D24987

RING

- leather backup

2шт.

6

49381

O-RING,3.249" ID x 3 1" OD x 0.139"

"O" RING - seal

2шт.

7

37928

ROD - tie

4шт.

8

230-4618

LOCK NUT,1/2"-20, GA

NUT - lock (1/2 - 20 NF)

8шт.

9

37931

TUBE - cylinder

1шт.

10

D23688

X

NUT - lock (1 - 14 NF)

1шт.

11

D23736

PISTON - cylinder

1шт.

12

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - seal

1шт.

13

17578

PACKING

- piston

1шт.

14

NLS

NO LONGER SERVICED

WASHER - piston packing

1шт.

15

D25596

CAP - end, cylinder

1шт.

16

30568

PACKING

- piston rod

1шт.

17

D25043

WASHER

- packing, piston rod

1шт.

18

70742

WASHER

2.50", Int, #250, packing washer, piston rod

1шт.

19

30574

WIPER SEAL

SEAL - wiper, piston rod

1шт.

20

D20023

ROD - piston

1шт.

21

30613

BUSHING,38.33mm ID x 44.45mm OD x 17.6mm L

- piston rod

2шт.

22

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

1шт.
