Запчасти Case 420B (136) - HYDRAULIC CROWN TILT BULLDOZER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

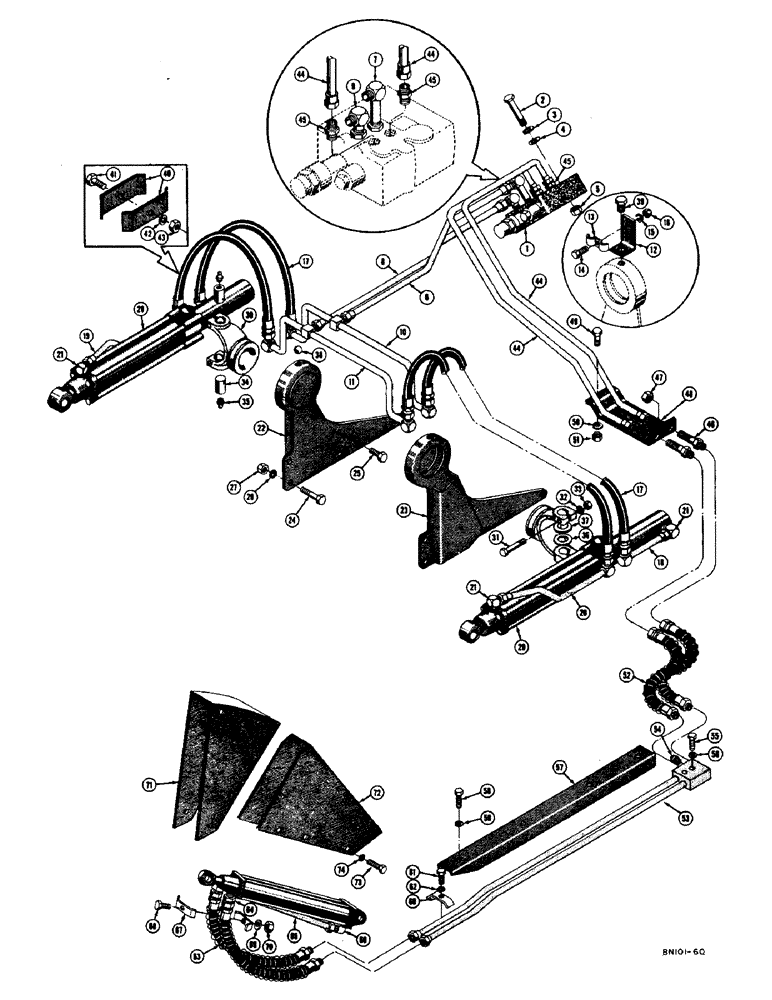

Схема запчастей Case 420B - (136) - HYDRAULIC CROWN TILT BULLDOZER HYDRAULICS, LIFT CYLINDER HYDRAULICS (07) - HYDRAULIC SYSTEM

Артикул

Название

Примечание

Количество

1

D25451

VALVE - control (See figure 78 for breakdown)

1шт.

2

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

3

92-6

LOCK WASHER,3/8"

3шт.

4

95-6

WASHER,3/8"

- plain (3/8)

3шт.

5

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

6

D25673

TUBE - control valve right rear port to rear manifold tube

1шт.

7

D25698

X

ELBOW - adjustable 90 degrees male, extra long (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

8

D25675

TUBE - control valve right front port to front manifold tube

1шт.

9

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

10

D25591

TUBE - manifold, rear (Used up to serial #4038684)

1шт.

D26793

TUBE - manifold, rear (Used from serial #4038684)

1шт.

11

D25576

TUBE - manifold, front (Used up to serial #4038684)

1шт.

D26794

TUBE - manifold, front (Used from serial #4038684)

1шт.

12

D25738

BRACKET - tube clamp (Mounted to outer race trunnion plug)

2шт.

13

17179

CLAMP - tube

2шт.

14

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

15

92-5

LOCK WASHER,5/16"

2шт.

16

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

17

D25670

FLEXIBLE HOSE

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") Used up to serial #4038684

4шт.

D26792

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") Used from serial #4038684

4шт.

18

D25775

TUBE - hose to rear lift cylinder port

2шт.

19

D25777

TUBE - hose to R.H. lift cylinder front port

1шт.

20

D25778

TUBE - hose to L.H. lift cylinder rear port

1шт.

21

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (1/2 NPT x 5/8 JIC)

4шт.

22

D24502

BRACKET - cylinder, R.H.

1шт.

23

D24501

BRACKET - cylinder, L.H.

1шт.

24

13-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

2шт.

25

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

8шт.

26

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

10шт.

27

25-1010

NUT,5/8"-11, G5

10шт.

28

D25700

CYLINDER - hydraulic, dozer lift (R.H.) See figure 132 for breakdown

1шт.

29

D25699

CYLINDER - hydraulic, dozer lift (L.H.) See figure 132 for breakdown

1шт.

30

D24497

TRUNNION

- inner race

2шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000) Not shown

2шт.

31

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

HHCS - 3/8 - 16 NC x 3

4шт.

32

92-6

LOCK WASHER,3/8"

4шт.

33

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

4шт.

34

D24508

PIN,31.74mm OD x 50.8mm L

- mounting, Serial Range: cylinder-trunnion

4шт.

35

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - straight grease, 1/8 NPT (Lincoln #5000)

4шт.

36

D24516

WASHER

- thrust, bottom (1-9/32" I.D. x 2-1/4" O.D. x 3/16" thick)

2шт.

37

32625

WASHER - thrust, top (1-9/32" I.D. x 2-1/2" O.D. x 11/64" thick)

2шт.

38

VT3268

BALL - steel (3/4" dia.)

38шт.

39

D24506

PLUG

- special, outer race trunnion (3/8 JIC)

2шт.

40

31665

COLLAR CLAMP

PLATE - clamp

4шт.

41

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

42

92-5

LOCK WASHER,5/16"

2шт.

43

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

44

D25755

TUBE - left control valve ports to bulkhead unions, tilt cylinder hydraulics

2шт.

45

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

male (1/2 JIC x 5/8 JIC), tilt cylinder hydraulics 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown), tilt cylinder hydraulics

1шт.

46

50883

UNION - special bulkhead, tilt cylinder hydraulics

2шт.

47

25-1112

NUT,3/4"-16, G5

- hex. (3/4 - 16 NF), tilt cylinder hydraulics

2шт.

48

39046

GUARD - tubing, tilt cylinder hydraulics

1шт.

49

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

Tilt cylinder hydraulics Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

50

92-8

LOCK WASHER,1/2"

tilt cylinder hydraulics 1/2"

1шт.

51

25-108

NUT,1/2"-13, G5

- hex. (1/2 - 13 NC), tilt cylinder hydraulics

1шт.
