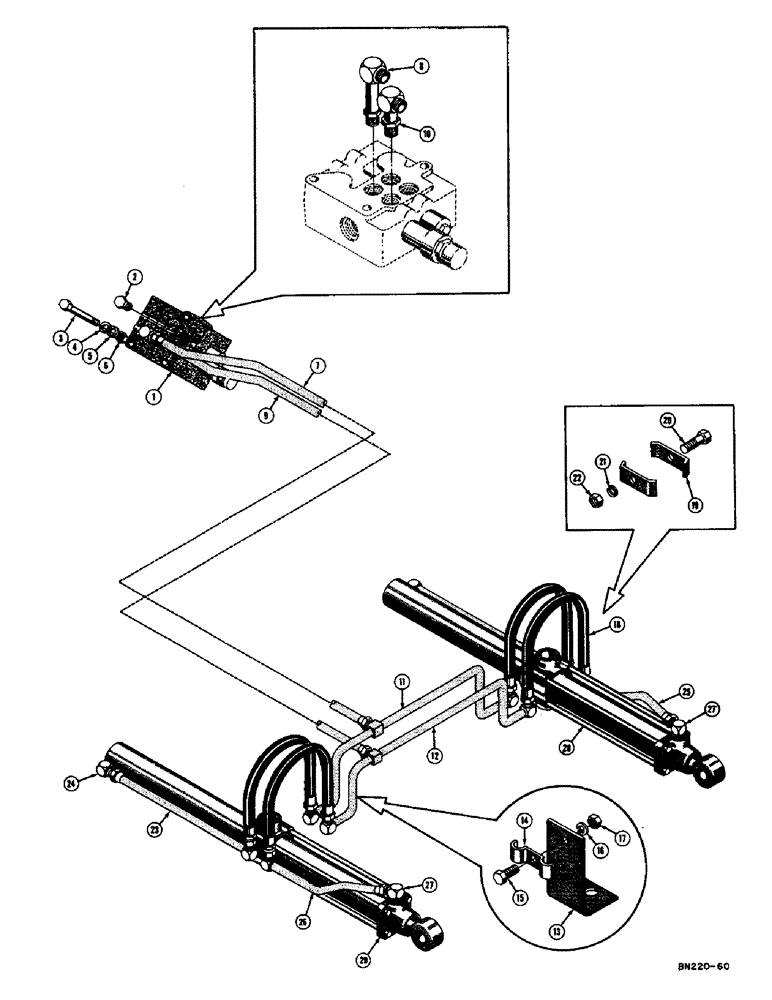

Запчасти Case 420B (130) - MECHANICAL DOZER HYDRAULICS (07) - HYDRAULIC SYSTEM

1

D25451

VALVE - hydraulic control (See figure 78 for breakdown)

1шт.

2

86512512

PLUG,7/8" - 14 ORB

Pipe, Control valve (5/8 JIC) Hex Hd, 7/8"-14 ORB

2шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

3

13-664

BOLT,Hex, 3/8" - 16 x 4", Gr 5

3шт.

4

95-6

WASHER,3/8"

- plain (3/8)

3шт.

5

92-6

LOCK WASHER,3/8"

3шт.

6

25-106

NUT,3/8"-16, G5

- hex. (3/8 - 16 NC)

3шт.

7

D25675

TUBE - right rear valve port to rear manifold tube

1шт.

8

D25698

X

ELBOW - adjustable 90 degrees male, extra long (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

9

D25673

TUBE - right front valve port to front manifold tube

1шт.

10

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable 90 degrees male (5/8 JIC)

1шт.

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - seal (Not shown)

1шт.

11

D25591

TUBE - manifold, rear (Used up to serial #4037853)

1шт.

D26793

TUBE - manifold, rear (Used from serial #4037853)

1шт.

12

D25576

TUBE - manifold, front (Used up to serial #4037853)

1шт.

D26794

TUBE - manifold, front (Used from serial #4037853)

1шт.

13

D25738

BRACKET - tube clamp

2шт.

14

17179

CLAMP - tube

2шт.

15

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

16

92-5

LOCK WASHER,5/16"

2шт.

17

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

18

D25670

FLEXIBLE HOSE

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") (Used up to serial #4037853)

4шт.

D26792

HOSE - manifold tube to lift cylinder (1/2" I.D. x 7/8" O.D. x 26") (Used from serial #4037853)

4шт.

19

31665

COLLAR CLAMP

PLATE - clamp

4шт.

20

13-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

HHCS - 5/16 - 18 NC x 1-3/4

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16 - 18 NC)

2шт.

23

D25574

TUBE - hose to rear cylinder port

2шт.

24

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (1/2 NPT x 5/8 JIC)

2шт.

25

D25572

TUBE - hose to front L.H. cylinder port

1шт.

26

D25570

TUBE

- hose to front R.H. cylinder port

1шт.

27

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degrees male (1/2 NPT x 5/8 JIC)

2шт.

28

D25936

CYLINDER - hydraulic dozer lift, L.H. (See figure 132 for breakdown)

1шт.

29

D25937

CYLINDER - hydraulic dozer lift, R.H. (See figure 132 for breakdown)

1шт.
